Verifying That You Hear Sound
Now let’s play back some sample data to verify that the connections and settings are correct.
921 edit
*
To prevent malfunction and/or speaker damage, make sure to minimize the volume on all your
equipment before you make connections .
Connecting Your Audio Playback System

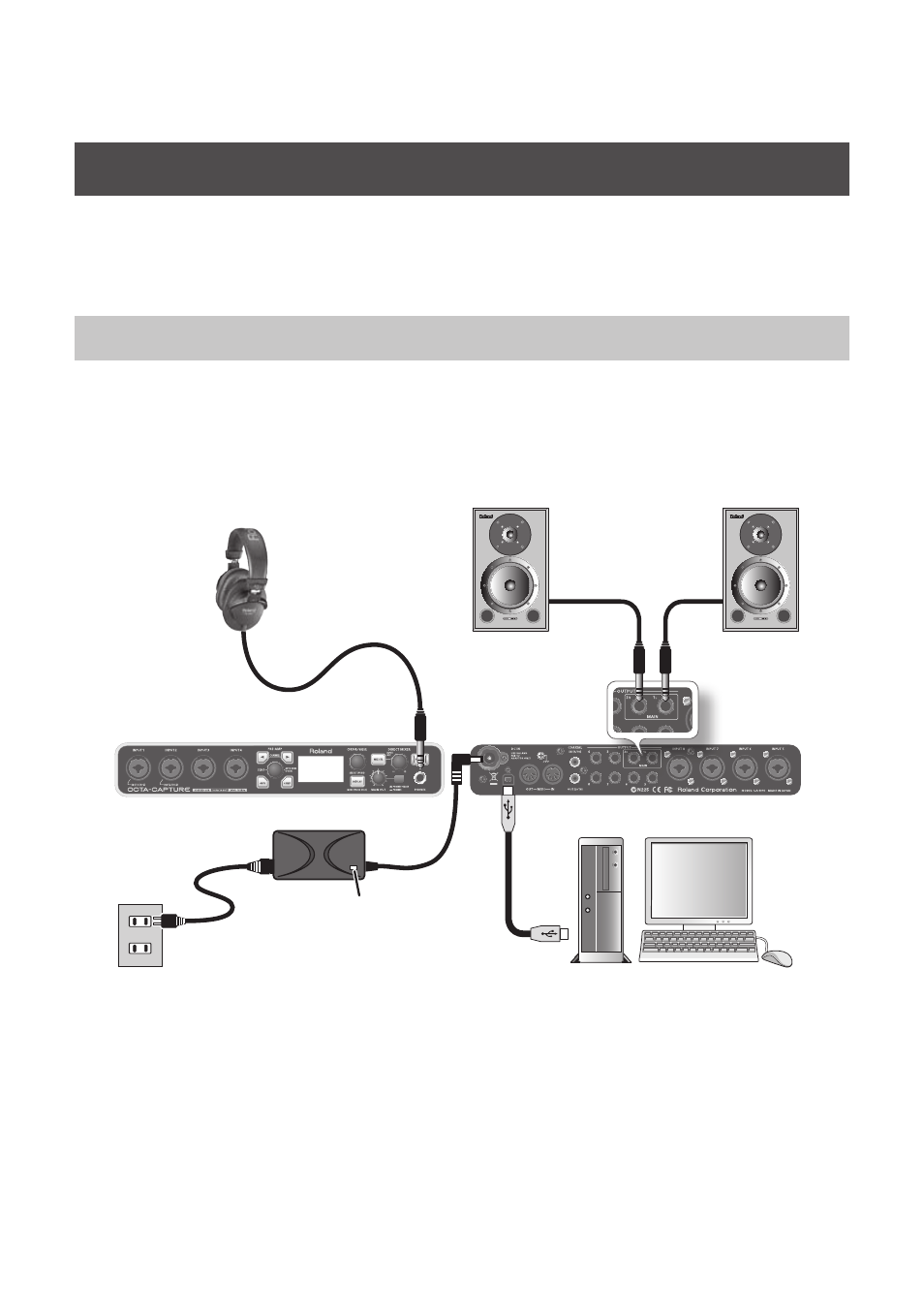

As shown in the illustration, connect your headphones or monitor speakers so that you can hear the
sound played back from the computer.
*
When you connect the OCTA-CAPTURE to your computer, sound will no longer be output from your computer’s
speakers or headphone jack .
Front panel
Rear panel
Amplified Speakers
Headphones
AC outlet
Indicator
Computer
AC adaptor
