18 Setting Up the Projector
Connecting Component Video Cables
If your video source has component video connectors, you can use
them to project a higher quality video image. However, you’ll need a
component video cable (D-sub 15-pin to 3BNC), which can be
purchased from EPSON (ELPKC19).
Before starting, make sure the projector and your DVD player or
other video device are turned off.
1. Connect the large end of the component video cable to the
projector’s Computer/Component Video port.
2. Insert the three ends of the component video cable into the R , G ,
and B ports on your video source.
3. Connect the RCA AV cable to the left and right Audio jacks on
the projector. (Match the red and white plugs to the red and
white jacks; you won’t need to use the yellow plug.)
4. Connect the plugs at the other end of the AV cable to the audio
output jacks on your video source.
5. After you turn on the projector, use the Video menu to set the
Input Signal to YCbCr or YPbPr . See page 74 for more
information.

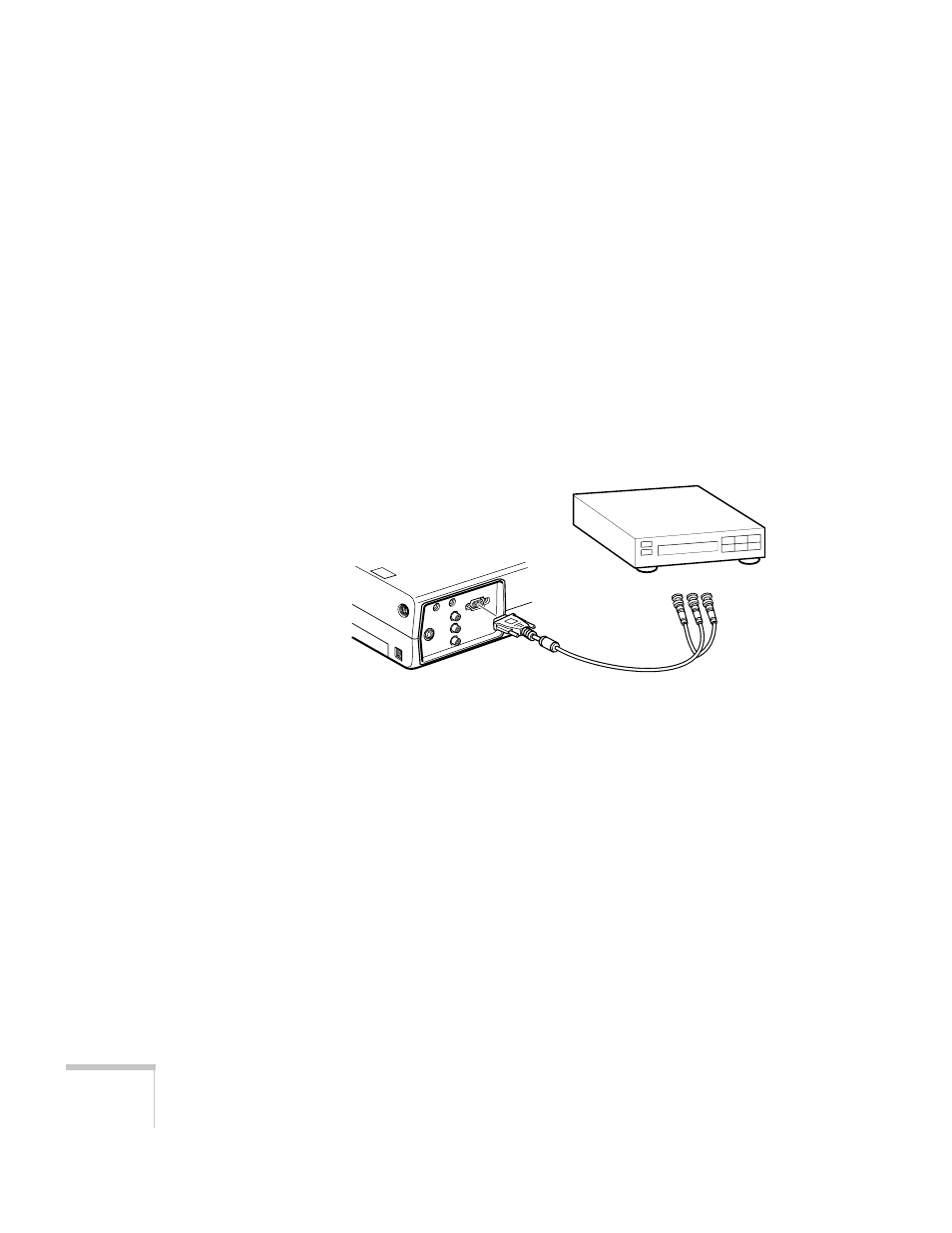

component
video cable
