67
5. OPERATION INSTRUCTION
5.1 Viewing

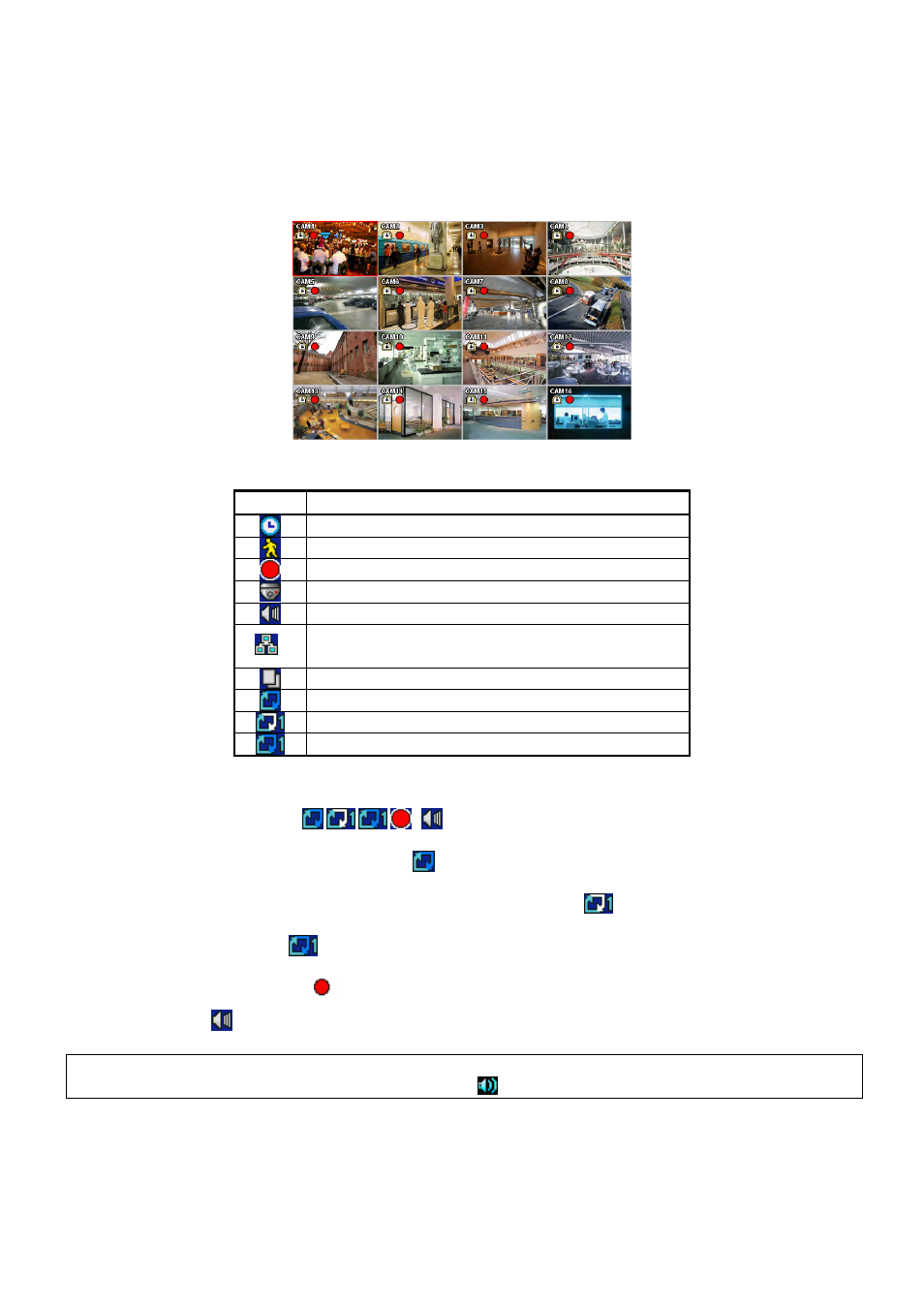

5.1.1 First Images
 Power on DVR and the following live video will appear, while viewing and recording at the same time.
 The screen will display date/time and icons below.
Icon Description
Continuous recording mode
Event recording mode (Alarm In/Motion)
In recording
PTZ registration/PTZ mode
In Audio recording
4 CMS Access Indication/No. of accesses (up to 4)
In channel sequencing
Setup in HDD Overwrite mode
Setup in HDD None Overwrite mode(recording)
Setup in HDD None Overwrite mode(HDD Full)
 On the right bottom side of the screen, disk usage will show by %.
 On the left low side of the screen, , , , , icon will show as the progress.
 At the normal state, HDD Overwrite mode is on and icon shows.
 When Overwrite mode is off (see 4.2.1 Information>Record>Overwrite Setting), will show. And when the disk becomes
full, the icon will be changed into .
 Click Emergency recording button, icon will show.
 Click Audio button, icon will show. And click channel button, then user can change only audio channel
(NOTE)
When front key does not work well, please check whether the audio icon is activated on the screen.
5.1.2 View Format
 The available view formats when the Main Monitor is in viewing mode include Full Screen, Split Screen, Channel
Sequencing Screen and PIP screen.
- Full Screen: Please press camera select key (1~16) to view the corresponding camera image in full view format.
