MINOURA LiveRide LR240 - Manual (Page 3)

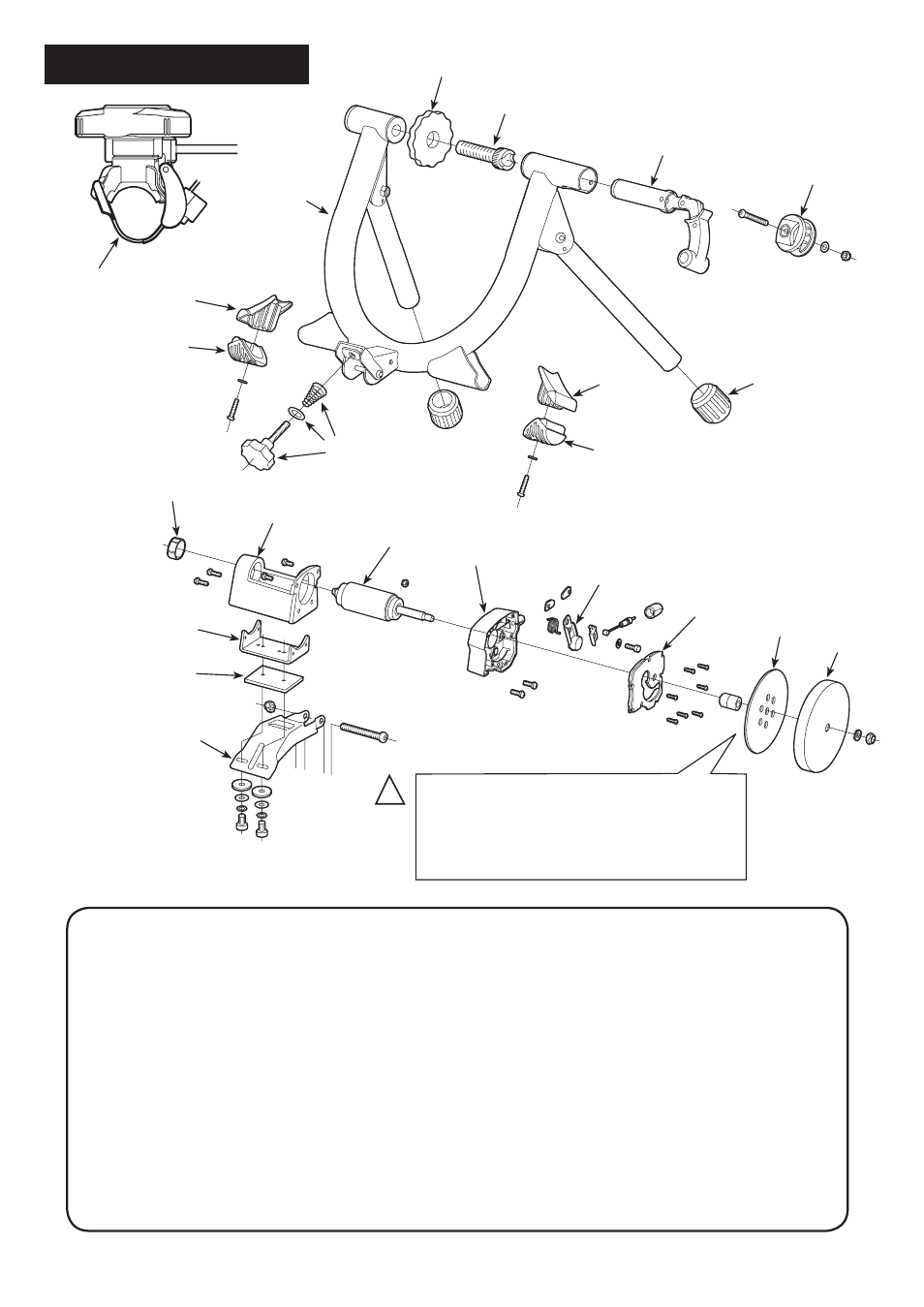

LR240 Schematics
- 3 -
UF-10
UF-8
UF-6
UF-7
M5-2 BF-4
BF-6
BF-8
BF-4
BF-6
GM-23
MF-3
GM-9
GM-7
GM-6
GM-4
GM-3
GM-2
GM-16
GM-10
GM-11
GM-12
GM-13
GM-5
{
BF-4: Leg Rubber Cover (Red) GM-4: Neodymium Magnet
BF-6: Leg Rubber GM-5: Main Housing
BF-8: M20 Main Frame (White) GM-6: Drive Roller, Axle & Bearings
UF-6: Right Side Coupling & Clamp Lever GM-7: Drive Roller Holder
UF-7: Clamp Lever Guide GM-9: Axle End Cap
UF-8: Left Side Coupling (for Q/R Lever) GM-10: Mag Unit Fitting Bracket
UF-10: Coupling Lock Nut (Alloy) GM-11: Rubber Shim
M5-2: Rubber Foot Cap (29mm) GM-12: Mount Base
MF-3: Roller Pressure Adjust Knob Set GM-13: Rubber Washer & Bolt Set
GM-2: Alloy Rotor GM-16: Flywheel (1.5kg)
GM-3: Housing Cover GM-23: Remote Shifter (White)
!
< CAUTION >
Do NOT touch GM-2 "Alloy Rotor"
during and 15 minutes after workout.
It is VERY HOT.
