52 Replacing the Photo Cartridge
L Proof Sign-off:
H. Yamasaki CRE Nakano
M. Otsuka
editor name R4CF95P
SHORT.bk
Rev. D
INK.FM A5 size
2/15/05

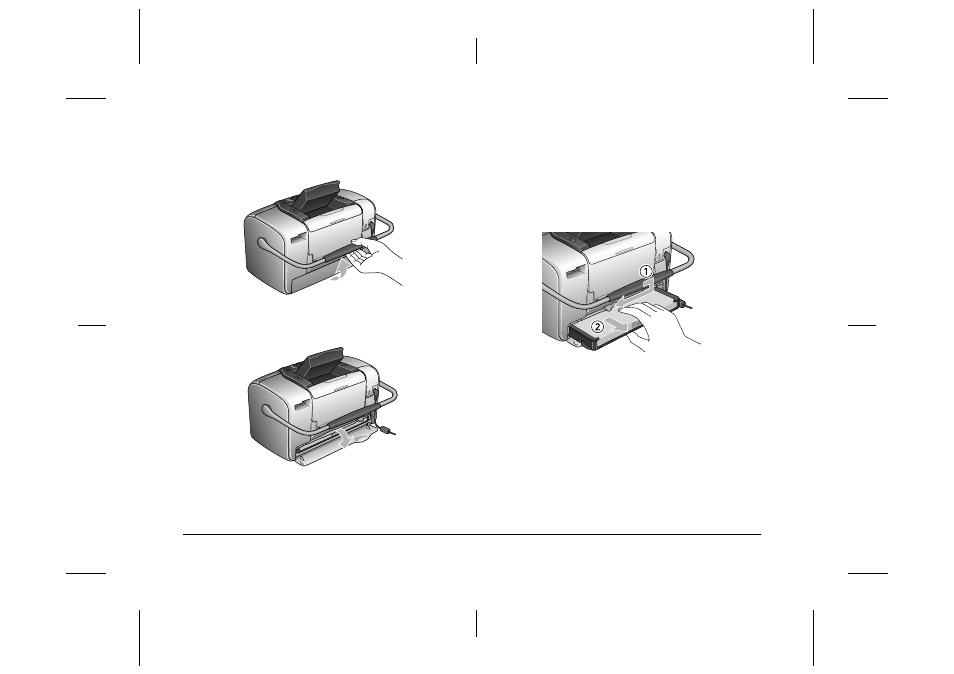

4. Move the handle to the cartridge replacement
position.
5. Open the cartridge compartment cover on the
back of the printer.
6. Set the cartridge lock lever in the Release
position by sliding the lever to the right, then
down and to the left. The photo cartridge will be
ejected about halfway out of the holder. Pull the
cartridge out of the printer and dispose of it
properly.
Note:
❏ Do not take the used cartridge apart or try to refill
it. Do not shake the used photo cartridge;
otherwise, it may leak.
❏ The photo cartridge must be replaced when any
one of the colors is depleted. The rate that a specific
color of ink is consumed depends on the images
printed.
