Configuring the Relays
Configuring the Relays

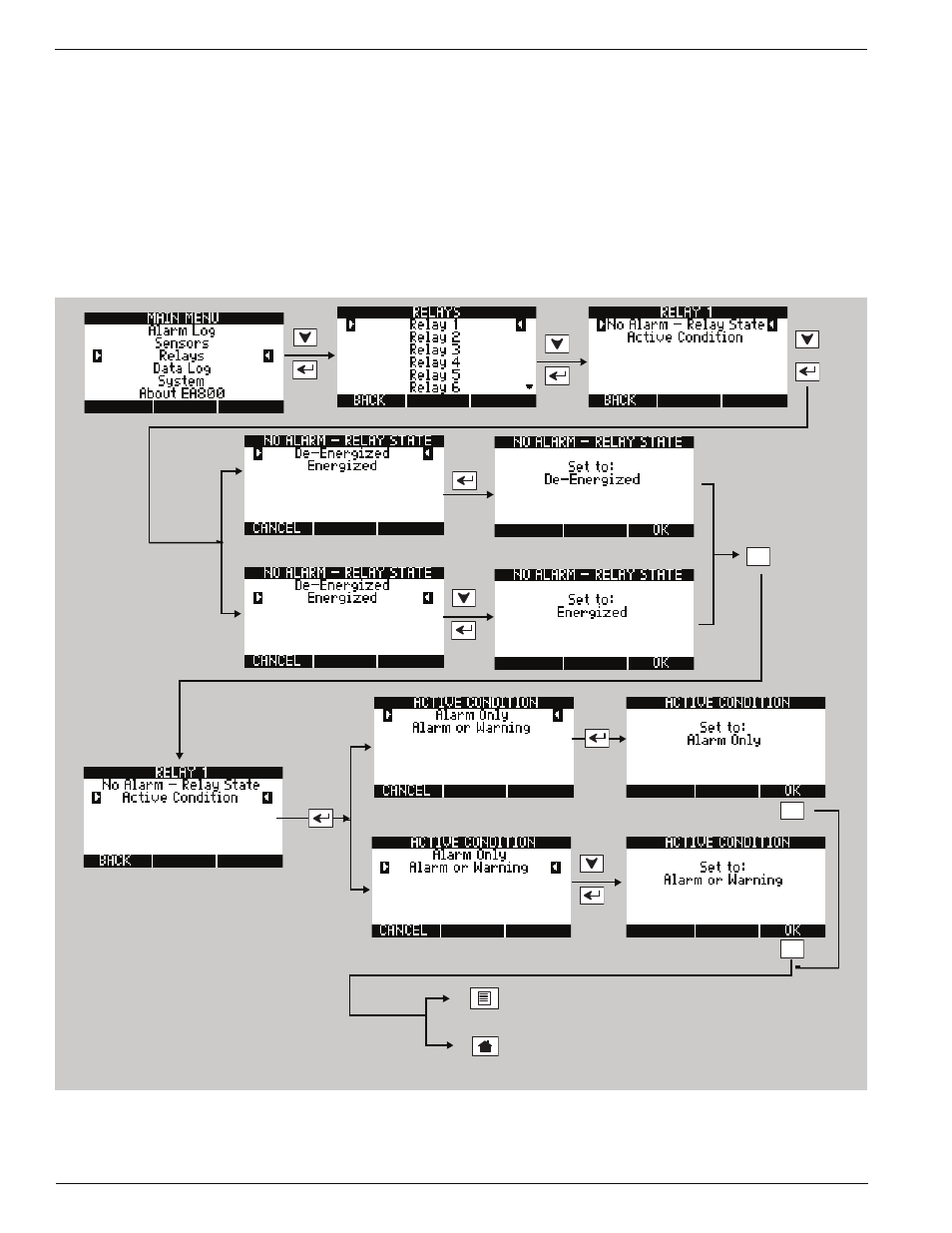

When all sensors have been added, you must configure the relays so that the outputs indicate the monitored
conditions correctly. Perform the following procedure to configure all relays used:
Note: The default relay settings are:
• Relays 1-8 (Active Condition = Alarm Only);
• Aux Relay (Active Condition = Alarm or Warning);
• All Relays (No Alarm - Relay State = De-Energized)
If these defaults are acceptable, it is not necessary to configure the relays.
OR
F3
OR
F3
OR
Repeat this procedure to configure the next relay.
Return to the Home screen when you have configured all
relays.
To create a backup copy of the complete configuration, see
“Saving Configuration Settings” on page 66.
F3
