Adding a Wireless Multi-Function Sensor Using a Wired Temperature Sensor
Wireless multi-function sensors are physically connected to wired sensors located elsewhere and provide a
transmitter to send the signals monitored by the wired sensor to the base unit. To add a wireless multi-function
sensor, do the following:
1.
Unlock the base unit if necessary to continue programming. See “Accessing the MAIN MENU for
2.
Select

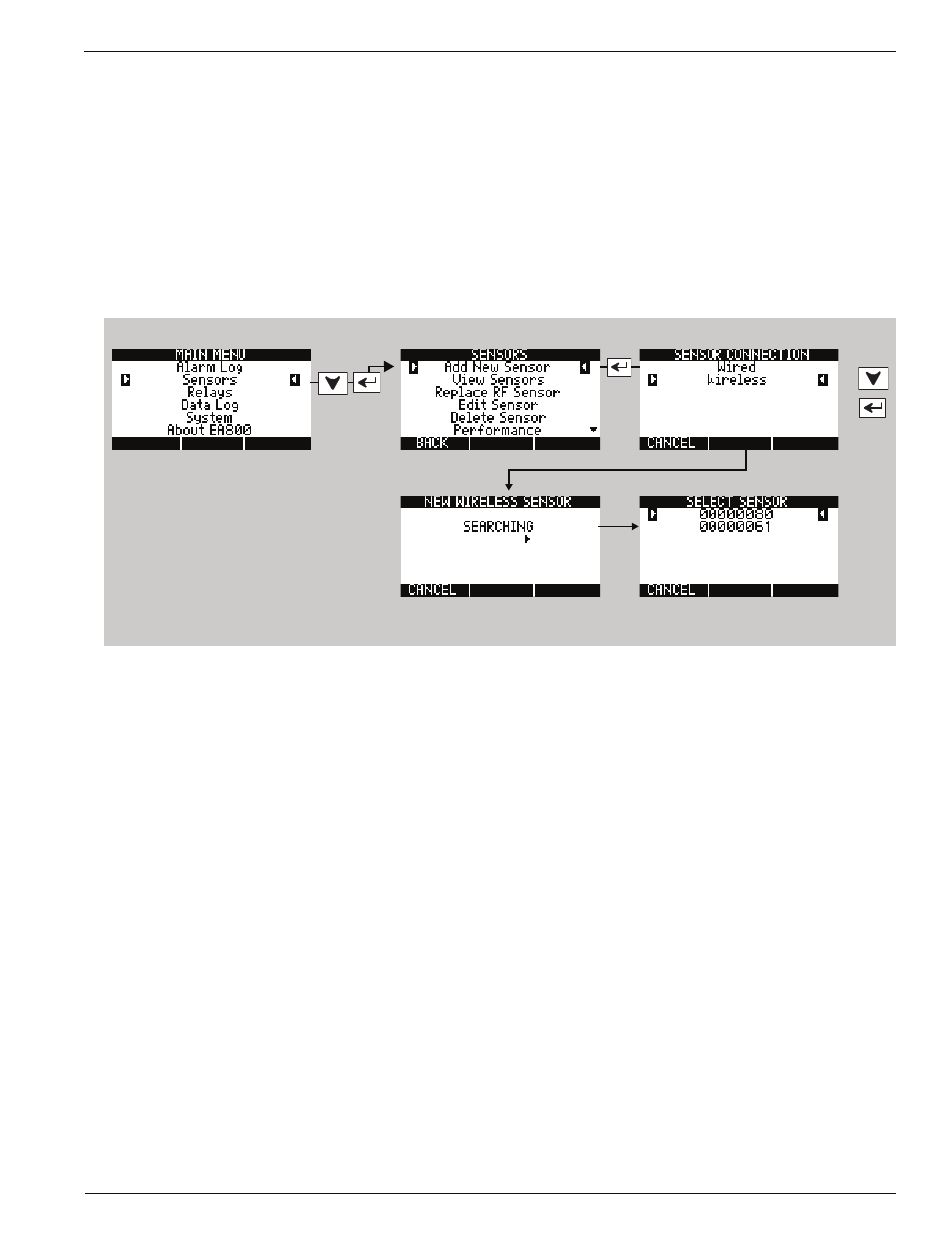

SENSORS from the MAIN MENU and follow the steps in the following diagram.
3.
After you press the ENTER key, the
NEW WIRELESS SENSOR screen is displayed. The EA800 searches for new
wireless sensors, indicated by an arrow that moves from left to right across the screen. When an available
wireless sensor has been detected, it is listed in the
SELECT SENSOR screen as shown below.
4.
Use the arrow keys to select the wireless multifunction sensor to be configured, then follow the prompts to
configure all screens for that sensor.
Follow the procedure shown on the next page to add a temperature sensor. The procedure shows a wired Blue
temperature sensor, but is applicable to the wired Red and White temperature sensors as well.
The Hysteresis setting helps prevent alarms from being set and reset continually if the environment is at or near
the alarm set point by providing an acceptable variance. For example, if
HYSTERESIS is set at 1 and the sensor High
Alarm Limit is set at +158, the sensor reading must decrease to +157 (+157 minus 1) in order for the temperature
alarm to reset to a no-alarm condition.
