Note: Verify that the wireless sensors can communicate with the base unit as outlined in the following proce-
dure before permanently mounting them.
1. Remove the cover from the wireless sensors and
record the MAC addresses (see Figure 12) of
each wireless sensor on the Configuration
Worksheet you completed during the preparation
phase. The MAC address is printed on a label
affixed to each wireless sensor’s printed circuit
board (PCB) and is used to identify each sensor
during programming.
2. Temporarily mount the front panel of the base
unit to the mounted rear panel.
3. Connect power to the EA800. The EA800
completes its boot process and the MONITORING
or NO SENSORS INSTALLED (if there are currently
no wireless sensors installed) screen is
displayed.
4. With the wireless sensors located near the base
unit, connect power to each wireless sensor.
5. Unlock the keypad and allow the base unit to detect the wireless sensors using the following procedure.
Note: The keypad locks automatically after 30 minutes of inactivity (no key presses). If you have not finished
the detection and programming process for a sensor and this occurs, entered values are lost and you
must start the programming procedure for the sensor from the beginning. It is recommended that you
allow the base unit to identify the wireless sensors one at a time, with the sensors unmounted and in the
same location as the base unit.
RESET BUTTON
SENSOR MODEL NO.
(Example: EA-WTS = Wireless Temperature Sensor)
MAC Address Label

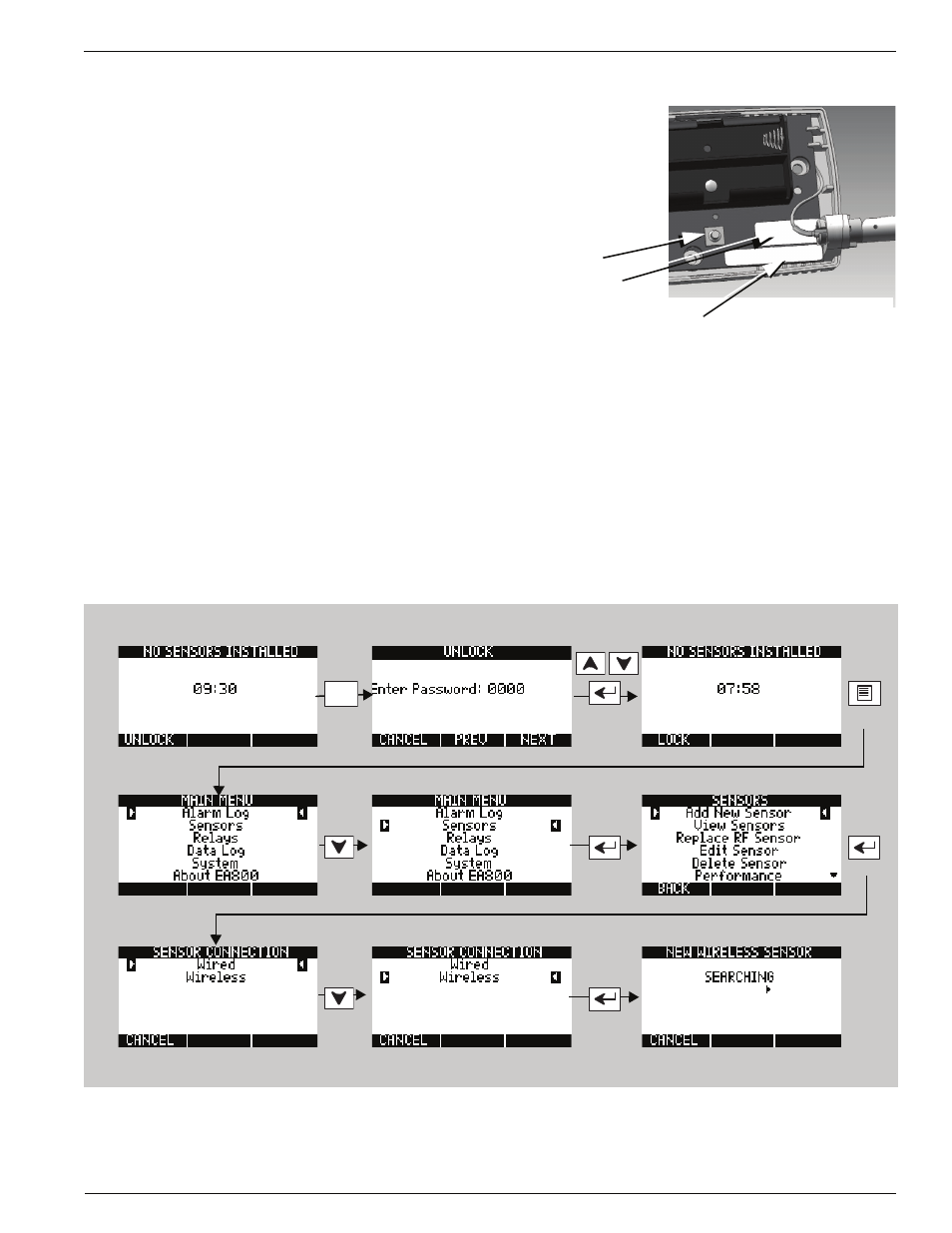

Figure 12 Wireless Sensor MAC Address Location
Enter
0800
F1
Example shown, set values as
appropriate for your system.
