Adding Wired Sensors
Adding a Wired Contact Closure Sensor

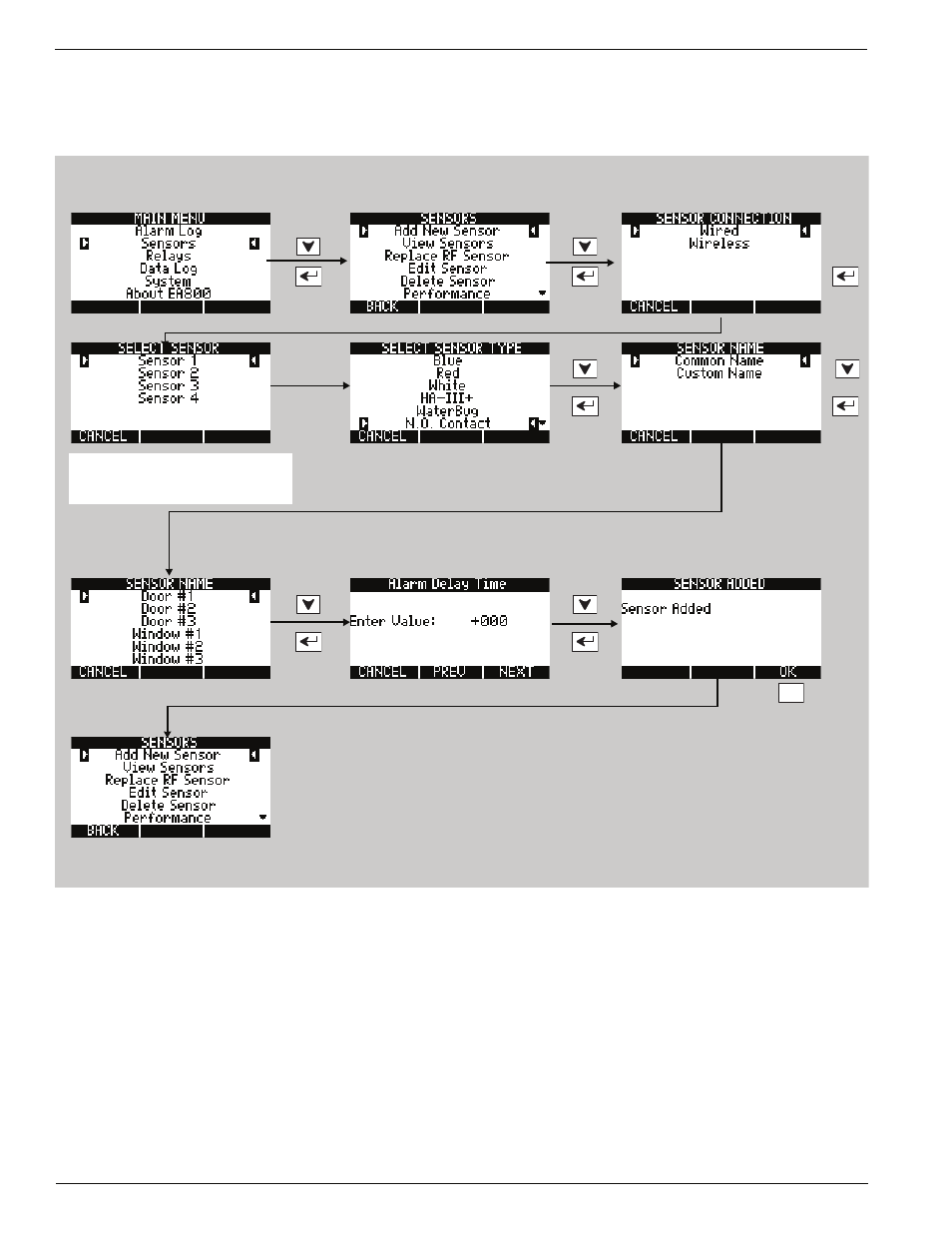

The following procedure shown adds a N.O. contact closure sensor but is the same for N.C. contact closure
sensor.
F3
This is the start screen for the next
sensor to be added, if any.
Select
N.O. Contact
or
N.C. Contact
as appropriate.
NOTE: The sensor number must
match the input number (J6 ) used by
the sensor or an alarm may result.
Example shown, set values as
appropriate for your system.
