Enviro EA800 User Manual
Page 23

Preparation
D-011-0152
19

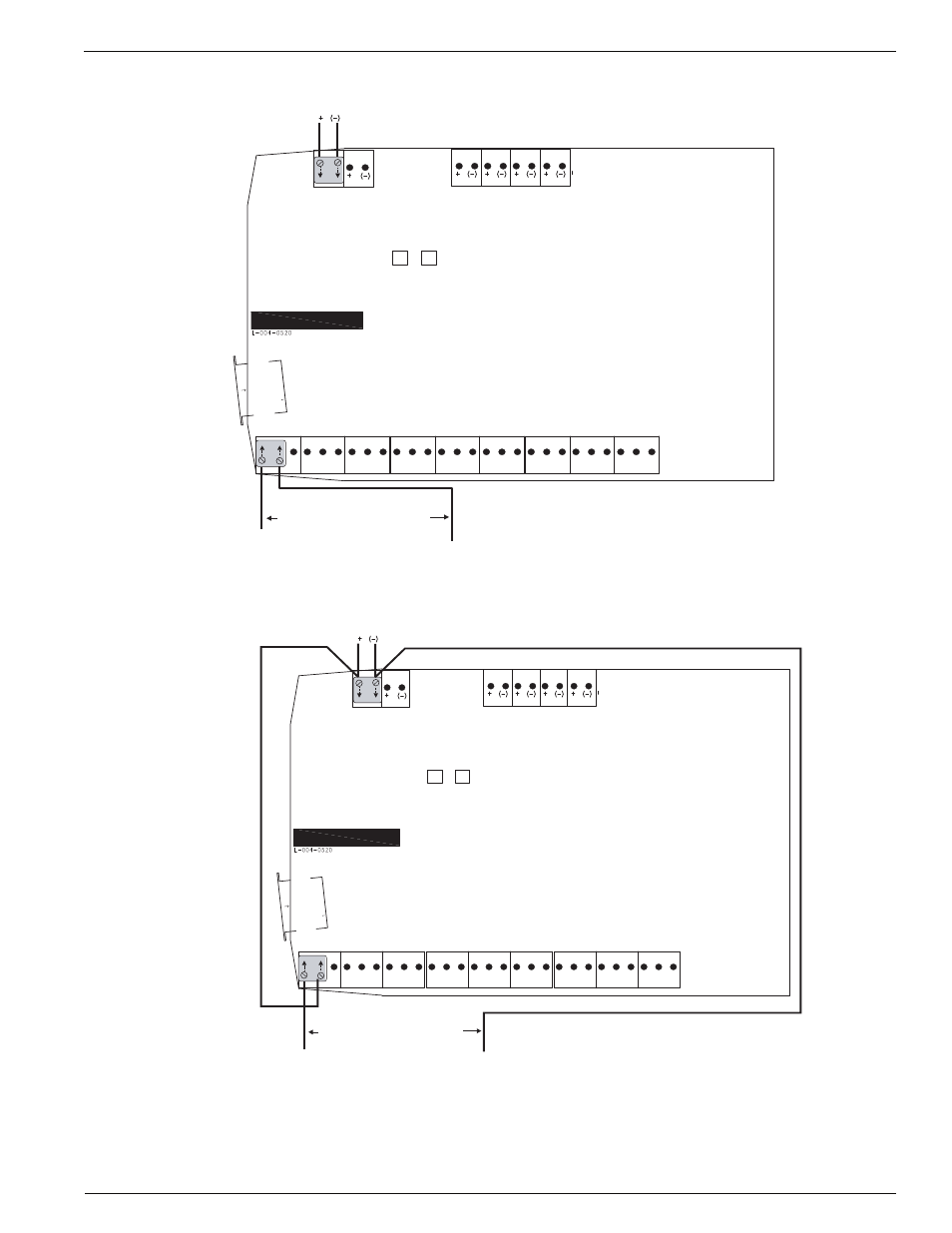

Figure 9 Typical Alarm Loop Wiring Configuration (External Power)
Figure 10 Typical Alarm Loop Wiring Configuration (Self-Powered)
Power
In
Aux
Power
Out
J6
J5
Input 1 Input 2 Input 3 Input 4
J13
J14
J2
J8 Output 1
Output 2
Output 3
Output 4
Output 5
Output 6
Output 7
Output 8
Aux
NO COM NC
NO COM NC
NO COM NC
NO COM NC
NO COM NC
NO COM NC
NO COM NC
NO COM NC
NO COM NC
From 11-26 VDC
power supply
To "alarm-on-closed"
loop circuit (power
supplied via loop)
Power
In
Aux
Power
Out
J6
J5
Input 1 Input 2 Input 3 Input 4
J13
J14
J2
J8 Output 1
Output 2
Output 3
Output 4
Output 5
Output 6
Output 7
Output 8
Aux
NO COM NC
NO COM NC
NO COM NC
NO COM NC
NO COM NC
NO COM NC
NO COM NC
NO COM NC
NO COM NC
From 11-26VDC
power supply
To "alarm-on-closed"
loop circuit (power
supplied via EA800)
To alarm +
To alarm -
