Adding Wireless Sensors
Adding a Wireless Multi-Function Sensor Using a Wired Contact Closure Sensor
Wireless multi-function sensors are physically connected to wired sensors located elsewhere and provide a
transmitter to send the signals monitored by the wired sensor to the base unit. To add a wireless multi-function
sensor, do the following:
1.
Unlock the base unit if necessary to continue programming. See “Accessing the MAIN MENU for
2.
Select

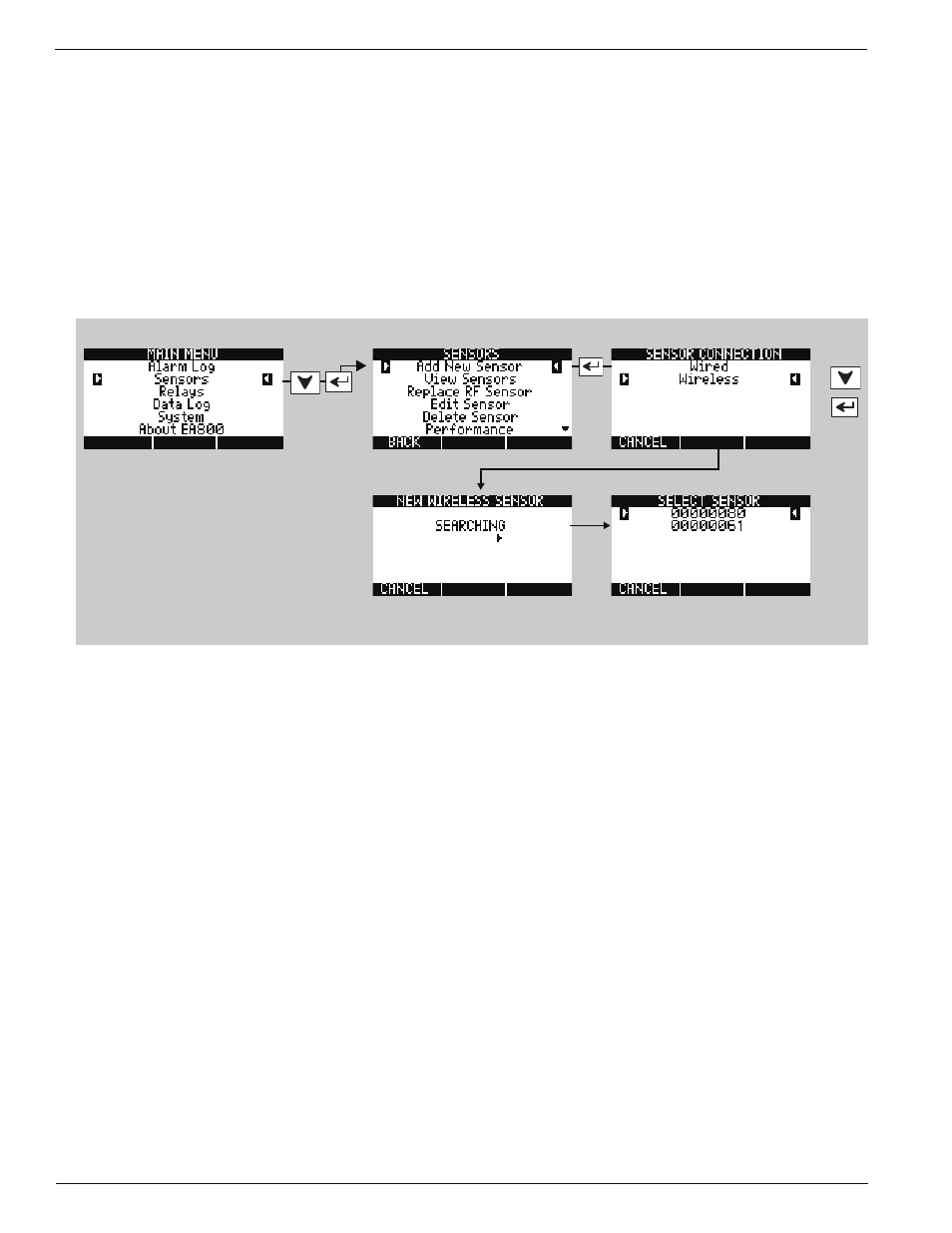

SENSORS from the MAIN MENU and follow the steps in the following diagram.
3.
After you press the ENTER key, the
NEW WIRELESS SENSOR screen is displayed. The EA800 searches for new
wireless sensors, indicated by an arrow that moves from left to right across the screen. When an available
wireless sensor has been detected, it is listed in the
SELECT SENSOR screen as shown below.
4.
Use the arrow keys to select the wireless multifunction sensor to be configured, then follow the prompts to
configure all screens for that sensor.
To add a wireless multi-function contact closure sensor to the system perform the following procedure. The
procedure shown is for a normally open (N.O.) contact closure sensor but is essentially the same for the N.C.
wireless contact closure sensor.
1.
Unlock the base unit if necessary to continue programming. See “Accessing the MAIN MENU for
2.
Select
SENSORS from the MAIN MENU and follow the steps in the following diagram.
3.
After you press the ENTER key, the
NEW WIRELESS SENSOR screen is displayed. The EA800 searches for new
wireless sensors, indicated by an arrow that moves from left to right across the screen. When an available
wireless sensor has been detected, it is listed in the
SELECT SENSOR screen as shown below.
4.
Use the arrow keys to select the sensor to be configured, then follow the prompts to configure all screens for
that sensor as shown in the following diagram.
