Page 16 Operating Instructions Powador-proLOG_EN
S e c t i o n 5 · I n s t a l l a t i o n

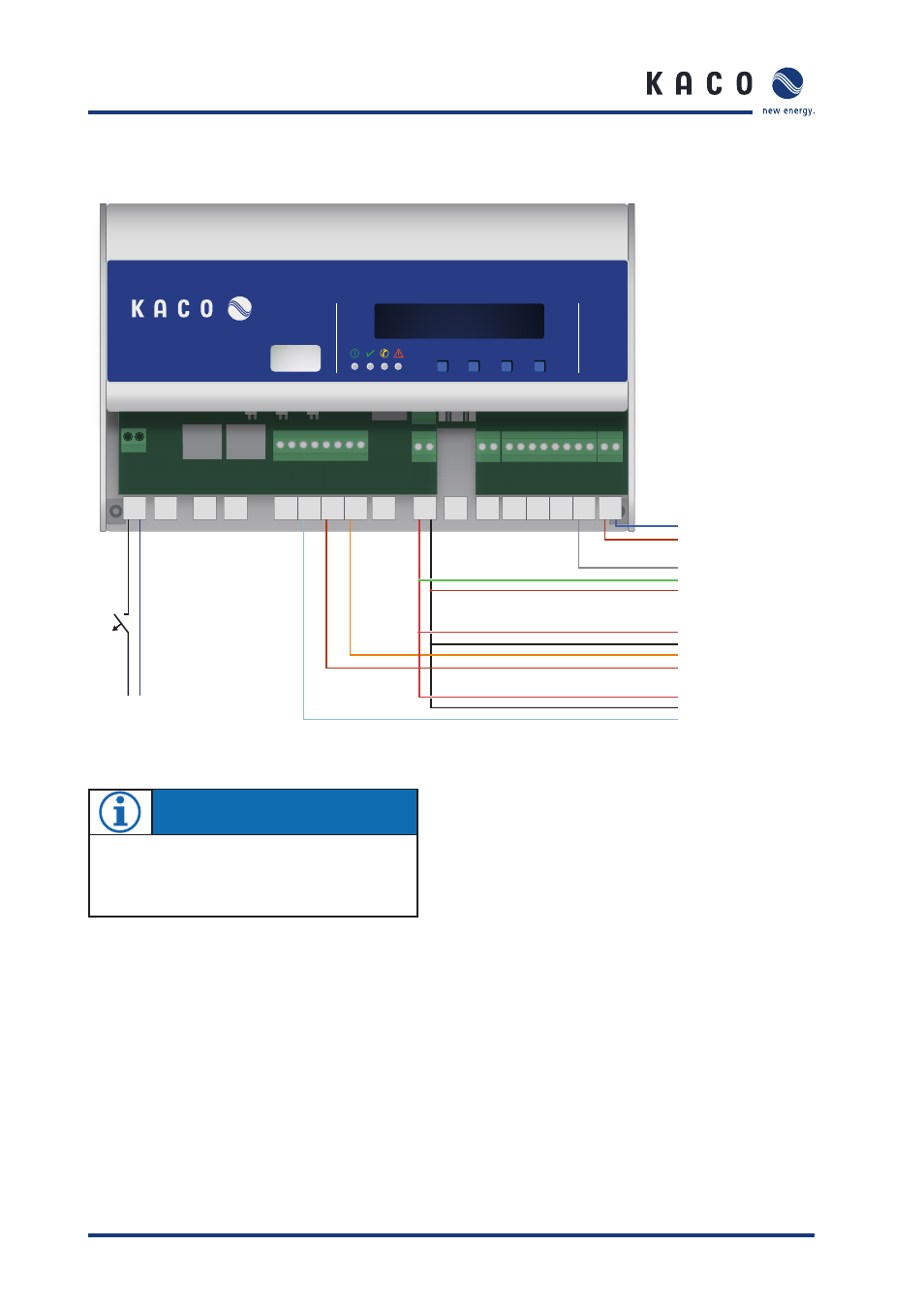

Connecting sensors and energy counters to the Powador-proLOG S/M/XL
Recommended cables
Cable assemblies are provided with all sensors. In the case of the PT1000 ambient temperature sensor, we recommend using cables of
the following type: LiYCY 2 x 2 x 0.5 mm². The maximum cable length of 100 m must not be exceeded.
POWADOR proLOG
MADE IN GERMANY
EXIT DOWN UP ENTER
Ethernet
GSM
ANT
ETH
Analoge Eingänge Powador-go Digitale Eingänge RS485 230V AC
GSM-
Antenne Digital
Ausgang
intern
Modem
AI 4
- +
AI 3
- +
AI 2
- +
AI 1
- +
24 V
- +
A B
N L
DI 4
- +
DI 3
- +
DI 2
- +
DI 1
- +
DI 0
- +
i s
Powador-view
- S0-Impuls (blau)
+ S0-Impuls (braun)
Zählersensor
Signal (weiss)
+ 24 V DC (grün)
- GND (braun)
Einstrahlungssensor mit
Modultemperaturfühler (Si12TC-T)
+ 24 V DC (rot)
- GND (schwarz)
Einstrahlung (orange)
Temperatur (braun)
Umgebungstemperatursensor
+ 24 V DC (rot)
- GND (schwarz)
Temperatur
Leitungs-
schutzschalter
B6 A
Powador-proLOG M
1x AI, 1x DI, 1x DO
Powador-proLOG XL
4x AI, 4x DI, 1x DO
Analoge Eingänge (AI)
0 … 10 V DC | PT1000
Digitale Eingänge (DI)
Optisch getrennt
Low: 0 … 7 V DC
High: 9 … 24 V DC
Digitaler Ausgang (DO)
S0 nach DIN 43 864
Konfiguration als Alarm- oder Impulsausgang (S0)
Modemtypen
Analog | ISDN | GSM/GPRS
N L
230 V AC
NOTE
Input AI1 is preconfi gured for connection of a solar sensor.
Digital input DI1 is preconfi gured for connection of a feed-
in meter.
Powador-proLOG M
1x AI, 1x DI, 1x DO
Powador-proLOG XL
4x AI, 4x DI, 1x DO
analogue inputs (AI)
0 … 10 V DC | PT1000
digital inputs (DI)
optically seperated
Low: 0 … 7 V DC
High: 9 … 24 V DC
digital output (DO)
S0 nach DIN 43 864
Confi guration as Alarm or pulse output (S0)
Modemtyp
Analog | ISDN | GSM/GPRS
breaker B6A
digital inputs
digital
output
GSM
antenna
analogue inputs
Powador view
- S0-Impuls(blue)
+ S0-Impulse (brown)
Counter sensor
Signal (white)
+ 24 V DC (green)
- GND (brown)
Irradiation and module temperature
sensors (SI12TC-T)
+ 24 V DC (red)
- GND (black)
irradiation (orange)
Temperature (brown)
Environmental „humidity“ sensor
+24 V DC (red)
- GND (black)
- Temperature
circuit
