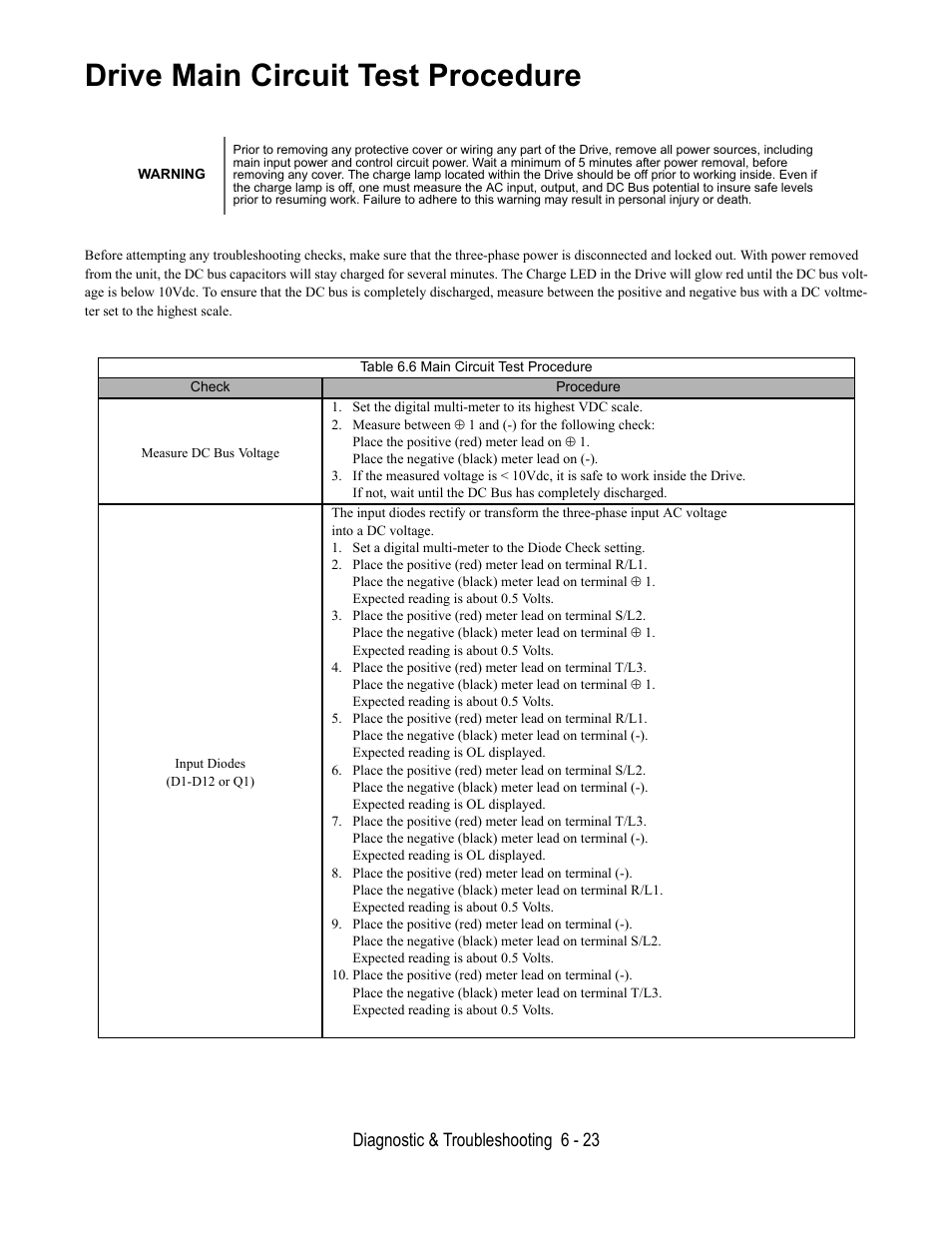

Drive main circuit test procedure, Table 6.6 main circuit test procedure, Measure dc bus voltage – Yaskawa E7B Drive Bypass User Manual
Page 203: Input diodes, D1-d12 or q1), Diagnostic & troubleshooting 6 - 23
