Control circuit terminal block functions, Refer to, Figure i.13 – Yaskawa iQpump Micro Quick Start User Manual

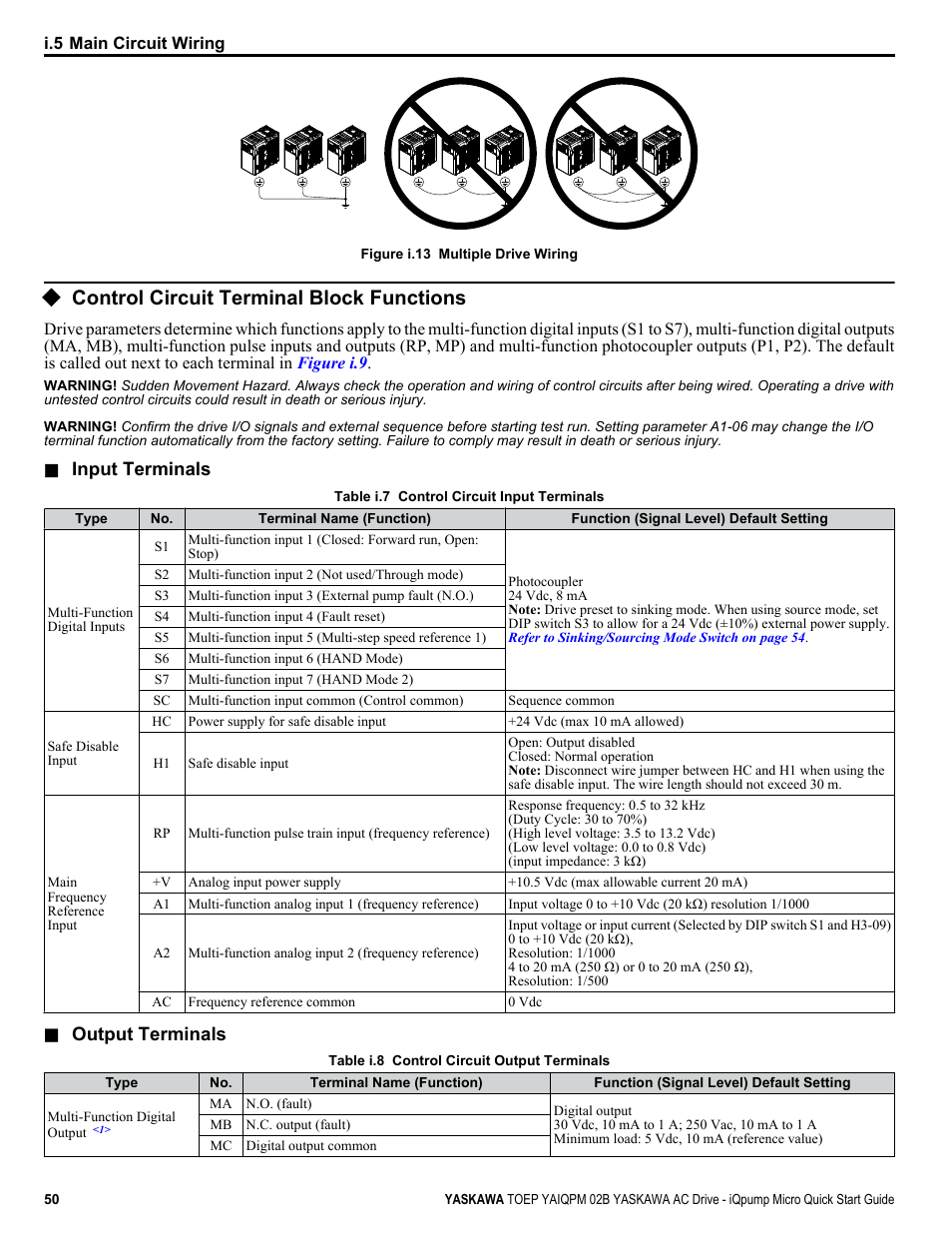

Page 50: Input terminals, Output terminals
