9 Recommissioning the Inverter
If you have disconnected the inverter from all voltage sources (e.g. for configuration purposes) and
want to recommission it, proceed as follows.
Requirements:
☐ The circuit breaker must be correctly rated.
☐ The inverter and the battery must be correctly mounted.
Procedure:
1. Connect the DC connectors to the inverter.
☑ The DC connectors snap into place.
2. Seal all unused DC inputs using the DC connectors with sealing plugs.
3. Ensure that all DC connectors are securely in place.

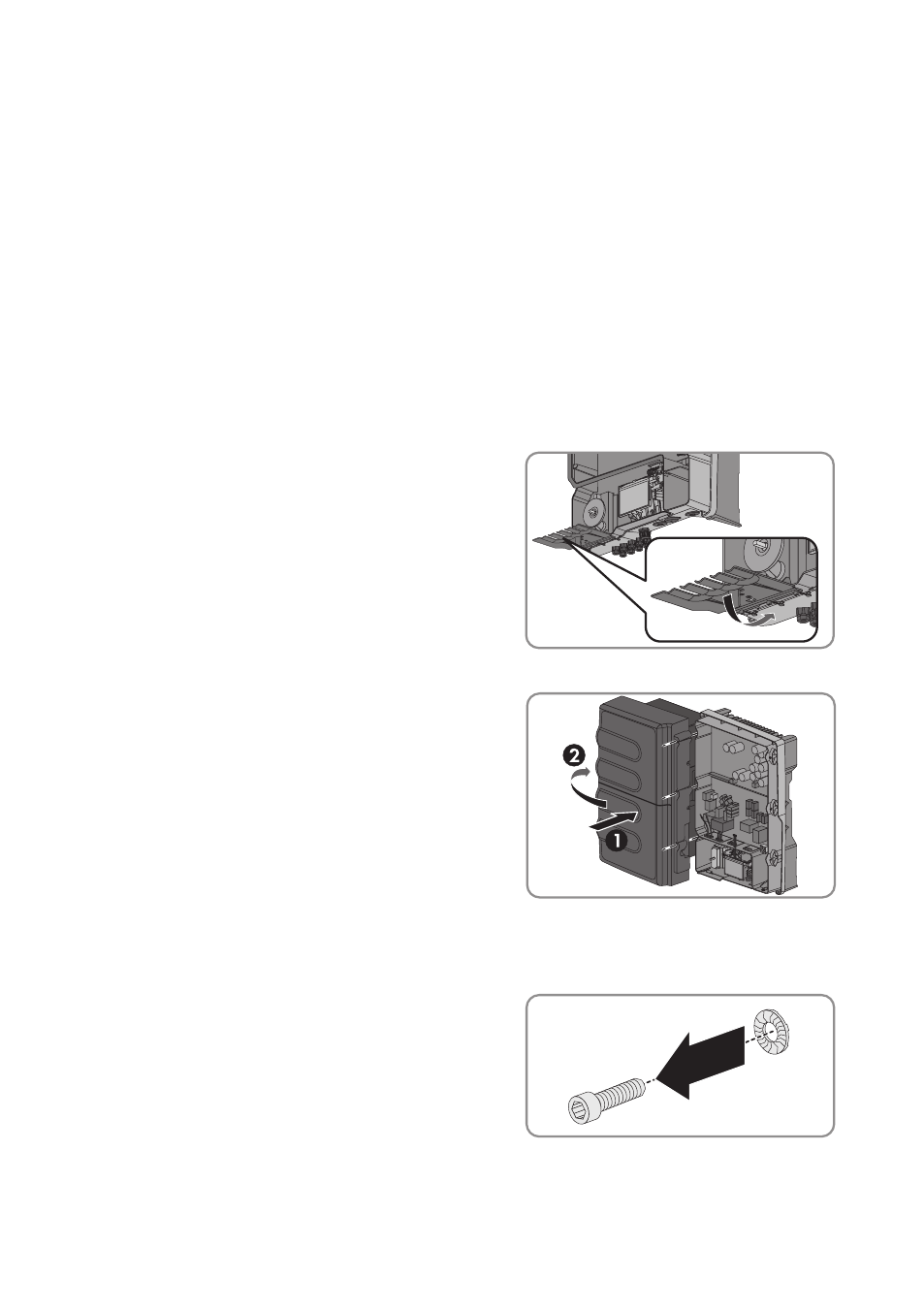

4. Flip the DC contact protection down until it
snaps into place.
5.
6. Slide the protective cover across the Battery
Pack and push the brackets on the right of the
protective cover into the guides on the left of the
inverter enclosure. Then, press the left side of the
protective cover down onto the Battery Pack until
it snaps into place.
7. Ensure that the DC load-break switch is turned to position OFF. This makes it possible to fit the
enclosure lid to the enclosure.
8. Attach the enclosure lid:
• Attach one conical spring washer to each
screw. The grooved side of the conical
spring washer must point to the screw head.
• Position the enclosure lid on the enclosure using the six screws and tighten all screws
diagonally to each other using an Allen key (AF 5) (torque: 6 Nm ± 0.5 Nm).
