Programming: Fundamentals, file management

3.4

Working with the file manager

3

116

TNC 620 | User's Manual

HEIDENHAIN Conversational Programming | 5/2013

Additional tools for management of external file types

The additional tools enable you to display or edit various externally
created file types on the TNC.

File types

Description

PDF files (pdf)

page 116

Excel spreadsheets (xls, csv)

page 117

Internet files (htm, html)

page 117

ZIP archives (zip)

page 118

Text files (ASCII files, e.g. txt, ini)

page 119

Graphics files (bmp, jpg, gif, png)

page 120

If you transfer files from a PC to the control by
means of TNCremoNT, you must have entered the
file name extension pdf, xls, zip, bmp gif, jpg and png
in the list of the file types for binary transmission
(menu item

Extras >Configuration >Mode in

TNCremoNT).

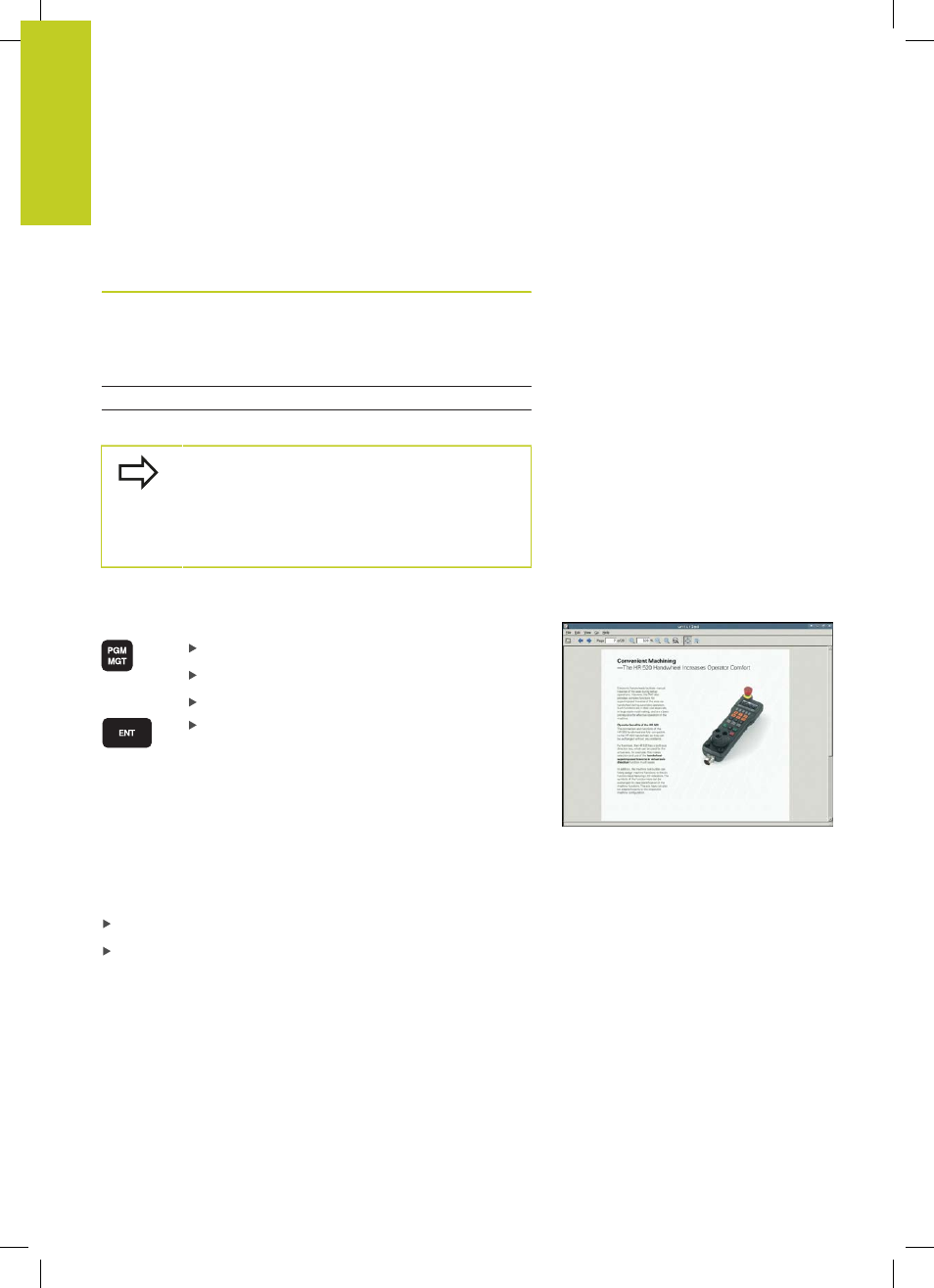

Displaying PDF files

To open PDF files directly on the TNC, proceed as follows:

Call the file manager

Select the directory in which the PDF file is saved

Move the highlight to the PDF file

Press ENT: The TNC opens the PDF file in its own
application using the

PDF viewer

additional tool

With the key combination ALT+TAB you can always return to the
TNC user interface while leaving the PDF file open. Alternatively,
you can also click the corresponding symbol in the taskbar to
switch back to the TNC interface.

If you position the mouse pointer over a button, a brief tooltip
explaining the function of this button will be displayed. More
information on how to use the

PDF viewer

is provided under

Help.

To exit the

PDF viewer

, proceed as follows:

Use the mouse to select the

File menu item

Select the menu item

Close: The TNC returns to the file

manager
