Y Axis 56

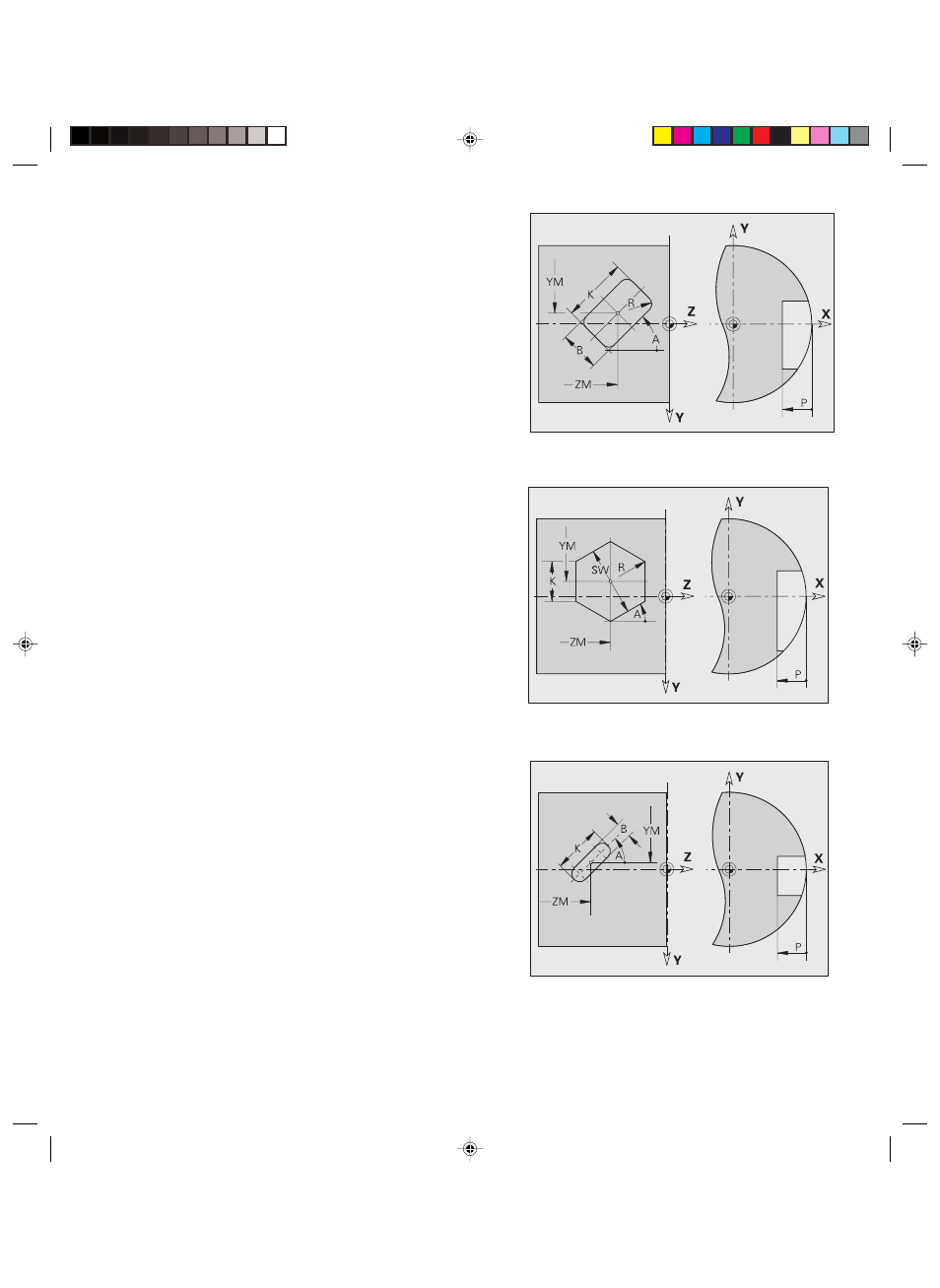

Eccentric polygon
Parameters
YM(Y), ZM(Z): Center
A:
Position angle (reference: positive Z axis and side of
polygon)
Q: Number of corners
K: Edge length or width across flats (width across flats/inside
radius)
Chamfer/rounding: Width of chamfer / radius of rounding
P:
Depth of pocket
4.1.3
Contours
in
the
YZ
Plane
(Side
View)
Rectangle
Parameters
YM(Y), ZM(Z): Center
A:
Position angle (reference: positive Z axis and long side of
rectangle)
K: Length of rectangle
B: Width of rectangle
Chamfer/rounding: Width of chamfer / radius of rounding
P:
Depth of pocket
Linear slot
Parameters
YM(Y), ZM(Z): Center
A:
Position angle of the slot (reference: positive Z axis)
K: Length of slot
B: Width of slot
P: Depth of pocket
