Y Axis 24

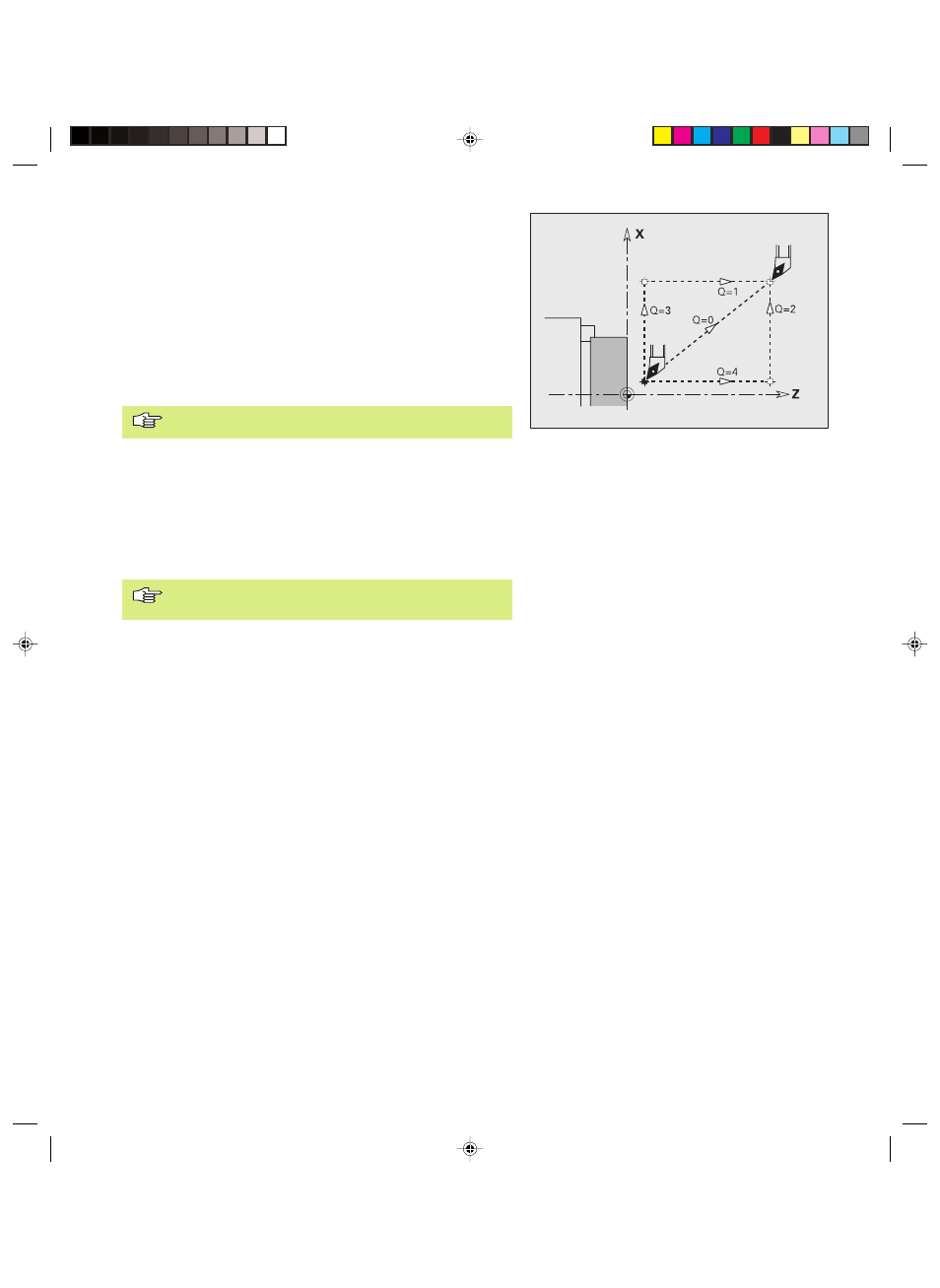

Move to tool change position G14
The slide moves in rapid traverse to the tool change position. In
setup mode, define permanent coordinates for the tool change.
Parameters
Q: Sequence – default: 0
0: X and Z axes move simultaneously (diagonal)
1: First X, then Z direction
2: First Z, then X direction
3: Only X direction
4: Only Z direction
5: Only Y direction
6: Move X, Y and Z axes simultaneously (diagonal)
If Q=0...4, the Y axis does not move.
Rapid traverse in machine coordinates G701
The slide moves at rapid traverse on the shortest path to the
”target point.”
Parameters
X, Y, Z: End point – (X diameter)
”X, Y, Z” refer to the machine datum and the slide
datum.
2.3.2
Positioning
Moves
