Grass Valley SME-1901 v.1.20 User Manual
Page 35
GUIDE TO INSTALLATION AND OPERATION
SME-1901 / 1911 | 31
From here on, the term iControl will be used to designate iControl Navigator on the appserver of iControl Solo running
on a PC.

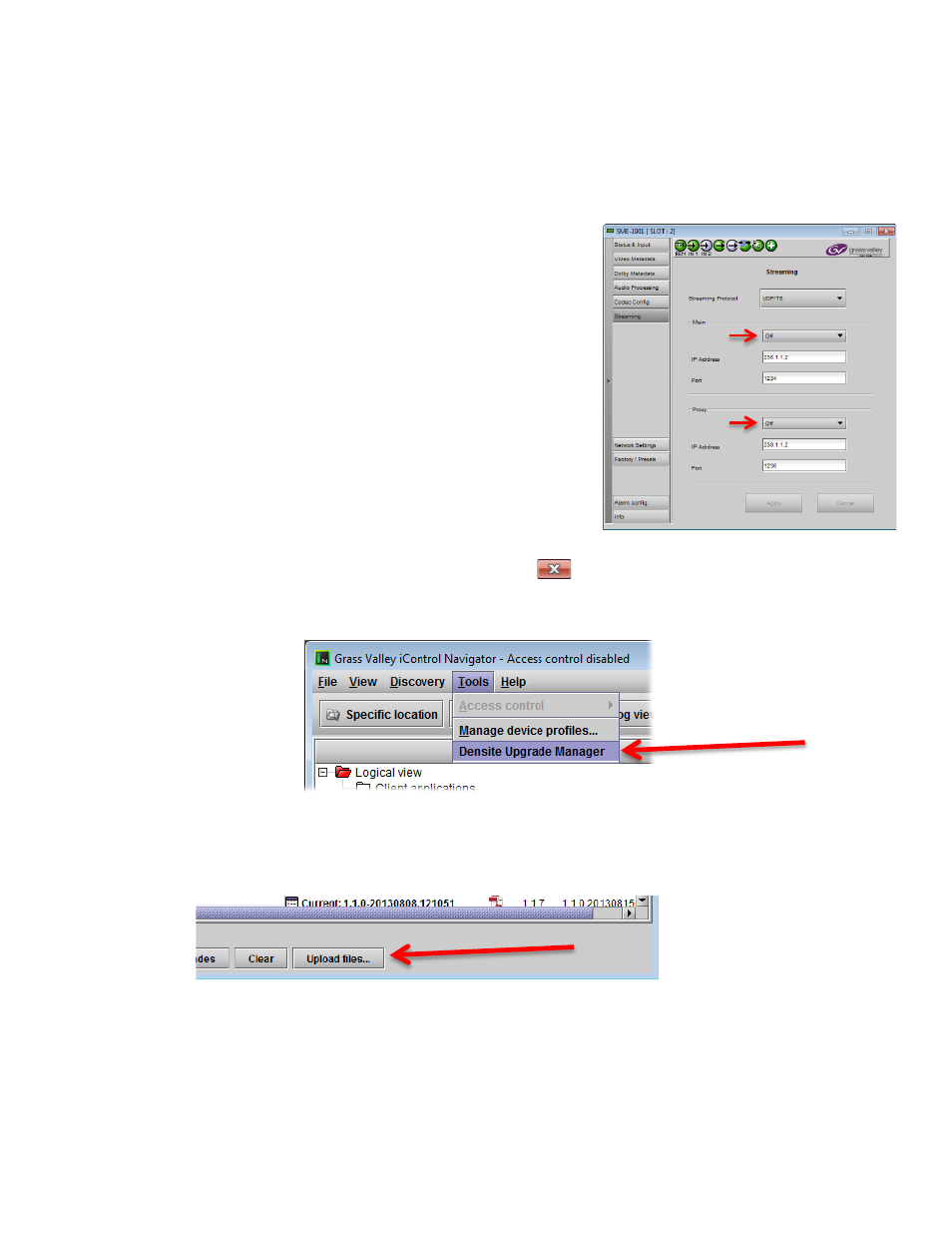

1. Open iControl linked to the frame containing the card you wish to upgrade and double-click on the SME-
1901/SME-1911 card’s icon to open its control panel
2. In the Streaming panel, turn both streaming ports OFF. This will
accelerate the upgrade procedure.
It is not necessary to set all the Codec presets to DISABLED in the
Codec Config panel.
3. Close the SME-1901/SME-1911 control panel by clicking the
icon in the upper right corner.
4. In iControl, select Densite Upgrade Manager from the Tools pulldown menu
5. In the Densite Upgrade Manager window, click Upload Files…
6. In the Open dialog, navigate to the upgrade file you saved, select it, and click Open. Then click Upload.
The selected file is uploaded, and saved on the appserver or PC. Click Close to return to the Densite Upgrade
Manager window.
