Page 10
GUIDE TO INSTALLATION AND OPERATION
6 | SME-1901 / 1911

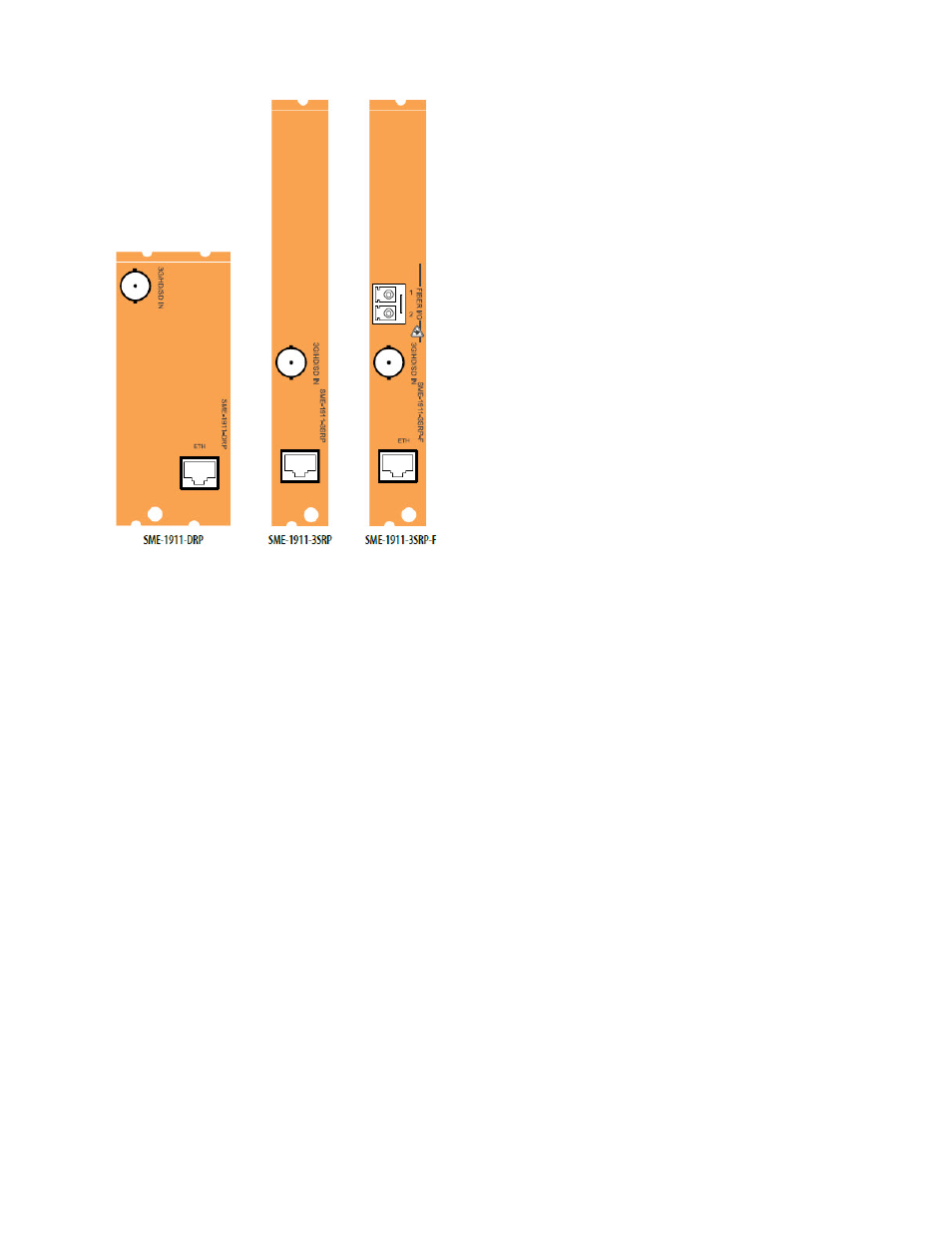

Figure 2.2 SME-1911 Rear Panels
2.3.2 Rear Panel Signal Connections
3G/HD/SD IN – Serial digital 3G/HD/SD input
Connect a serial digital video signal, conforming to the SMPTE ST424M standard for 3G input signals, SMPTE 292M
standard for HD input signals or SMPTE 259M standard for SD input signals, to the BNC labeled 3G/HD/SD IN. The
SME-1901 will automatically switch to the detected line/frame rate format.
3G/HD/SD OUT – Serial digital video outputs (SME-1901 only)
The SME-1901 provides up to six 3G/HD/SD SDI video outputs on BNC or DIN 1.0/2.3 connectors, labeled 3G/HD/SD
OUT 1 to 6. The SDI video signal conforms to the SMPTE ST424M, SMPTE 292M or SMPTE 259M-C standard. The
same signal is carried on all outputs.
ETH
Ethernet port, supporting 100 Mbps full or half-duplex Ethernet, and Autonegotiate, on an RJ-45 connector.
Fiber I/O (-F rear panels only)
Fiber connection via an SFP module. Use either a single-fiber receiver or a single-fiber transmitter module (1310
nm) and connect the fiber using an LC/PC connector.
