5.3 Video Metadata panel
This panel reports on metadata detected in the incoming
video.
Closed Captioning
The icon shows the presence (green) or absence (red) of
closed captioning data.
Timecode
Status icons flag the presence of two time code formats:
• DVITC/ATC-VITC
• ATC/LTC
AFD
The presence, and details if detected, of three types of AFD
data are shown:
• AFD
• VLI
• WSS
Teletext
The presence of teletext data for page 1 and page 2 (actual page numbers are shown in the data boxes) is shown by
the Presence and Subtitle icons.
5.4 Dolby Metadata panel
Input Status
The presence of Dolby Metadata in the input video is
flagged by the Input Status icon – green if present, red if
absent.
Source
Source – The source pulldown in this version of the card is
fixed at Video.
Line – use the pulldown to select between Auto detect and
a specific line.
SDID – use the pulldown to select a value between 1 and
9

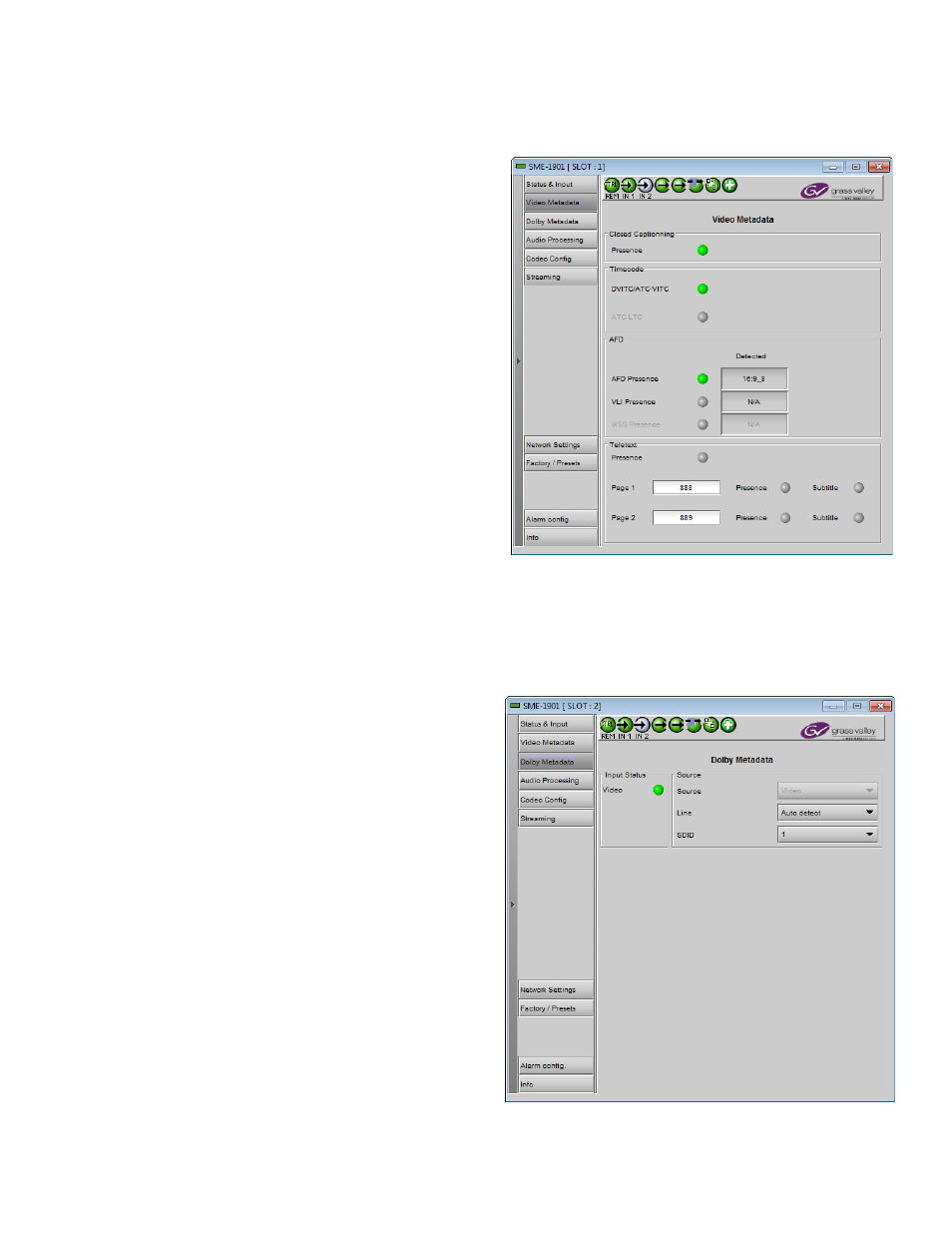

Figure 5-3 Video Metadata Panel
Figure 5-4 Dolby Metadata panel
