Get alarm keys
Click this button to open a save dialog where you can save a
file containing a list of all alarms on this card and their current
values, along with an Alarm Key for each. The alarm keys are
useful for system integration and troubleshooting.
• The file is saved in .csv format
OK, Apply, Cancel
• OK accepts the settings and closes the window once the
card confirms that there are no errors.
• Apply accepts the settings, but leaves the window open
• Cancel closes the window without applying any changes,
and leaves the previous settings intact.
5.11 Info panel
When the SME-1901 or SME-1911 is included in an iControl
environment, certain information about the card should be
available to the iControl system. The user can enter labels
and comments that will make this card easy to identify in a
complex setup. This information is entered into data boxes
in the Info control panel.
Label:
type the label that is shown for this
SME-1901/1911 when it appears in
iControl applications
Short Label
type the short-form label that iControl
uses in some cases (8 characters)
Source ID
type a descriptive name for SME-
1901/1911
Comments:
type any desired text
The remaining data boxes show manufacturing information
about this card.
Three buttons in the panel give access to other information.
• Details…: Reports the Firmware version, service version, and panel version for
this card.

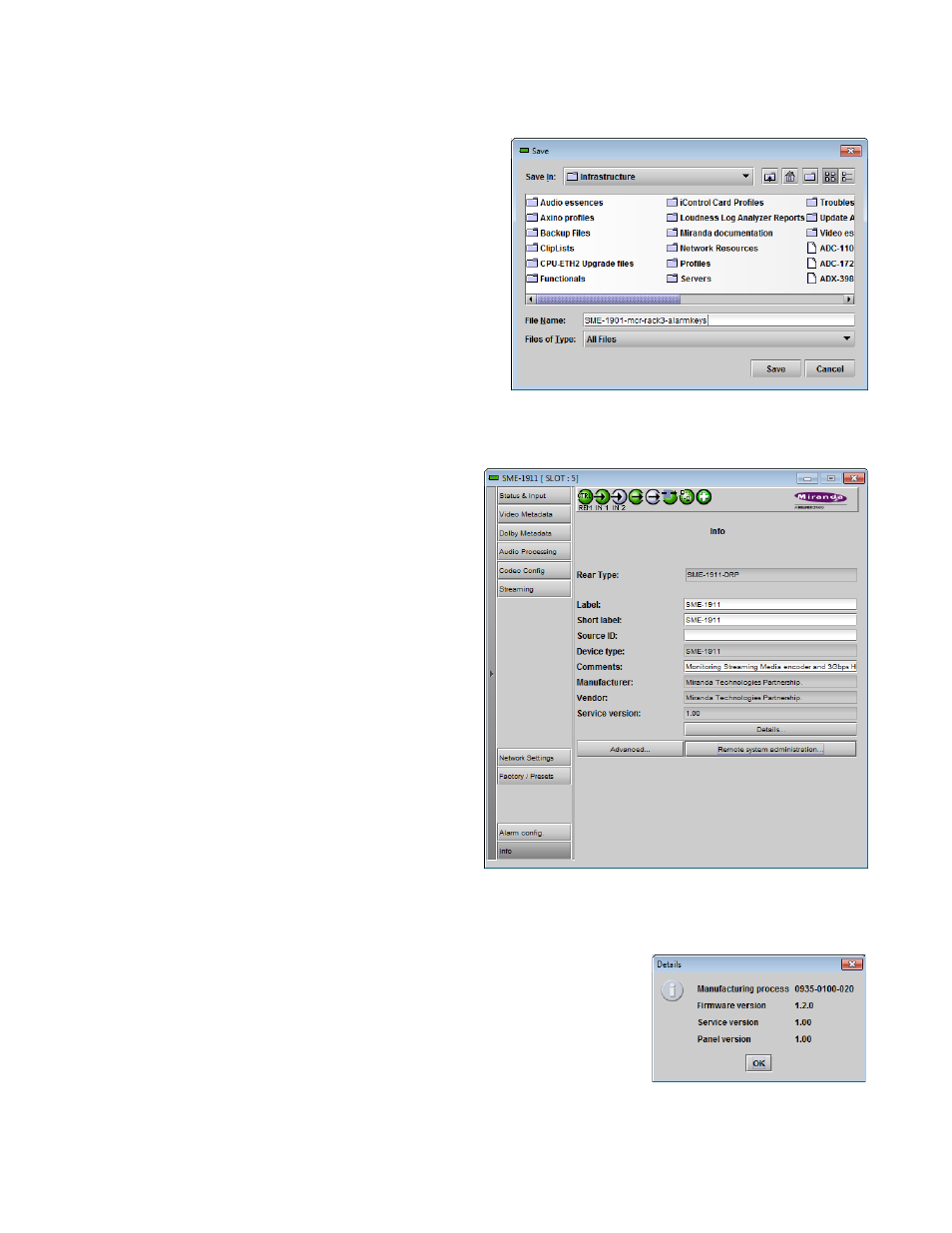

Figure 5-19 Get Alarm Keys dialog
Figure 5-20 Info panel
Figure 5-21 Details window
