Audio Configuration Other Tab
Profile Family 65
Audio Configuration Other Tab
Finally, under the Other tab, you can select recording and playback quality and
adjust monitor channels.
1. Choose Options | Audio Configuration . The Audio Configuration dialog box
appears (Figure 40).

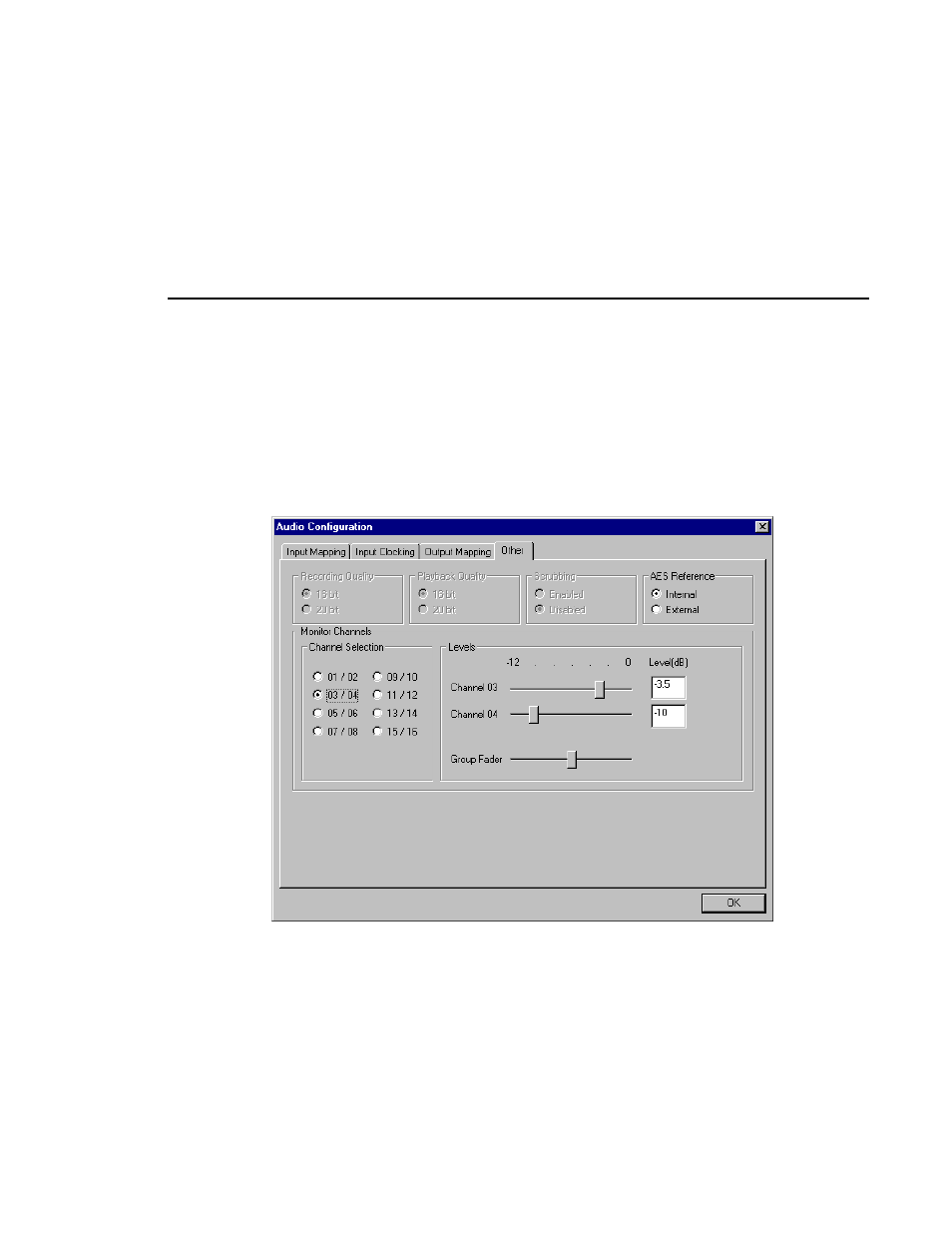

Figure 40. Audio Configuration dialog box, Other tab
2. Click the Other tab.
3. By default, recording and playback are set to 16-bit quality. To change the
audio quality, click the 20-bit button for either recording, playback or both.
Audio is played back at its recorded resolution, even if the system is
configured for 20-bit playback quality. If 16-bit quality is enabled, all audio
will be played back at 16-bit, regardless of what quality it was recorded in.
4. Scrubbing is currently disabled.
