Grass Valley PDR v.2.1 - Manual (Page 110)

Chapter 3 Using VdrPanel
94 Profile Family
Name Clips First
To define a clip by first naming the clip:
1. Click in a panel to select it.
2. Select VideoClip | New Clip to open the New Clip dialog box (Figure 55).

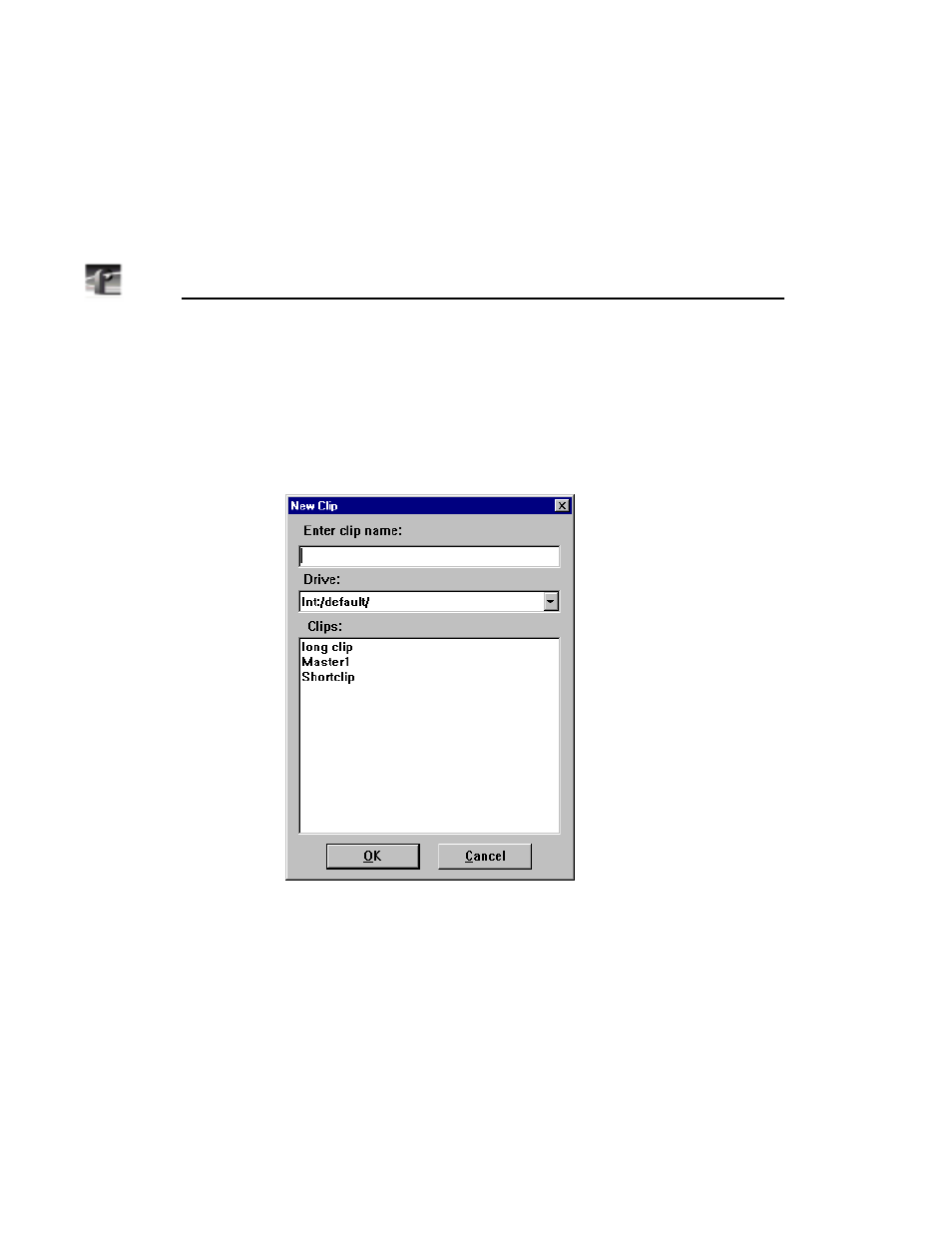

Figure 55. New Clip dialog box
3. Select a drive from the Drive list. The number of drives available depends
on your hardware.
4. Enter a clip name, up to 32 characters long. Spaces and uppercase characters
are acceptable; however, uppercase and lowercase characters will not
distiguish clip names.
5. Click OK . The new clip is added to the clip list for the selected channel.
6. If the Loop or Bounce buttons are pressed in the Panel, a dialog appears
asking you to specify the loop or bounce duration in the form 00:00:00:00.
7. Click the Record button (in the selected Panel dialog box) to begin recording.
