Chapter 2 Using the Profile Configuration Manager
54 Profile Family
Analog Audio Output
In analog audio output, you can change audio channel names, change line
modes for XLR connectors, or adjust individual or group line levels in decibels.
Click Undo if you want to cancel any changes, or click Help for context-
sensitive Help.
To configure analog audio output:
1. Expand Audio Output, and then click one of the Analog Channels to bring
up the Analog Audio Output dialog box. The channel numbers on the left
refer to the physical output connectors on the audio output box. Ch. 01 refers
to the first connector, and Ch. 02 refers to the second connector, and so forth.

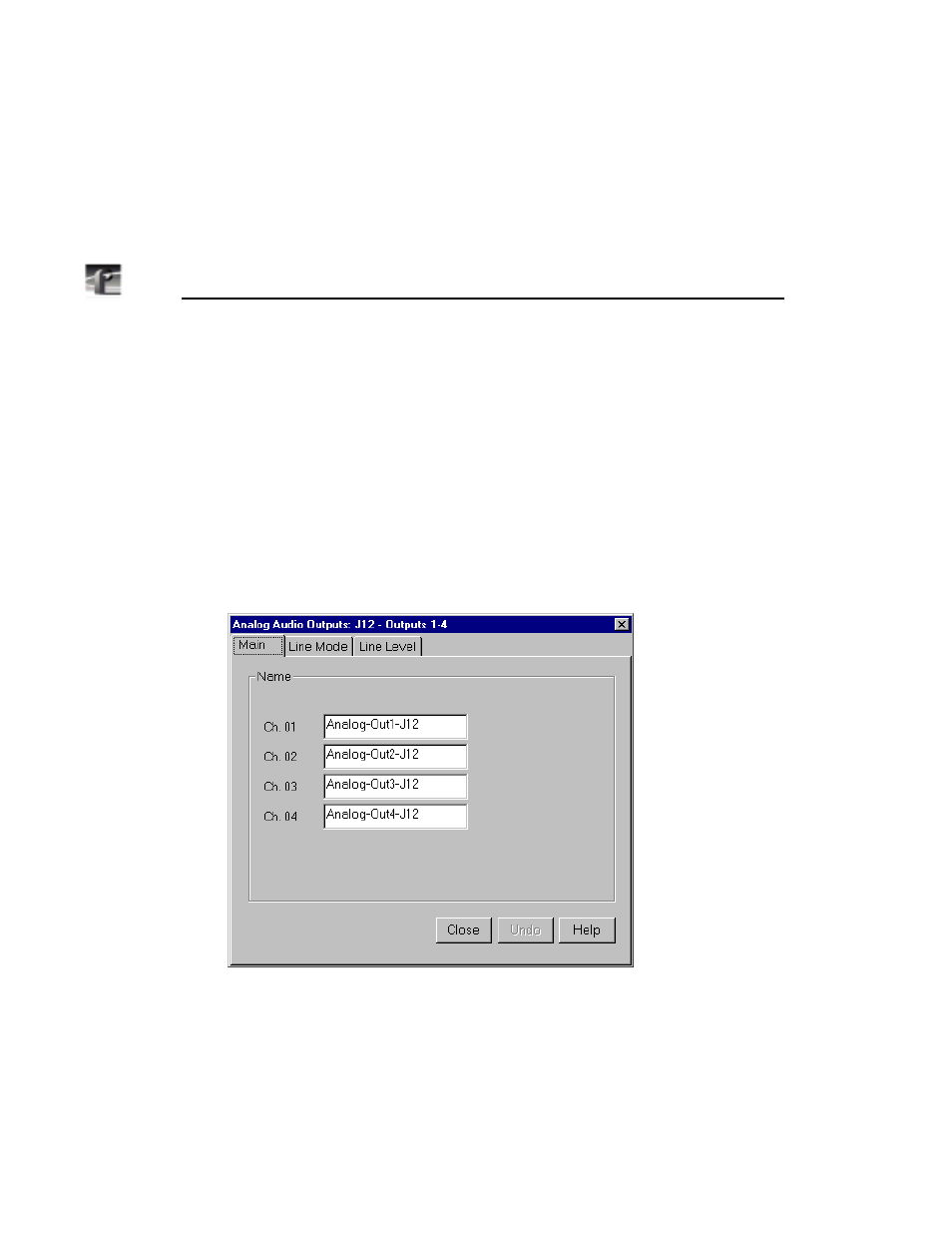

Figure 33. Analog Audio Output dialog box, Main tab
2. Click the Main tab, if it is not already visible.
3. Click in the box of the output channel whose name you want to change. A
channel name can have up to 30 characters.
4. After you have changed channel name(s), click Close or another tab.
