NV9616 Control Panel • User’s Guide 47
5. Operation
Operating Concepts
4 When you finish entering the description, press the button that reads ‘Press When Finished’:
The preset will be saved.
Using the Save Preset Buttons
These are the 8 functions displayed:
Button 1
The button reads ‘Enter Preset Desc’ if you have not entered anything yet. It reads
‘Press When Finished’ if you have entered at least one character.
Button 2 Initially, this button displays all dashes. This button will display the preset identifier
you are creating.
Button 3 This is a character entry button. The characters that appear on this button are controlled
by the keypad (i.e., fixed category buttons) at the right. This is the mapping:
1
space character
2 ABC
3 DEF
4 GHI
5 JKL
6 MNO
7 PQRS
8 TUV
9 WXYZ
The characters on this button are also controlled by the buttons labeled ‘Upper Case’,
‘Lower Case’, ‘Symbols’, and ‘Numerals’.
Button 4 The button reads ‘Cancel’ if you have not entered anything yet. It reads ‘Back’ if you
have entered at least one character. As a cancel button, pressing it takes you out of save
preset mode and returns you to MD mode. As a back button, it erases the most recently
entered character, as a backspace button does on your keyboard.
Button 5 The button reads ‘Symbol’. Press this button to be able to enter special symbols with
the character entry button (button 3).
There are 16 special symbols from which to choose. Two of the keypad buttons apply
here too:
1
#, (space), _, &, (, ), $
0 *, @, (period), !, ^, +, –, ?
Button 6 The button reads ‘Numerals’. Press this button to be able to enter numerals. The char-
acter entry button reads ‘Use Keypad Directly’. Thus, to enter numerals, press the key-
pad buttons.
Button 7 The button reads ‘Upper Case’. Press this button to switch to upper case letters (espe-
cially if you have been entering symbols or numerals).
Button 8 The button reads ‘Lower Case’. Press this button to switch to lower case letters (espe-
cially if you have been entering symbols or numerals).
When you are entering letters, several letters appear on the character entry button. You can select
one of those characters by repeatedly pressing the keypad button that corresponds to those charac-
ters. A line appears over the selected character. Repeatedly pressing the keypad button will cycle

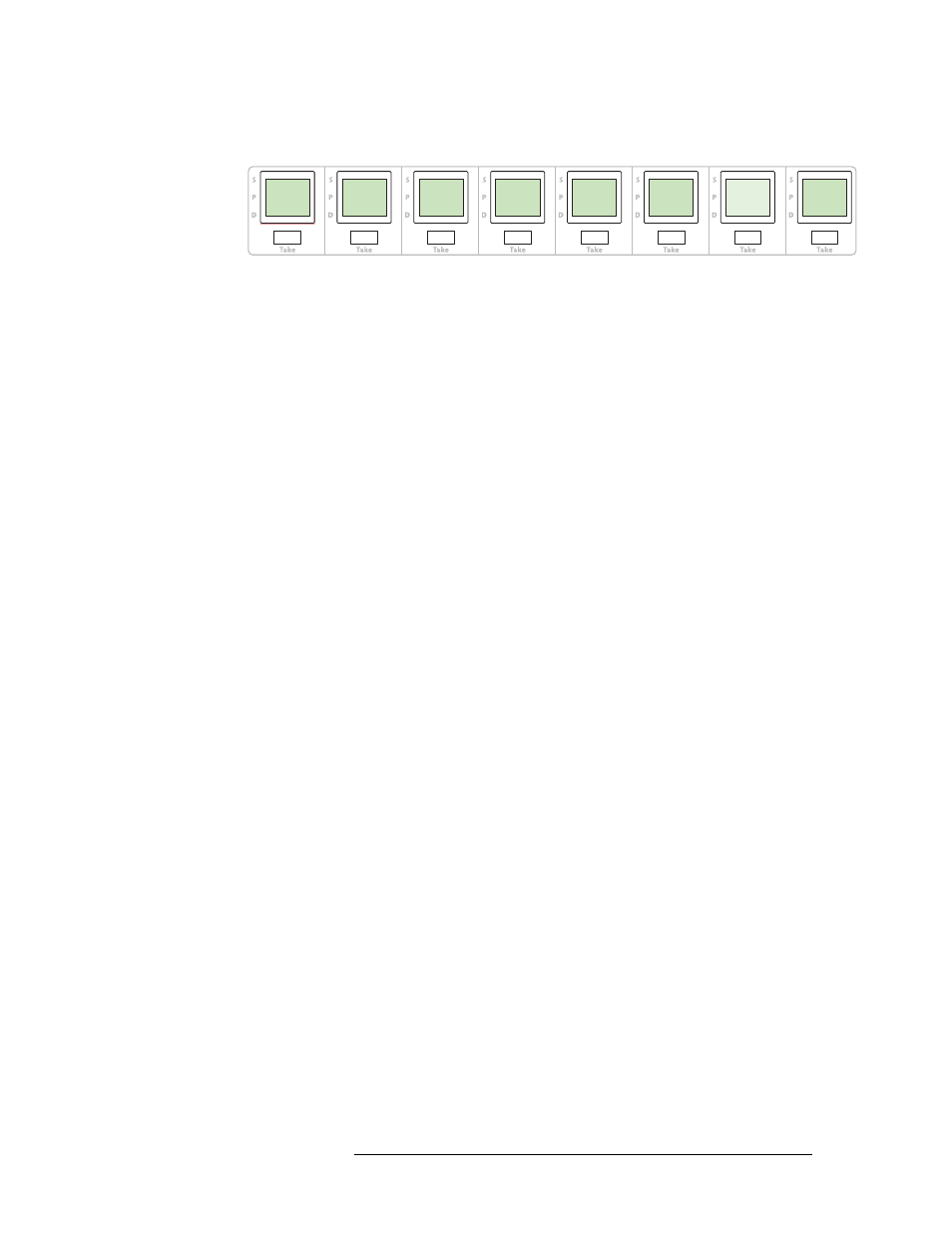

PRESS PRESS
WHEN WHEN
FINISHED FINISHED
MY PST–– MY PST––
–––––––– ––––––––
–––––––– ––––––––
_ _
TUV TUV CANCEL CANCEL SYMBOLS SYMBOLS NUMERALS NUMERALS
UPPER UPPER
CASE CASE
LOWER LOWER
CASE CASE
