8985FSP/FS/PRC — Instruction Manual 61
Configuration
Video Out Web Page
Use the Video Out web page ( Figure 33 ) to enable or disable the SFP Fiber
Optic submodule outputs when present and disable EDH insertion if
desired.
Note Fiber optic outputs will be present when either the 1310NM-DTL or
1310NM-TRL Fiber Optic submodule is installed.
Output Enables
This section provides the following for the video output signal:
• Fiber TX1 – check the Enabled checkbox to enable the output
(1310NM-DTL submodule installed).
• Fiber TX2 – check the Enabled checkbox to enable the output
(1310NM-TRL or 1310NM-DTL submodule installed).
EDH
To disable EDH insertion in the output, check the Disable Insertion checkbox.

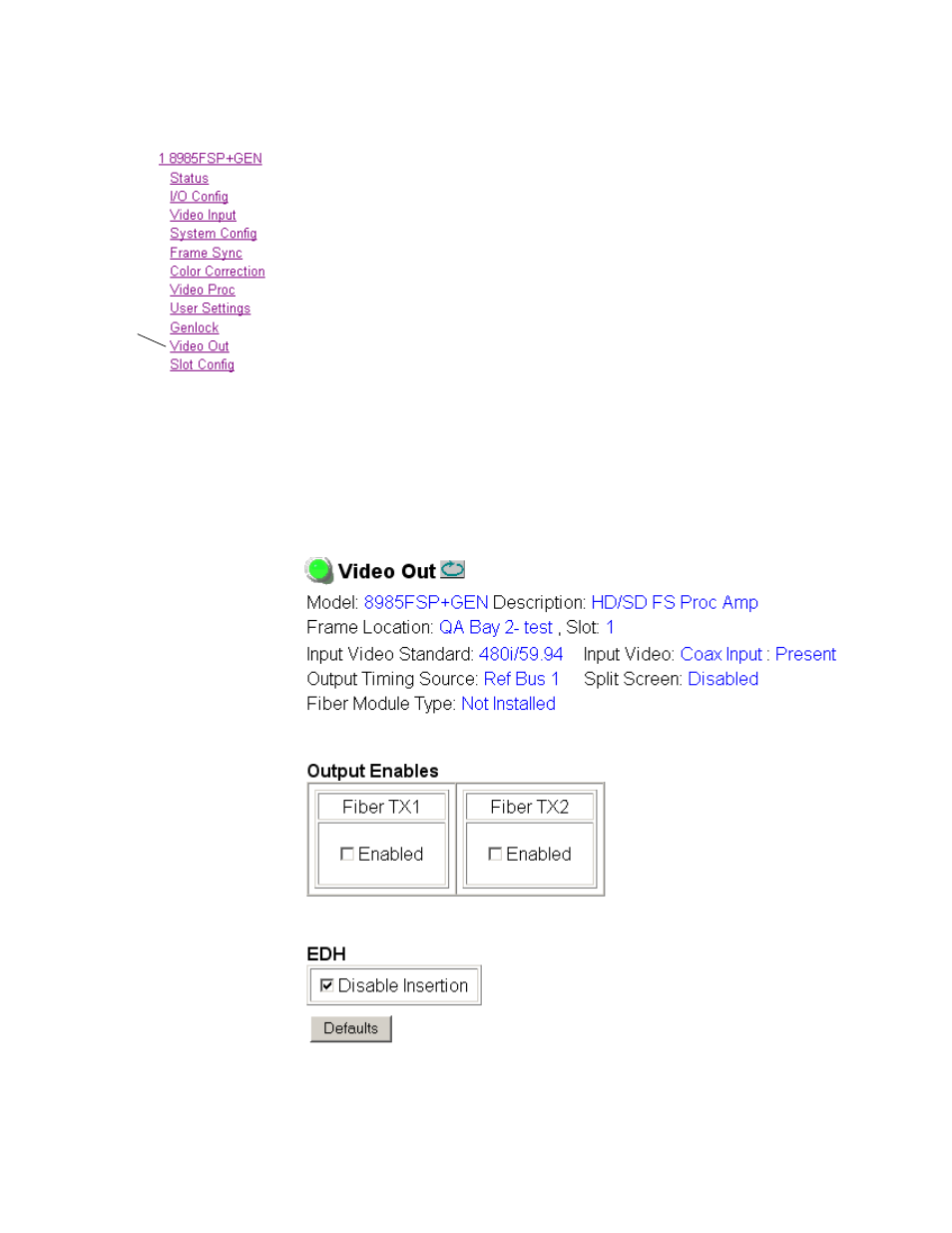

Figure 33. Video Out Web Page
