2000NET Instruction Manual

51

Online Manuals

Online Manuals

Software versions 2.2.0 of both the 8900NET and 2000NET Network Inter-
face Modules support direct online linking to electronic PDF formatted
instruction manuals. To use this feature you must set up a library of
manuals on a PC running a Web Server application (refer to

Figure 38

). The

electronic manual PDF files are stored in the web page directories of the
online manual server.

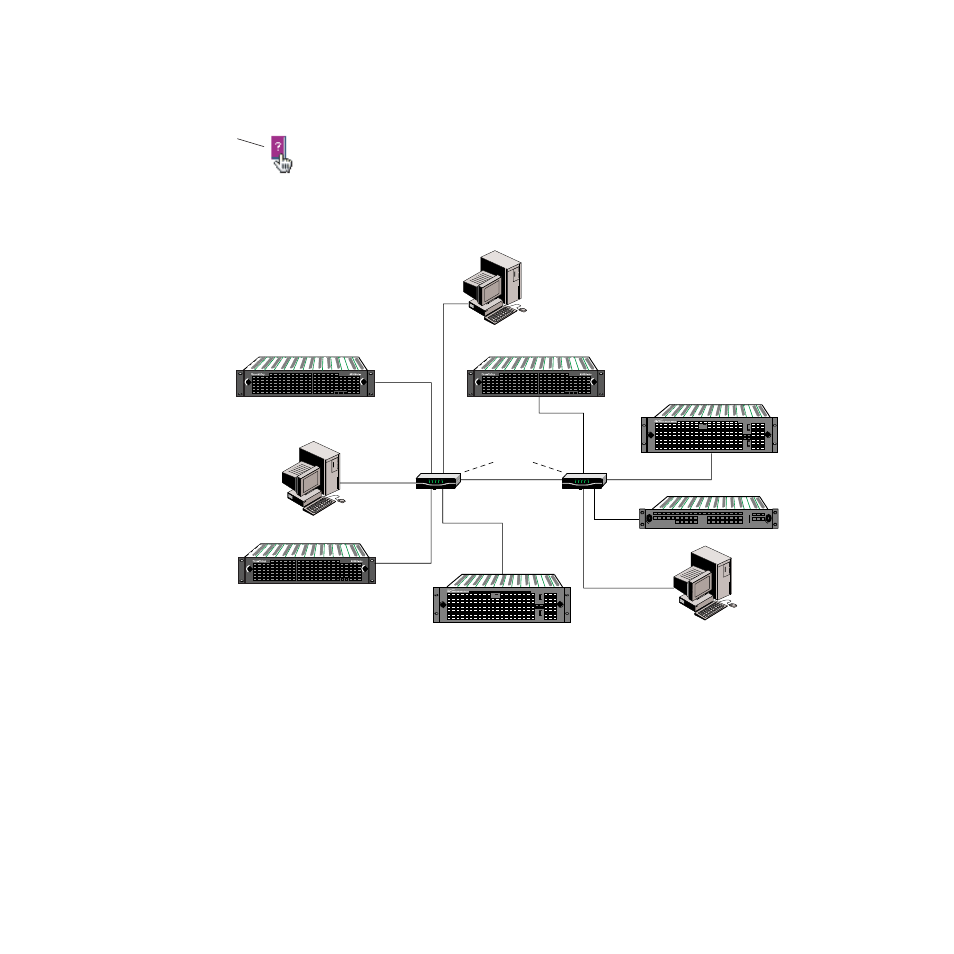

Figure 38. Network Diagram with Manual Server

Requirements

Networked PC running eNetCentral or other Web Server application,

Adobe Reader (3.0 or later) or Adobe browser plug-in for user worksta-
tions,

Version 2.2.0 or later 8900NET and/or 2000NET software, and

PDF format Instruction Manuals from Thomson Grass Valley.

Note

The instruction manuals must be renamed from Thomson Grass Valley part
numbers to the module model name.

Online

Manual

Link

2000T3 frame

Online Manual Server
PC – running a Web Server
containing Instruction Manuals

Routers

User Work Station

User Work Station

2000T3 frame

2000T1 frame
