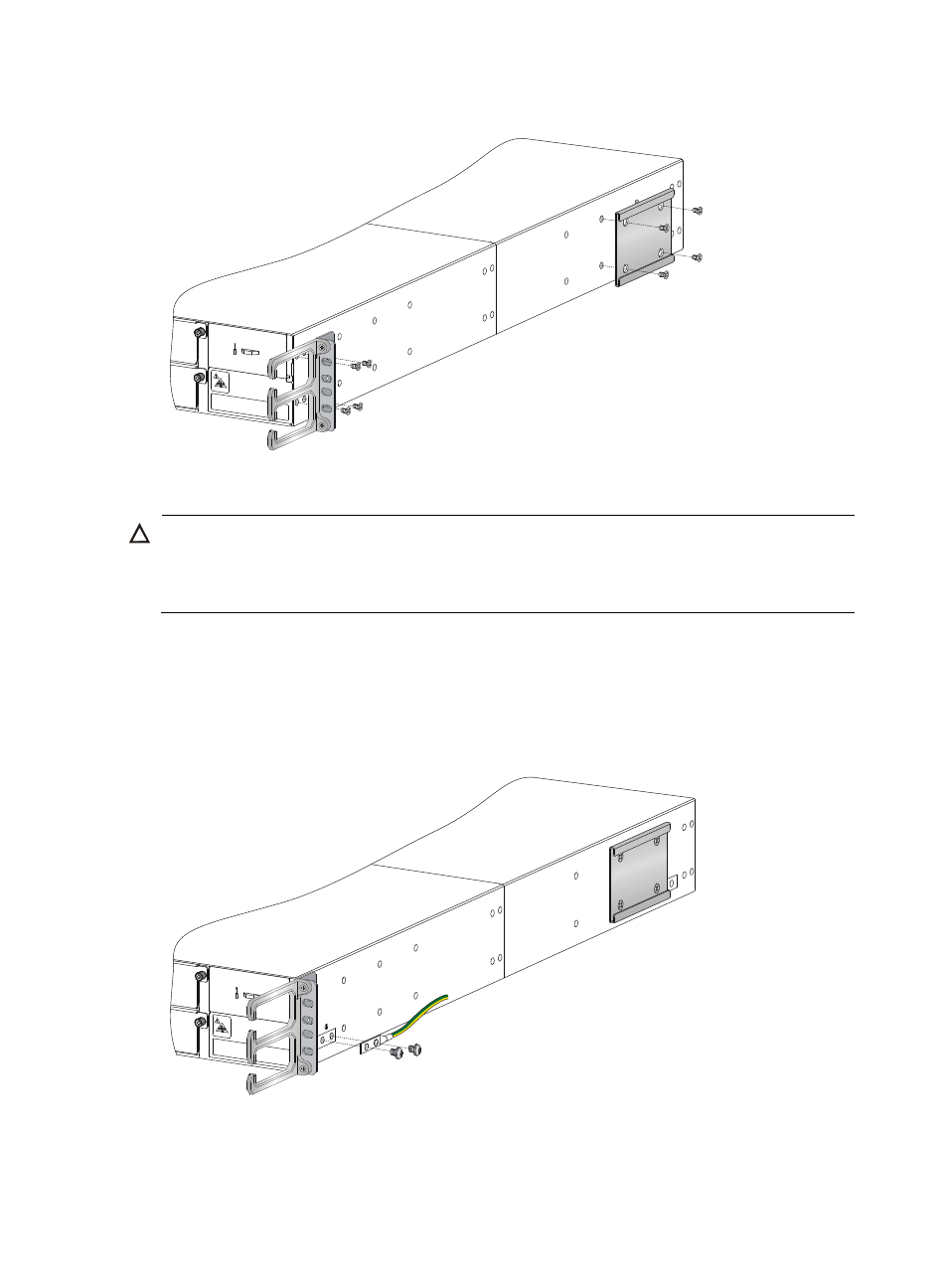

Figure 15 Attaching the mounting brackets and chassis rails to the S9804 switch
Connecting the grounding cable to the S9804 switch
CAUTION:
The primary grounding point and auxiliary grounding point are located on the left side panel. If you use
one of these grounding points, you must connect the grounding cable to the grounding point before you
mount the switch in the rack.
To connect the grounding cable to a chassis grounding point, for example, the primary grounding point:
1. Unpack the grounding cable and grounding screws.
2. Use the grounding screws to attach the two-hole grounding lug of the grounding cable to the
grounding point, as shown in
Figure 16 .
Figure 16 Connecting the grounding cable to the S9804 switch
