ARM Electronics JHD - Manual (Page 70)

JPEG2000 Stand alone DVR User Guide
- 70 -

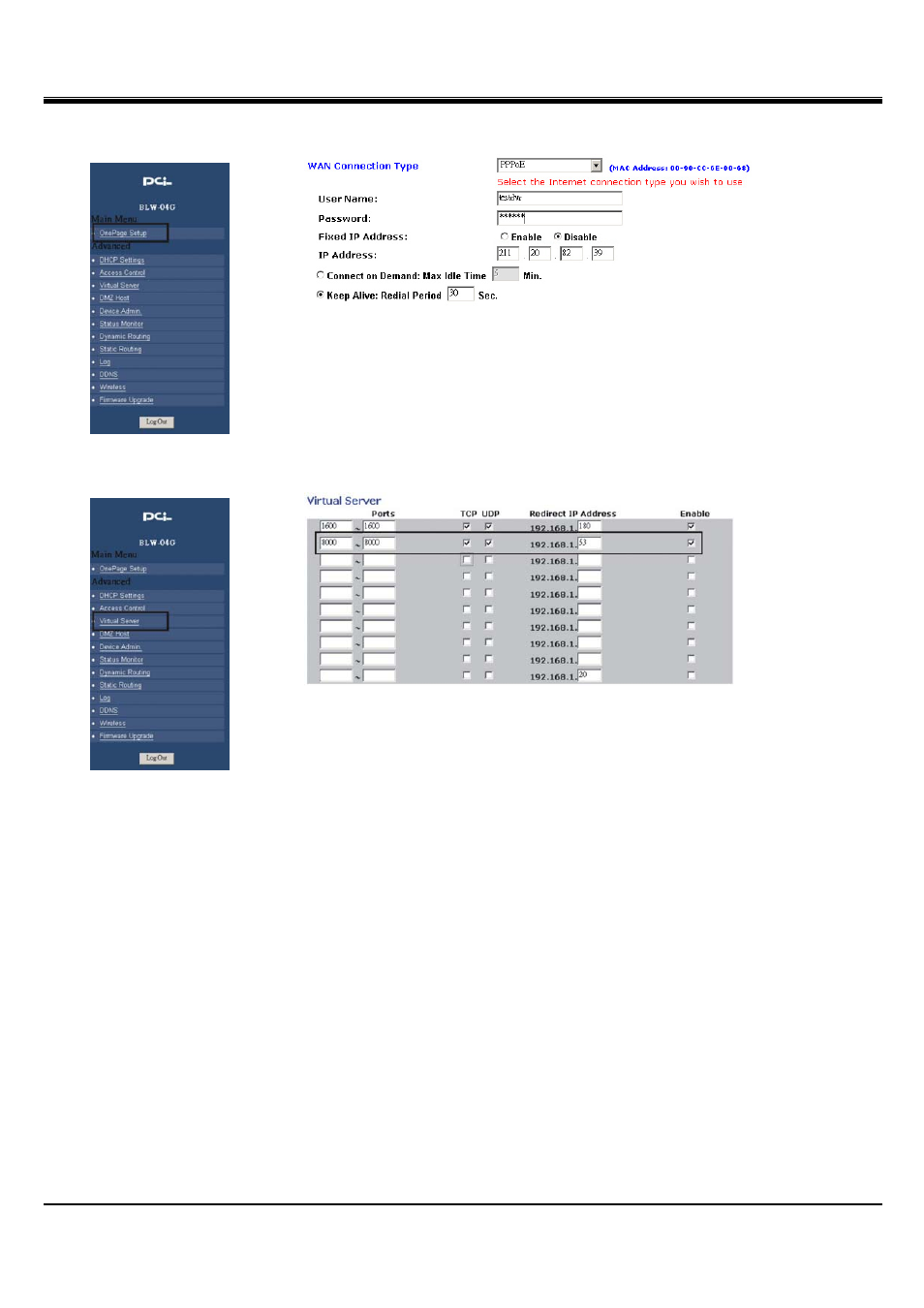

[PPPoE setup]
Select PPPoE in WAN connection Type
Enter User Name and Passward provided by your ISP.
The router will get the IP address upon connection. In this example, we get the
IP address of 211.20.82.39.
[Virtual server setup]
Enter Virtual Server setup.
Enter DVR’s IP (192.168.1.53) and port number (8000). Enable the port and
check both protocols of TCP and UDP. Save the settings before leaving this
page.
Once the routing table is setup, when the client software connects to
211.20.82.39 with PORT 8000, the router will forward the packets to its
matching destination, 192.168.1.53, and thus connect the client to the DVR.
