Airaid 350-210 - Manual

Installation Instructions
For Part Numbers:
350-210 720-243 Airaid Oiled Media Filter
351-210 721-243 SynthaMax Dry Media Filter - Red
352-210 722-243 SynthaMax Dry Media Filter - Black
353-210 723-243 SynthaMax Dry Media Filter - Blue
2011-15 Chrysler 300, Dodge Challenger and Charger
3.6l V6, 5.7L V8 and 6.4L V8 SRT
1. Disconnect The Negative Battery Terminal!
A. Loosen the hose clamp on the factory intake tube.
B. Disconnect the crank case breather line from the
airbox top.
C. Remove the three airbox top screws and remove
the airbox lid and filter.
2. Remove the core support bolt securing the lower half
of the airbox and remove it from the vehicle.
3. Carefully remove the speed clip from the core support
tab and set it aside. It will not be reused. 4. Create the panel assembly. Join the Front (#5) and
Rear (#6) panels together using the two #6-32 Screws
(#18), #6 Flat Washers (#16), and #6 Kep Screws.
(#17). Note: The Tab on the Front Panel is to be be-
hind the Rear panel when properly installed. 5. Install the Filter Adapter (#6) onto the Front Panel as
shown using three 1/4-20 Button Head Screws (#12) and
1/4” Flat Washers (#13).
7. Place the 3/8 “ Well Nut into the hole in the inner
fender. It will be fully secured later in step 9. 6. Install one piece of the Edge Seal (#9) on the curved
edge of the Rear Panel and the other piece on the bot-
tom of the Front Panel. 8. Remove and save the factory 6mm fender bolt. It will
be reused in step 9.
A.
B.
NOTE: These instructions illustrate installa-
tions being performed on all three motors
available. While some details may vary from
vehicle to vehicle, the general install procedure
remains the same. Removal of the engine cov-
er is not mandatory, but recommended as it
will make installation easier on some models.
Full color instructions can be viewed on our
web site at Airaid.com. Use the Product
Search function to find your part number, and
click View Details.

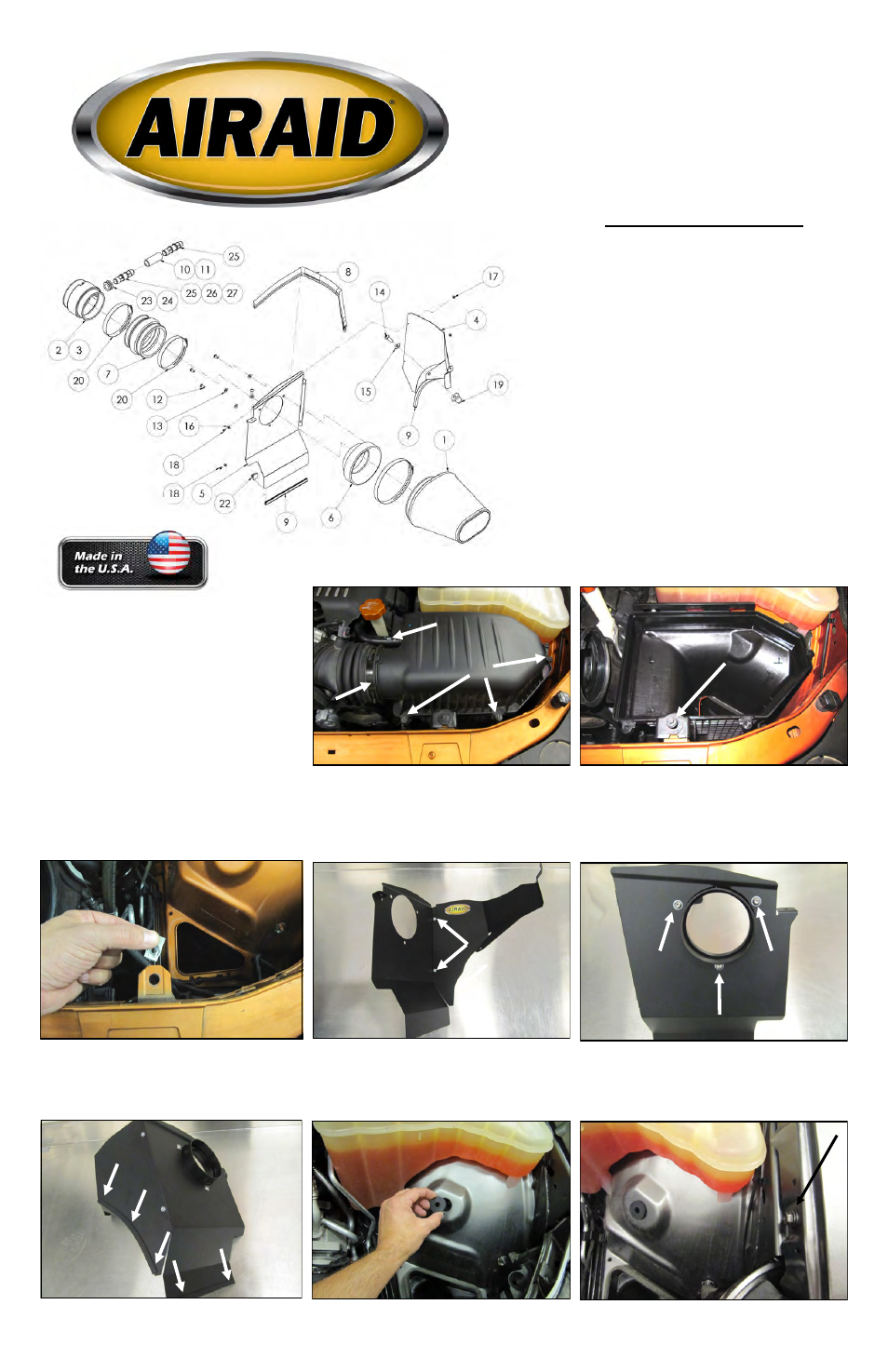

Component Identification
1 . Airaid Premium Filter 1
2. V6 Airaid Intake Tube 1
3. V8 Airaid Intake Tube 1
4. Rear Panel 1
5. Front Panel 1
6. Filter Adapter 1
7. Hump Hose 1
8. 22” Weather strip 1
9. 8 1/2”Edge Seal 2
10. 3/4” Hose 1
11. 5/8” Hose 1
12. 1/4-20 x 1/2” Button Head Bolt 4
13. 1/4” Flat Washer 4
14. 3/8-16x 1 1/4” Bolt 1
15. Flat Washer 1
16. #6 Flat Washer 2
17. #6-32 Kep Nut 2
18. #6-32 x 5/16” Pan Head Screw 2
19. 3/8-16 Well Nut 1
20. #72 Hose Clamp 2
21. #19 Speed Clamp 2
22. Line Holder 1
23. 3/4” Grommet 1
24. 5/8” Grommet 1
25. 3/4” Barbed Fitting 2
26. 3/4” Barbed 90 Deg. Fitting 1
27. 5/8” Straight Fitting 1
C.
