Installation Instructions
For Part Numbers:
200-133
700-433 Airaid Oiled Media Filter
201-133 701-433 SynthaMax Dry Media Filter - Red
202-133 702-433 SynthaMax Dry Media Filter - Black
203-133 703-433 SynthaMax Dry Media Filter - Blue
1996-05 Chevrolet S10 Blazer
1996-04 Chevrolet S10/GMC Sonoma
1996-01 GMC Jimmy
1991-01 Oldsmobile Bravada
4.3L V6
Component Identification
1. Airaid Premium Filter 1
2. Black MAF Panel 1
3. Black Side Panel 1
4. Weather Strip 32 ¾” 1
5. M6-1x25 Hex Bolt 4
6. ¼” Flat Washer 4
7. 6/32 Screw 3
8. 6/32 Keps Nut 3
9. #6 Flat Washer 3
Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.
1) DISCONNECT NEGATIVE (-) BATTERY CABLE.
2) Remove the Factory Air Filter Housing.
A) Unscrew & remove the four wing nuts from the air cleaner housing lid.
B) Loosen the rubber clamp to the mass air flow meter and remove air filter lid from vehicle. Do not remove mass
air sensor. See Fig#1
C) Remove the factory air filter from the air filter base. See Fig#1 (Note: Retain the air filter housing base. The Airaid
Quick Fit intake system will mount on top of the factory base.)
D) Using a T-25 torx bit screwdriver (star head), remove three of the four bolts from the factory mass air sensor. See Fig#2
Retain bolts for later use. (Important: The lower left bolt must remain in the mass air sensor)
3) Airaid Intake System Assembly & Installation
A) Assemble the Quick Fit panels with the three nuts and bolts supplied. Refer to Fig#3
B) Position the Quick Fit panel assembly on top of the factory air filter base. (Note: The factory mass air sensor
slides into the cool air box.)
C) Mount the mass air sensor on the Quick Fit panel using the three factory torx bolts removed previously.
D) Using the supplied bolts and washers, mount the Quick Fit panel on the factory air filter base.
E) Install the Airaid premium filter on the end of the mass air sensor. Tighten hose clamp using a flat blade screw-
driver. Refer to Fig#3
F) Install the supplied weather striping onto top of Quick Fit panel. Refer to Fig#3 (Note: Weather stripping has been
pre cut for proper fit.)
4) Finishing Up
A) Check for any foreign objects or debris in the intake path.
B) Check for proper hood clearance.
C) Reconnect the negative battery cable & double check your work.

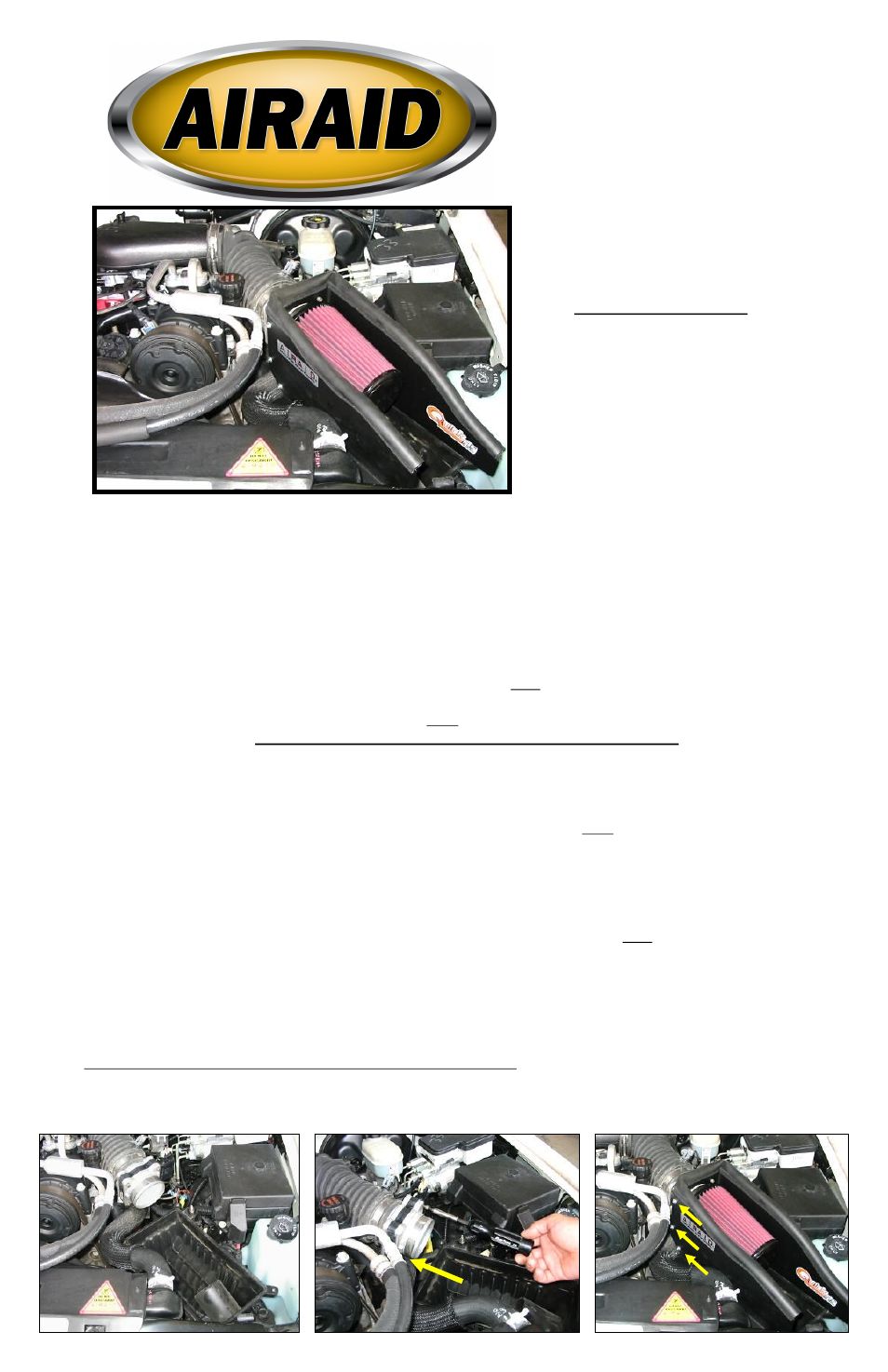

Fig#1 Fig#2 Fig#3
Leave bottom left bolt in place
