Airaid 300-236 - Manual

2. Lift up the front of the engine beauty cover, and
then pull it towards you to remove it from the vehi-
cle. It is only held in position by rubber grommets. 3. Using a 13mm socket, remove the two bolts that
hold the air cleaner mount to the inside right fend-
er. Save them for reinstallation in step #9.
4. Rock the airbox back and forth as you are lift-
ing it straight up to remove it from the vehicle. It is
only held in by grommets. 5. Remove and save three grommets from the bot-
tom of the factory airbox. They will be reused in
step #6. 6. Install the three grommets removed in step #5
into the bottom of the Airaid Cool Air Box (CAB)
(#2) at the locations shown here.
7. Install the adapter gasket (#12) and filter adapter
(#3) into the CAB using three 1/4-20 x 5/8” bolts
(#6) and flat washers (#7) as shown. Refer to the
line drawing above for reference. 8. Install the 1/4” NPT x 1/2” barbed fitting (#9)
into the filter adapter as shown.
9. Install the CAB into the vehicle by aligning the
grommets over the locating pins on the factory air-
box mount. Reinstall the factory bolts into the fend-
er that were removed in step #3.
1. Disconnect the negative battery cable!
Locate the temperature sensor on the air intake
tube, slide the red tab, squeeze the black tab on the
electrical connector, and then disconnect the tem-
perature sensor from the air intake tube. Discon-
nect the crankcase breather tube from the air filter
box. Loosen one hose clamp at each end of the air
intake tube and remove it from the vehicle.

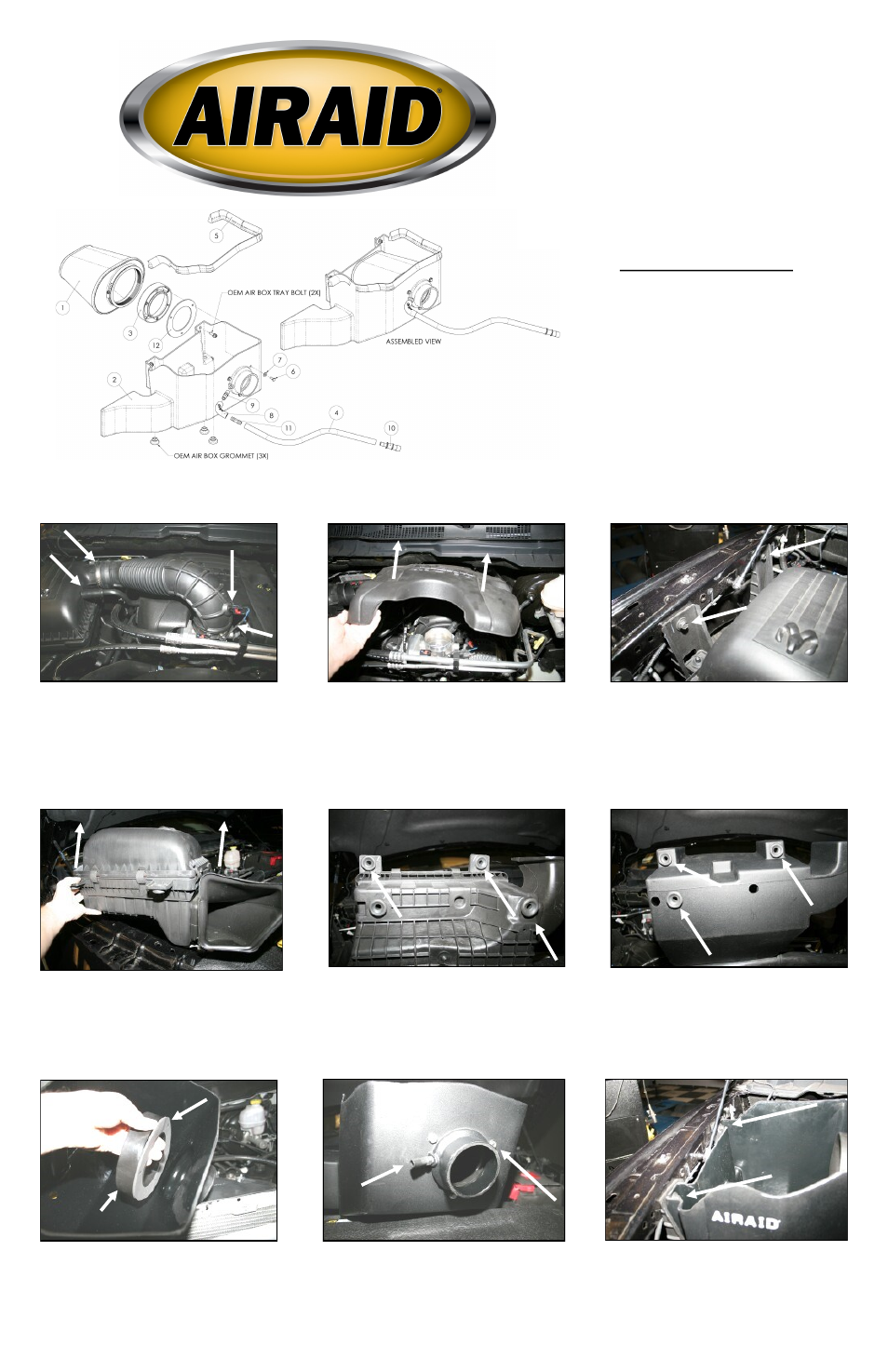

Installation Instructions
For Part Numbers:
300-236
720-476 Airaid Oiled Media Filter
301-236
721-476 SynthaMax Dry Media Filter - Red
302-236
722-476 SynthaMax Dry Media Filter - Black
303-236
723-476 SynthaMax Dry Media Filter - Blue
2009-12 Dodge Ram 1500/2500/3500
5.7L V8
Gasket
Filter Adapter
1/4” Bolts From Step #7
Fitting
Component Identification
1. Airaid Premium Filter 1
2. Cool Air Box 1
3. Filter Adapter 1
4. 1/2” x 22” Breather Hose 1
5. Weather Strip 33” 1
6. 1/4-20 X 5/8” Hex Bolt 3
7. 1/4” Flat Washer 3
8. 1/2” x 90° Elbow 1
9. 1/4”NPT x1/2” Barbed Fitting 1
10. 1/2” x 3/4” Barbed Connector 1
11. 1/2” x 1/2” Barbed Connector 1
12. Adapter Gasket 1
13. 1/4 Hex Plug (NOT USED) 1
14. 3/4” Breather Hose (NOT USED) 1
Temperature Sensor
Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.
