Airaid 300-149 - Manual

Installation Instructions
For Part Numbers:
300-149 700-445 Airaid Oiled Media Filter
301-149 701-445 SynthaMax Dry Media Filter - Red
302-149 702-445 SynthaMax Dry Media Filter - Black
303-149 703-445 SynthaMax Dry Media Filter - Blue
2002-05 Dodge Ram 1500
4.7L V8

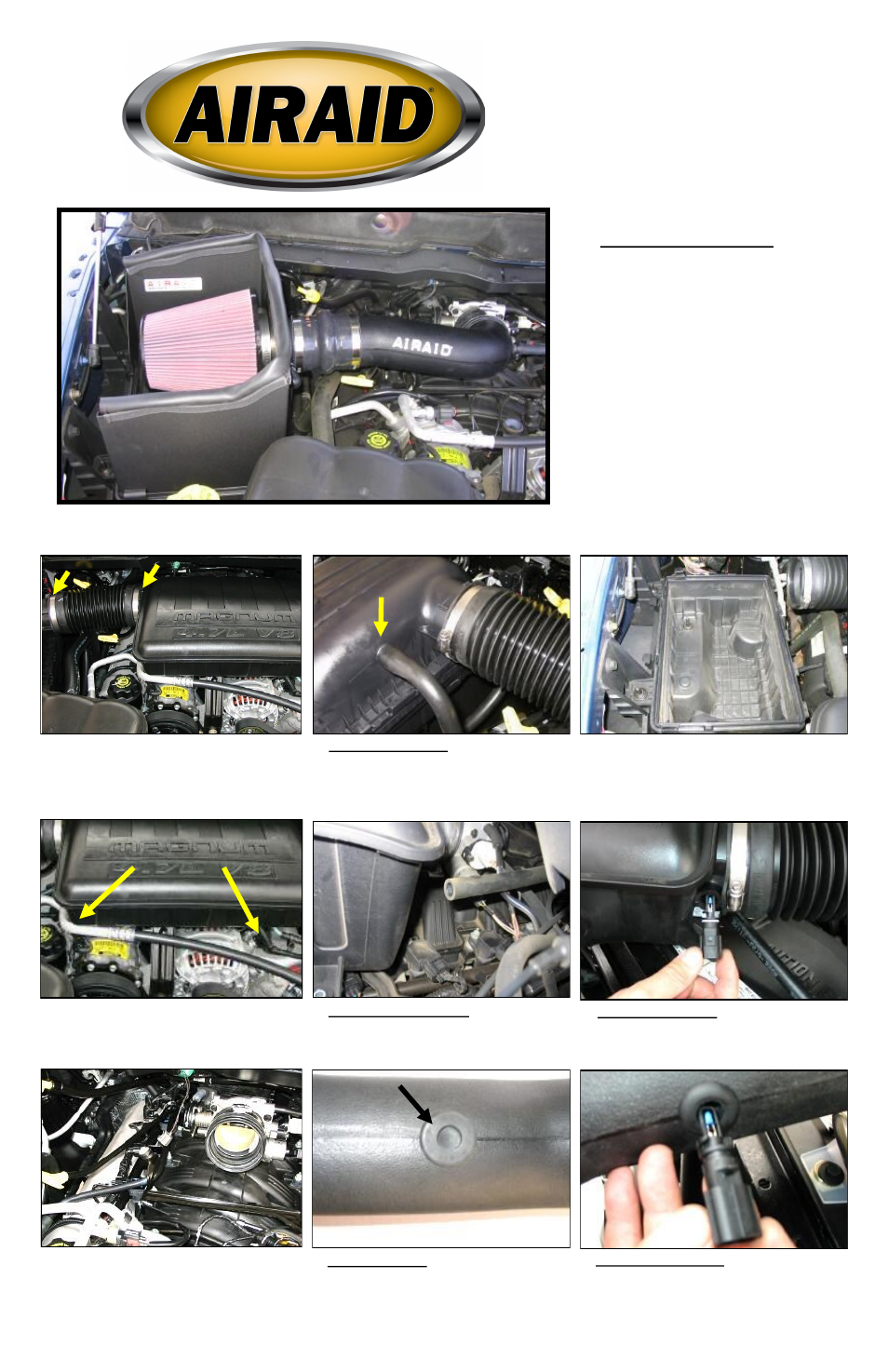

2. 2004-05 Models Only: Disconnect the factory
breather hose from the factory air box lid. 3. Unsnap and remove the factory air box lid, tube,
& factory air filter.
4. Loosen and remove the two 10mm bolts holding
on the factory throttle body air chamber intake as-
sembly. 5. 2002 & 2003 Models Only: Disconnect the
crankcase vent hose on the back of the factory
throttle body air chamber. 6. 2003-05 Models Only: Disconnect air tempera-
ture sensor wire on back of factory throttle body air
chamber and remove sensor. Retain sensor for later
use with the Airaid Intake System.
8. 2002 Models Only: Install rubber grommet
plug into the hole on the side of the Airaid tube. 7. Unsnap the factory intake assembly from front
of bracket and remove assembly from vehicle.
(Note: leave the factory coupler on the throttle
body) 9. 2003-2005 Models Only: Install rubber grommet
w/thru hole and insert the factory air temperature
sensor into the grommet.
Component Identification
1. Airaid Premium Filter 1
2. Modular Intake Tube 1
3. Urethane Hump Hose 1
4. Cool Air Dam 1
5. Weather Strip 33 ¼” 1
6. #56 Hose Clamp 1
7. #60 Hose Clamp 2
8. #16 Speed Clamp 3
9. #19 Speed Clamp 1
10. #24 Speed Clamp 1
11. Grommet Plug for 2002 1
12. Grommet 2003-2004 1
13. ½” x 4 ½” Hose 1
14. 90° Plastic Elbow 1
15. Rubber Hose Cap 1
16. Black Rubber Cap 1
1.Disconnect The Negative Battery Terminal!
Loosen the two hose clamps on the factory air tube.
Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.
