Airaid 250-292 User Manual

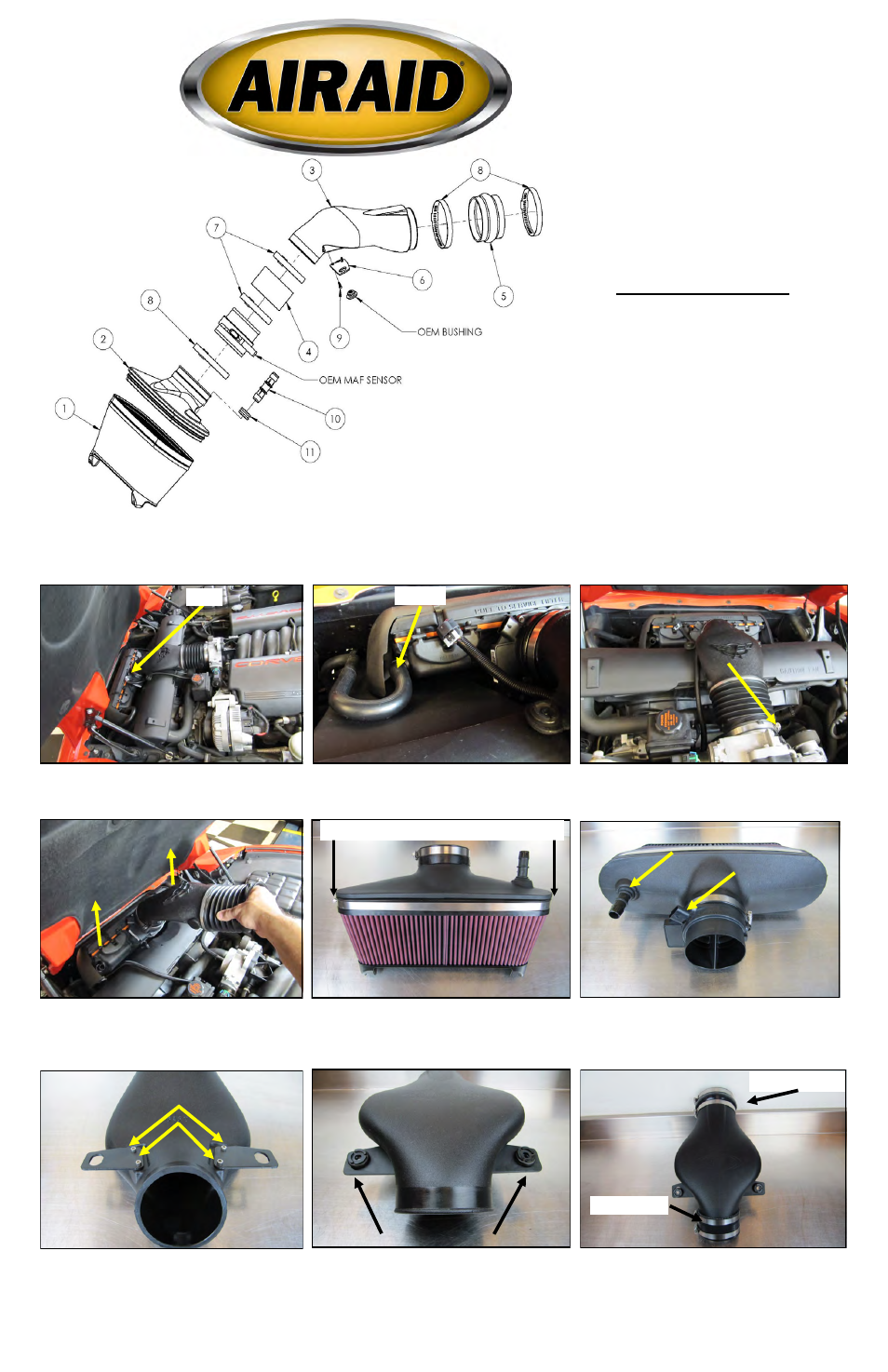

Installation instructions
2. Disconnect the air pump breather line from the air
box.
3. Loosen the intake tube clamp on the throttle body.
4. Unseat the intake tube mounting grommets from the
posts on the radiator shroud and remove the entire air
intake as an assembly.
6. Transfer the Mass Air Flow meter into the Airaid
Filter Assembly. Note the positioning of the air meter
socket in relation to the breather coupling.
7. Install the Tube Brackets onto the Intake Tube as
shown using the 8-32 Socket Head Screws (# 9)
9. Slide the Hump Hose and #64 clamps onto the throt-
tle body side of the Intake Tube and the Coupler and
#56 Clamps onto the air meter side. Leave all clamps
loose at this time.
8. Transfer the factory intake tube mounting grommets
into the Tube Brackets as shown.
Component Identification
1 Airaid Premium Filter
1
2 Filter Base
1
3 Intake Tube
1
4 Silicone Coupler
1
5 Hump Hose
1
6 Bracket
2
7 #56 Hose Clamp
2
8 #64 Hose Clamp
3
9 Socket Head Cap Screw
4
10 Straight Barbed Fitting
1
11 Grommet
1
1.Disconnect The Negative Battery Terminal!
Disconnect the Mass Air Flow meter, or MAF.
Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.
Breather
MAF
Air meter side
Throttle body side
Installation Instructions
For Part Numbers :
250-292 w/
860-024F Airaid Oiled Media Filter
251-292 w/
861-042F SynthaMax Dry Media Filter– Red
253-292 w/
863-042F SynthaMax Dry Media Filter– Blue
2001-2004 Chevrolet Corvette 5.7L V8 All models
5. Create the Filter Assembly as shown by mounting the
Filter onto the filter Base and securing it with the Large
Clamp. Slide the small clamp on to the air outlet and
insert the Grommet and Barbed Fitting into the breather
port.
Optimal Clamp adjuster location for Filter servicing
