MGA 6010 Operations Manual
Super Systems Inc.
Page 26 of 54

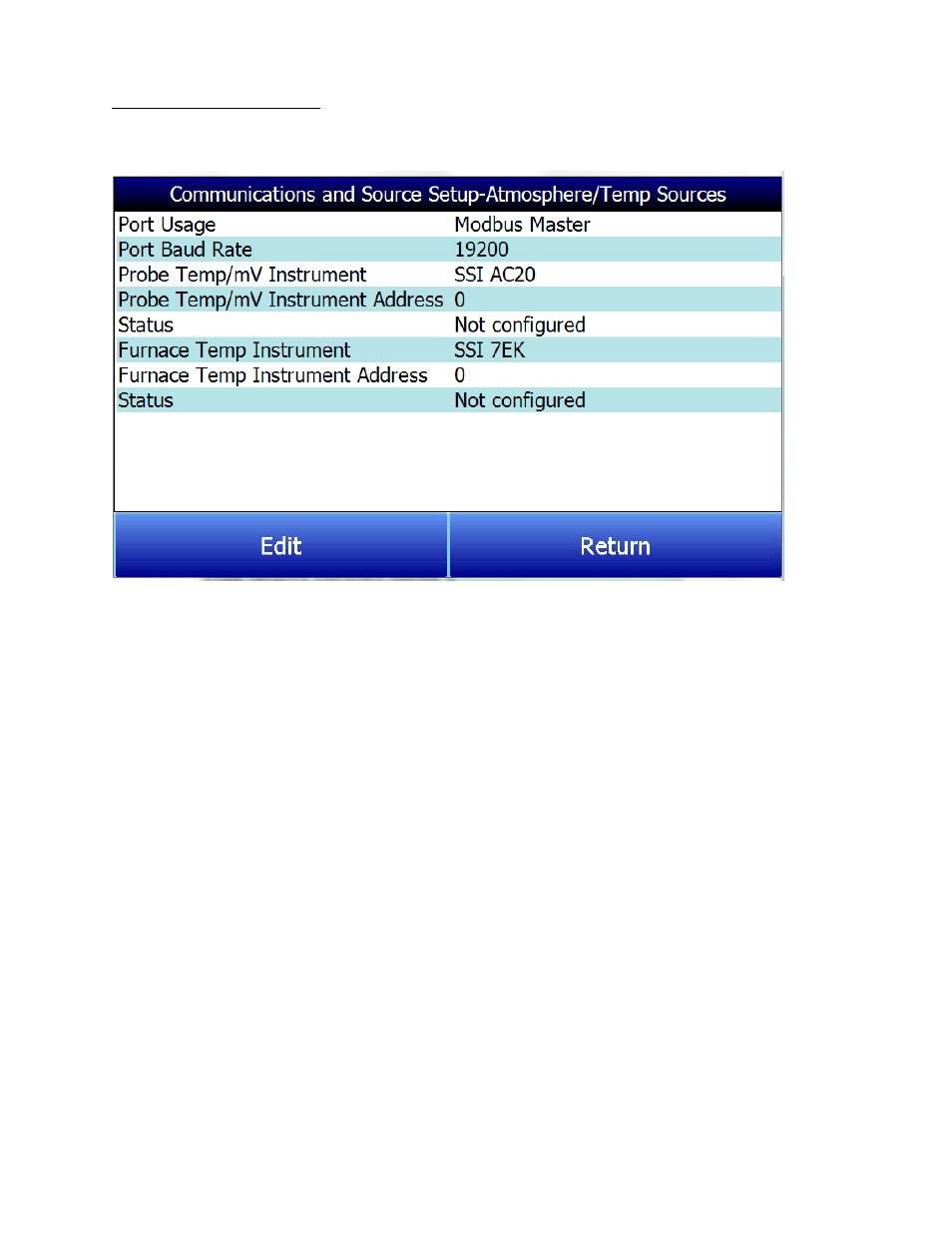

Atmosphere/Temp Sources
RS485 communications can be set up to automatically enter and update data from the oxygen probe and,
if desired, make modifications to the COF/PF in the atmosphere controller.
Port Usage
This is the communication method used to supply information to the instrument. The possible values are:
Modbus Master
Modbus Host
Port Baud Rate
This is the speed of communications which can range between 1200 and 115200.
Probe Temp/mV Instrument
This is the make and model of the device that will be supplying the instrument with information on: probe
temperature, probe millivolts, and COF/PF. Possible choices are:
•
SSi AC20
•
SSI 9200/9205 Loop 1
•
Yokogawa UDP750
•
Honeywell UDC3300
•
Dualpro Loop 1 Modbus
•
Dualpro Loop 2 Modbus
Probe Temp/mV Instrument Address
This is the address of the atmosphere controller. It can be directly entered using the numeric keypad on
the touch screen.
Furnace Temp Instrument
This is the make and model of the device that will be supplying the instrument with information on
furnace temperature. If there is no instrument associated with this input, the probe temperature will be
used. Possible selections are:
