MGA 6010 Operations Manual
Super Systems Inc.
Page 19 of 54

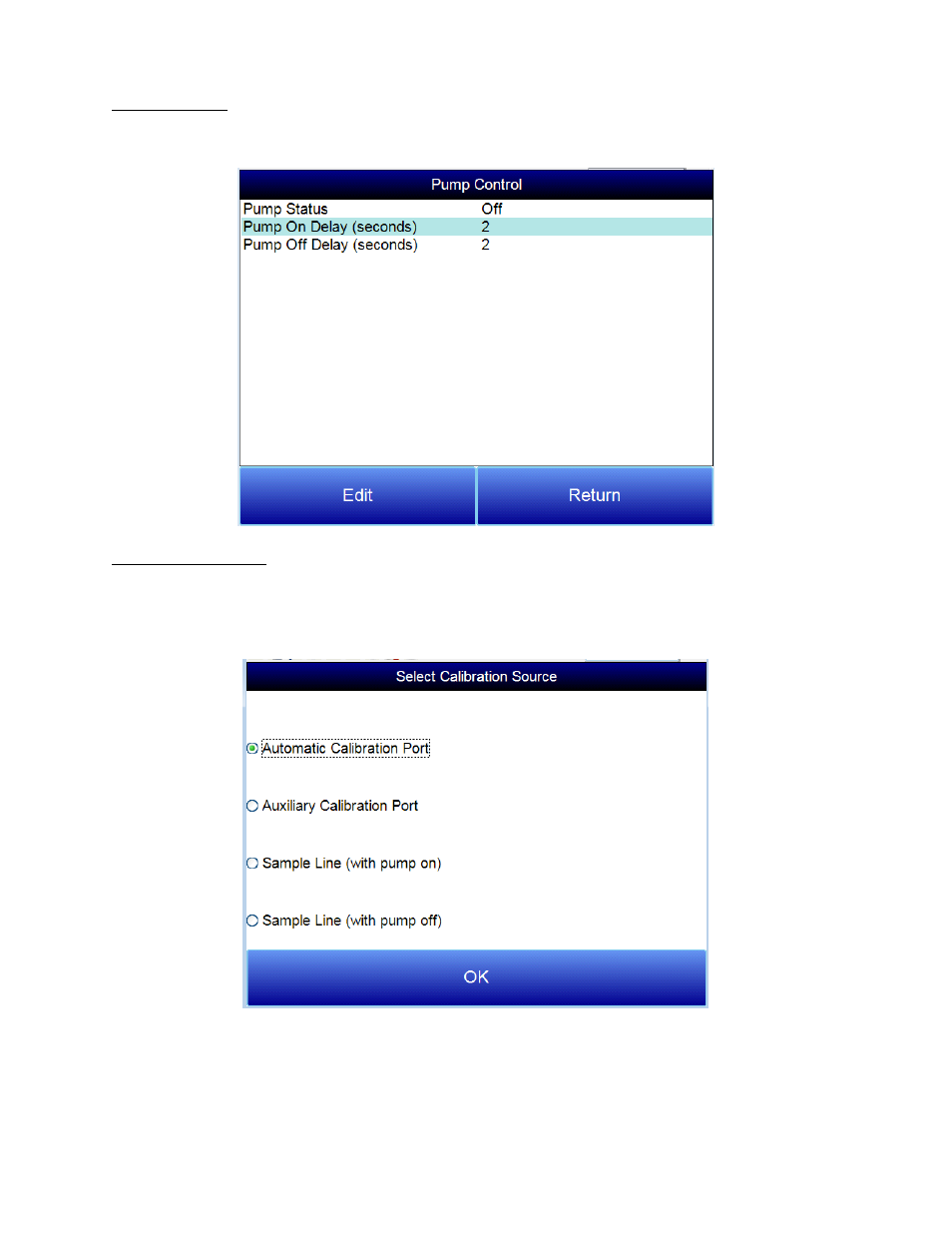

Pump Control
The Pump Control screen will identify and allow the modification of the pump status (On or Off), as well as
the amount of time (in seconds) to delay turning the pump on (Pump On Delay) and off (Pump Off Delay).
Sensor Calibration
On the MGA 6010, you can perform a sensor calibration with one of four calibration sources. These
sources are displayed when Sensor Calibration is first selected: Automatic Calibration Port, Auxiliary
Calibration Port, Sample Line (with pump on), and Sample Line (with pump off).
You will be required to select one of the four sources.
With the Automatic Calibration Port, calibration is performed using the Zero Calibration Gas Inlet and
Span Calibration Gas Inlet ports on the side of the unit.
