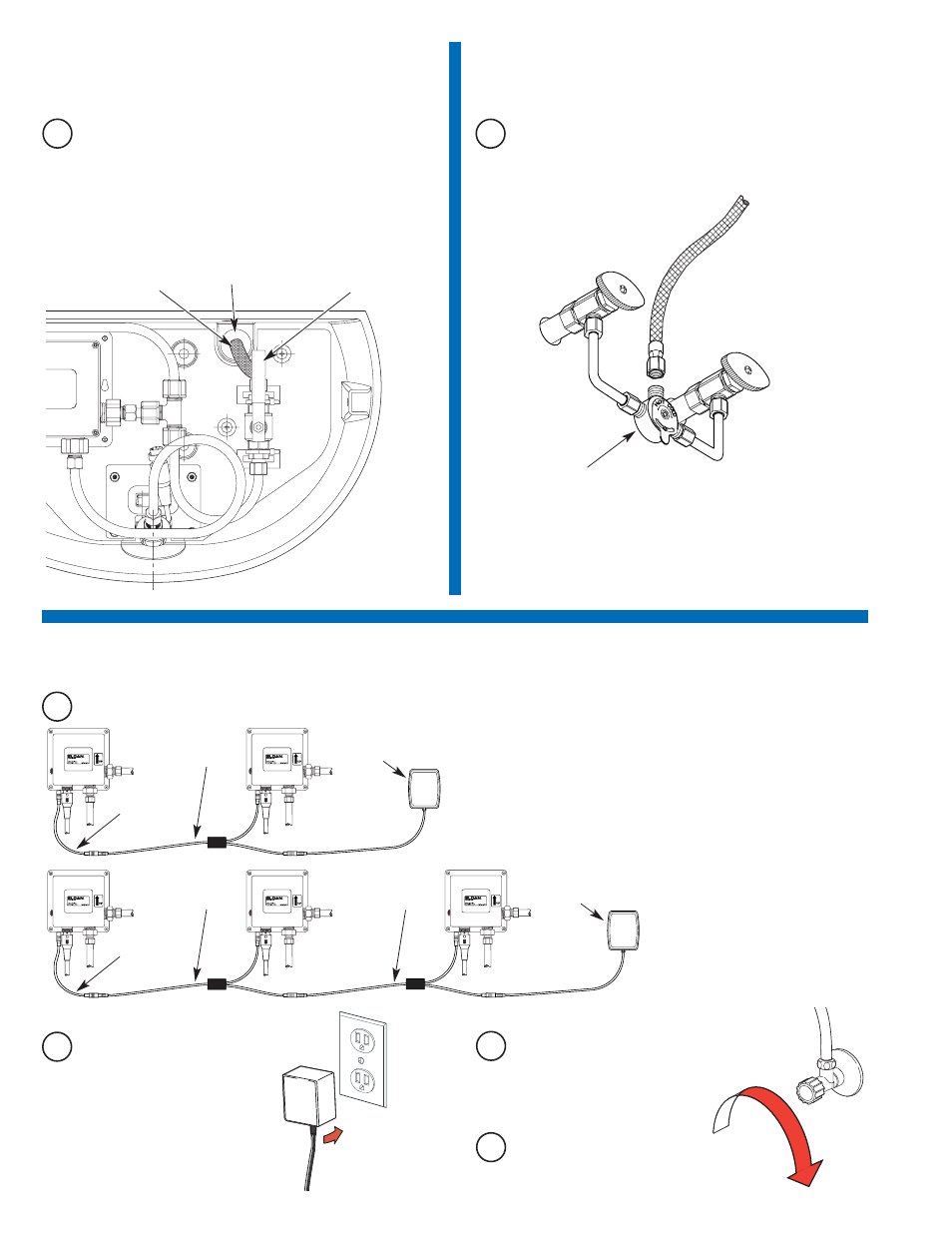

Feed the Braided Hose Supply Line through the service access
hole. One end of the Braided Hose Supply Line is already
connected to the Shut-Off Valve in Head.
6 Feed Braided Hose Supply Line
through Service Access Hole
SERVICE ACCESS
HOLE
SHUT-OFF VALVE
(SHOWN IN OPEN POSITION)
7 Connect Braided Hose Supply Line
to Mixing Valve
A
Connect Braided Hose Supply Line to MIX-60-A Mechanical
Mixing Valve.
BRAIDED HOSE
SUPPLY LINE
8A Connect Transformer (Models EW-62000/EW-63000 Only) and Turn on Water Supply
A
Install the Cable Extension SFP-37 and Cable Splitter(s) SFP-38 as illustrated below.
IMPORTANT: DO NOT PLUG IN THE TRANSFORMER UNTIL ALL CONNECTIONS ARE MADE.
C
Open Shut-off Valve in Head
and Turn on Water Supply.
D
Check all plumbing for water
leaks.
PLUG-IN GANG
TRANSFORMER
SFP-36
CABLE
SPLITTER
SFP-38
CABLE
EXTENSION
SFP-37
MIX-60-A
MECHANICAL MIXING VALVE
MODEL EW-62000
Double Station Lavatory System
PLUG-IN GANG
TRANSFORMER
SFP-36
CABLE
SPLITTER
SFP-38
CABLE
EXTENSION
SFP-37
MODEL EW-63000
Triple Station Lavatory System
CABLE
SPLITTER
SFP-38
B
Plug Transformer into Receptacle.
