16
17
9
10
14
6
8
5
11
12
13
25
15
7
3
4
2
20
19
18
22
23 1
27
21
24
26
The information contained in this document is subject to change without notice.

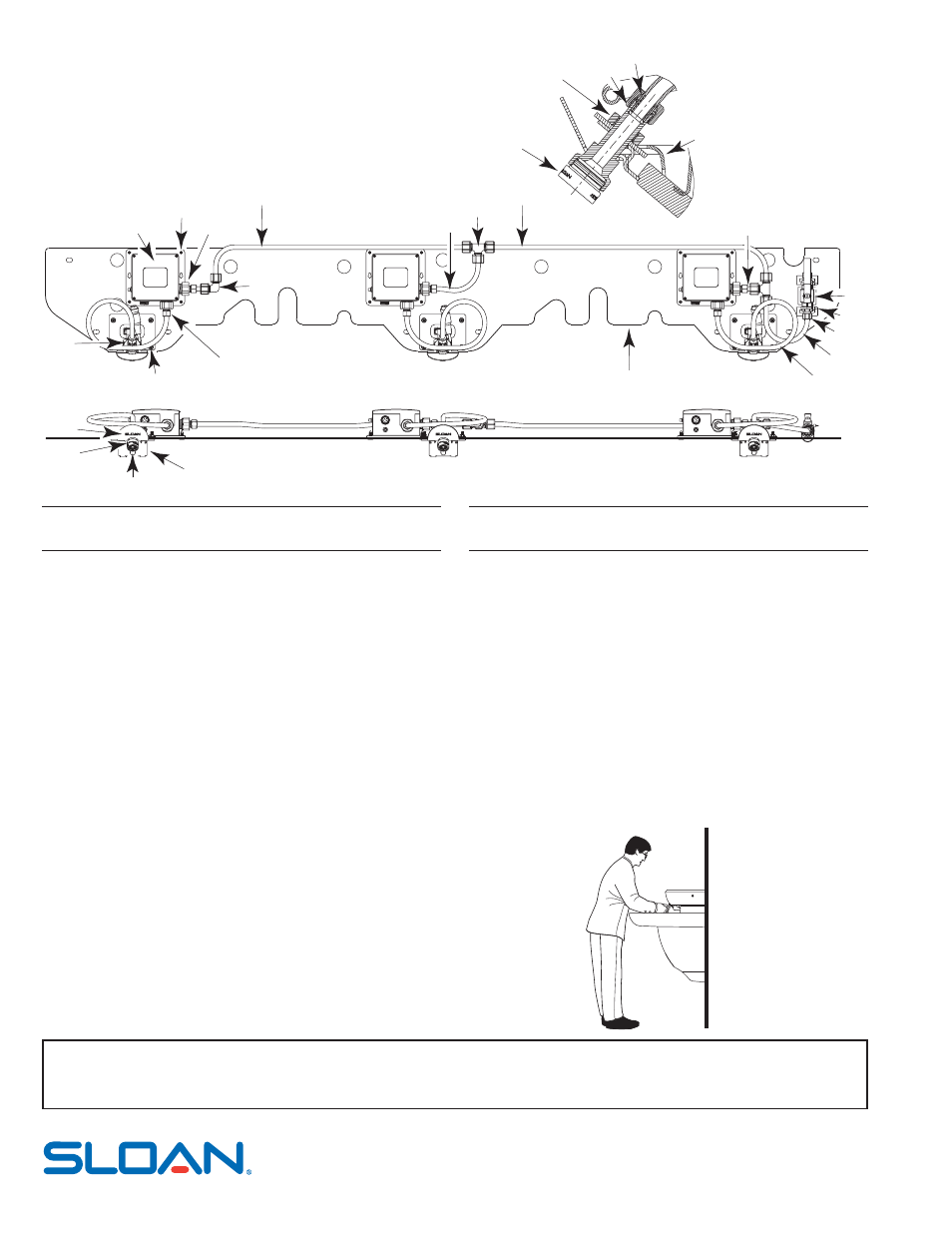

Parts List
SLOAN VALVE COMPANY • 10500 Seymour Avenue • Franklin Park, IL 60131
Phone: 1-800-982-5839 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380
www.sloanvalve.com
Printed 07-09 Copyright © 2009 SLOAN VALVE COMPANY
EW-63000 Triple Station Electronic Components
Item Part Description
No. No.
1 EW-117 Component Mounting Plate, 3 Station
2 EW-119 Sensor Housing
3 EW-100-A Sensor Base Plate Assembly
4 EW-112 Spout Adapter
5 EW-140 Washer, 9/16”
6 MIX-69 Hex Nut
7 EW-14 Nut #8-32 (KEPS)
8 ETF-723 Spray Head 0.5 gpm (1.9 Lpm) Vandal Proof
9 SFP-41-A Sensor with Range Adjustment Kit
10 EW-120 Sensor Backing Piece
11 SFP-40 Control Box with Button
12 EW-116 Push-In Clip
13 SFP-45-A Inlet Adapter Kit
14 EW-26 Tube Support 3/8”
Item Part Description
No. No.
15 ETF-209 Compression Nut
16 ETF-208 Ferrule
17 EW-118 Shut-Off Valve
18 ETF-61 Male Connector
19 EW-19 Compression Tee Fitting 3/8” Tube
20 EW-89-1 Tube, 3/8” 1.56” (40 mm) Long
21 EW-89-5 Tube, 3/8” 6.75” (172 mm) Long
22 EW-89-6 Tube, 3/8” 8.19” (208 mm) Long
23 EW-89-7 Tube, 3/8” 17.50” (445 mm) Long
24 EW-89-9 Tube, 3/8” 25.75” (654 mm) Long
25 EW-89-10 Tube, 3/8” 24.75” (629 mm) Long
26 EW-18 Compression Elbow Fitting 3/8” Tube
27 ETF-198 Tie Wrap
— ELC-17 Bond Tape (Not Shown)
When assistance is required, please contact Sloan Valve Company Installation Engineering Department at:
1-888-SLOAN-14 (1-888-756-2614) OR 1-847-233-2016
Operation
As the user’s hands pass under the spray head and enter the beam’s effective
range, the beam is reflected back into the sensor receiver and activates the
solenoid valve allowing water to flow from the Spray Head. Water will flow until
the user’s hands are removed from under the Spray Head or until the automatic
time out limit setting is reached.
