Code No. 0816191
Rev. 2 (05/10)

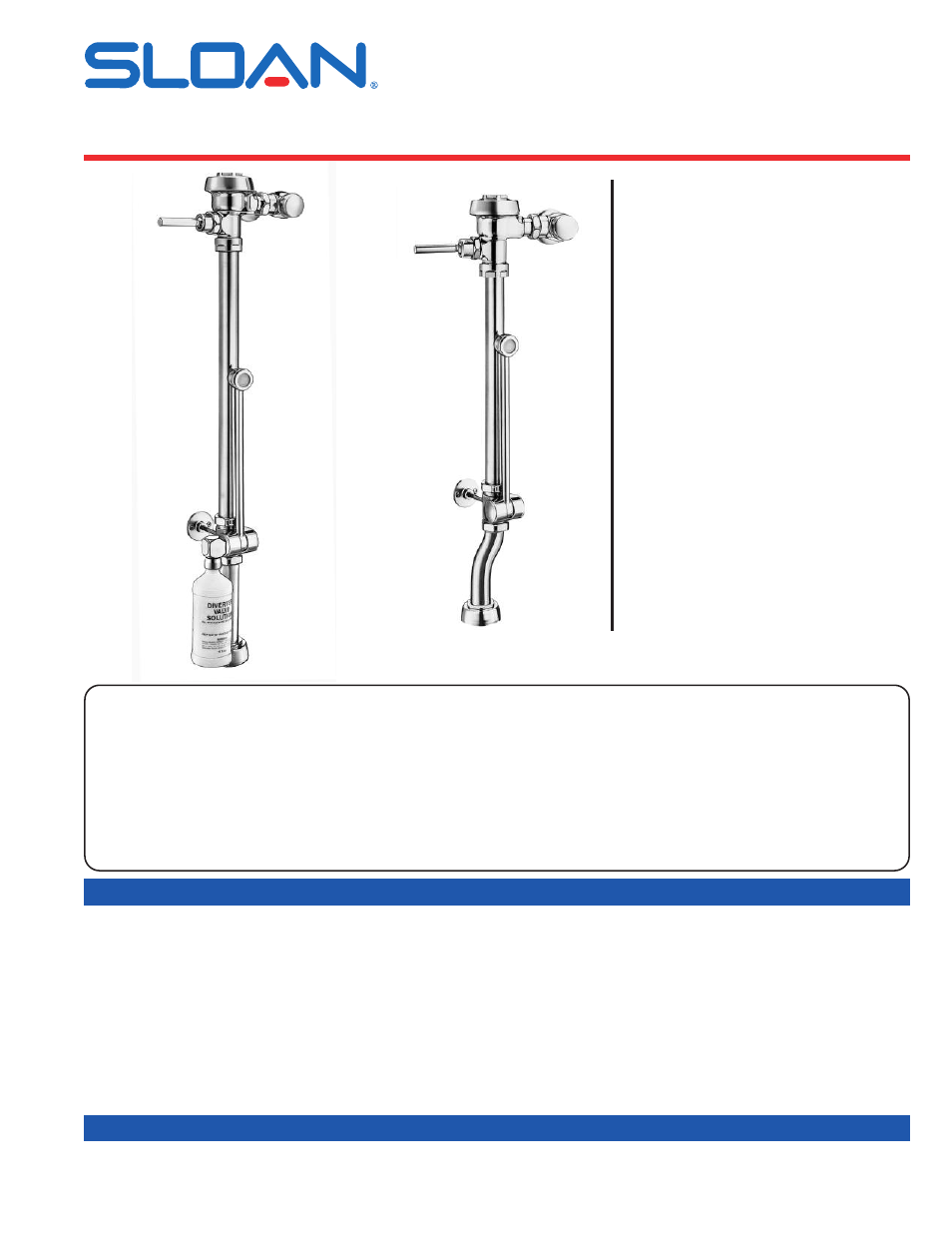

INSTALLATION INSTRUCTIONS FOR SLIMLINE ® BEDPAN WASHER WITH
EXPOSED ROYAL ® AND REGAL ® XL FLUSHOMETER
LIMITED WARRANTY
Sloan Valve Company warrants its Slimline Bedpan Washer to be made of first class materials, free from defects of material or workmanship under normal
use and to perform the service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period
of three years (1 year for special finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or
parts which prove to be thus defective if returned to Sloan Valve Company, at customer’s cost, and this shall be the sole remedy available under this warranty.
No claims will be allowed for labor, transportation or other incidental costs. This warranty extends only to persons or organizations who purchase Sloan Valve
Company’s products directly from Sloan Valve Company for purpose of resale.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE
FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
Before you install the Sloan Bedpan Washer and Flushometer, be sure the items listed below are installed. Also, refer to the rough-in diagram below.
• Closet fixture
• Drain line
• Water supply line
Important:
• ALL PLUMBING SHOULD BE INSTALLED IN ACCORDANCE WITH APPLICABLE CODES AND REGULATIONS.
• WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN ADEQUATE VOLUME OF WATER FOR EACH FIXTURE.
• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.
The Sloan Royal ® and Regal ® XL Flushometers are designed to operate with 10 to 100 psi (69 to 689 kPa) of water pressure. THE MINIMUM PRESSURE
REQUIRED TO THE VALVE IS DETERMINED BY THE TYPE OF FIXTURE SELECTED. Consult fixture manufacturer for minimum pressure requirements. Most
Low Consumption water closets (1.6 gpf/6.0 Lpf) require a minimum flowing pressure of 25 psi (172 kPa).
• Straight blade screwdriver
• Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or smooth jawed spud wrench
Slimline ® Bedpan Washers
Royal BPW-1000 Standard
Royal BPW-1005 With Deoseptic Unit
Royal BPW-1010 With Retrofit Elbow
Royal BPW-1015 With Retrofit Elbow & Deoseptic Unit
Rrgal BPW-1000 XL Standard
Slimline ® Bedpan Washers for ADA Installations
Royal BPW-1100 Standard
Royal BPW-1105 With Deoseptic Unit
Royal BPW-1110 With Retrofit Elbow
Royal BPW-1115 With Retrofit Elbow & Deoseptic Unit
Royal BPW-1150 With Grab Bar Offset
Royal BPW-1155 With Grab Bar Offset & Deoseptic Unit
Regal BPW-1100 XL Standard
Regal BPW-1150 XL With Grab Bar Offset
Slimline ® Bedpan Washers — Diverter Assemblies
DV-100 Standard
DV-105 With Deoseptic Unit
DV-110 For ADA Installation
DV-115 For ADA Installation With Deoseptic Unit
DV-120 With Grab Bar Offset
DV-125 With Grab Bar Offset & Deoseptic Unit
DV-130 Replacement Model
DV-135 Replacement Model With Deoseptic Unit
PRIOR TO INSTALLATION
TOOLS REQUIRED FOR INSTALLATION
