Installation material
The indoor unit is fastened using
4 threaded rods (provided by the
customer).
In order to complete the
installation, wall plugs, trapezoidal
sheet metal supports, steel profiles,
fixing clamps for condensation
pipes (as well as laying ducts)
and connection fittings for
condensation pipes are also
required.
Selecting the installation
location
Indoor unit
The indoor unit is specifically
designed for horizontal mounting
in suspended ceilings with
Euroraster dimensions. It can
also be installed in other types of
suspended ceilings with different
dimensions.
Take into account the installation
height of the equipment by
allowing at least 258 mm for the
SV 261 and SV 351, and 298 mm
for the SV 521 and SV 681.
Outdoor component
The outdoor component is
designed for horizontal free-
standing use in outdoor areas.
It should be placed on level,
flat and firm ground. The unit
should also be secured to prevent
toppling.
The outdoor unit can be installed
both inside and outside buildings.
In the case of outdoor installation,
please follow the instructions given
below to protect the unit against
the weather.
Windbreak
Wind
Snow
The unit should be wall-mounted
in areas of heavy snowfall.
Installation should be at least
20 cm above the expected level
of snow to prevent snow from
entering the outdoor component.
An optional wall bracket is
available as an accessory.
Rain
The unit should be at least 10 cm
off the ground when mounted on
the roof or ground.
An optional floor bracket is
available as an accessory.
Sun
The liquefier on the outdoor
component radiates heat.
Exposure to direct sunlight will
further increase the temperature
of the fins and reduce the
heat output of the finned
heat exchanger. The outdoor
component should therefore be
installed as near as possible to
the north side of the building.
If necessary, take measures
to provide sufficient shade
(responsibility of customer). One
possible solution is to build a small
roof. These measures should not
affect the flow of warm outlet air.
Wind
If the unit is being installed in
windy areas, ensure that the
warm outlet air discharges in the
main wind direction. If this is not
the case it may be necessary to
install a windbreak (provided by
the customer). Ensure that the
windbreak does not adversely
affect the air intake to the unit.

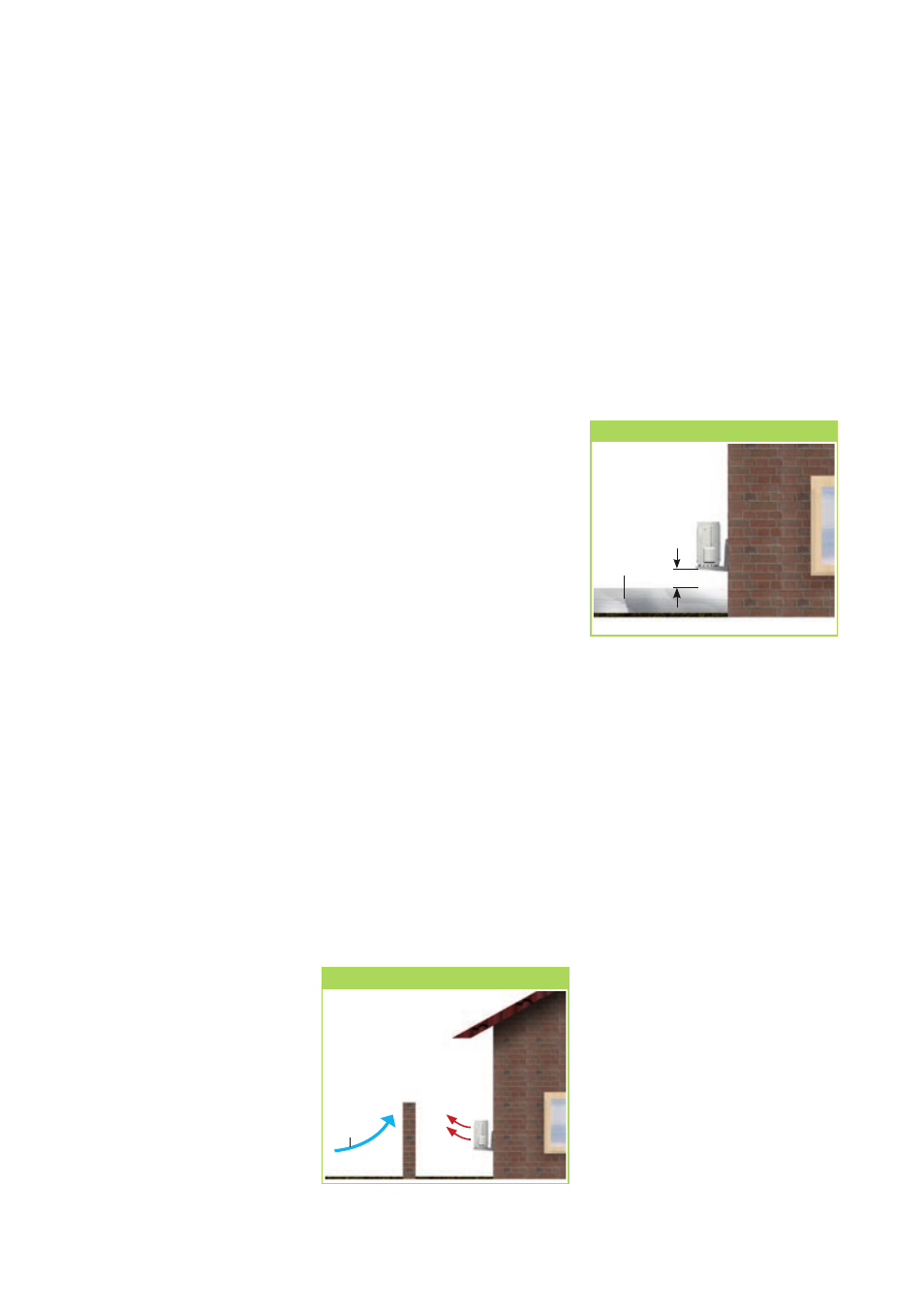

Minimum clearance to snow
20 cm
Snow
