H-Series DL Gas Fireplace
Page 15
XG0140 - 070714
Installation

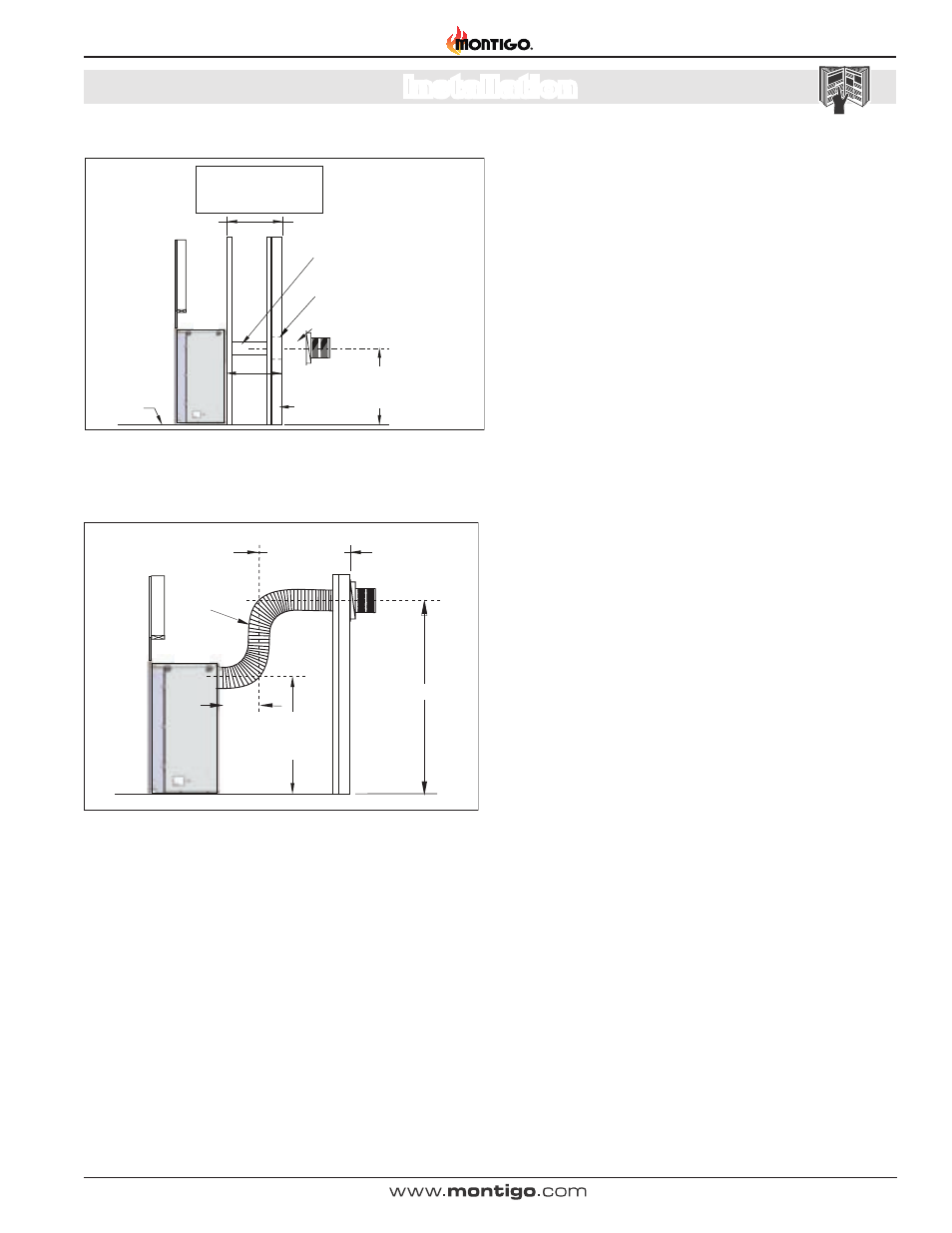

Figure 18a. H*34DL*, H38DL*, or H42DL* Rear Vented, wall mounted
Multi-elbow termination installation. The vent run must comply with the Venting
Graph for Rear vent, wall mounted terminations, Figures 15, 16 or 17.
Figure 18. H*34DL*, H38DL*, or H42DLN Straight run, Rear Vented, wall
mounted termination. The vent run must comply with the Venting Graph for Rear
vent, wall mounted terminations, Figures 15, 16 or 17.
.
18”
Max.
Flex or Rigid
Section
46"Min. H34DL*
50"Min. H38DL*
50"Min. H42DL*
18" Max.
25" H34DL*
27 3/4” H38DL*
31 1/2” H42DL*
MXT Extension
Heat
Shield
Termination
Hearth
Exterior
Wall
NOTE:
18” MAX. horizontal
run with no vertical lift.
18” MAX.
25" H34DL*
27 3/4” H38DL*
31 1/2” H42DLN (NG ONLY)
