Legrand Convia Enabled Walkerflex System User Manual
Page 10
10

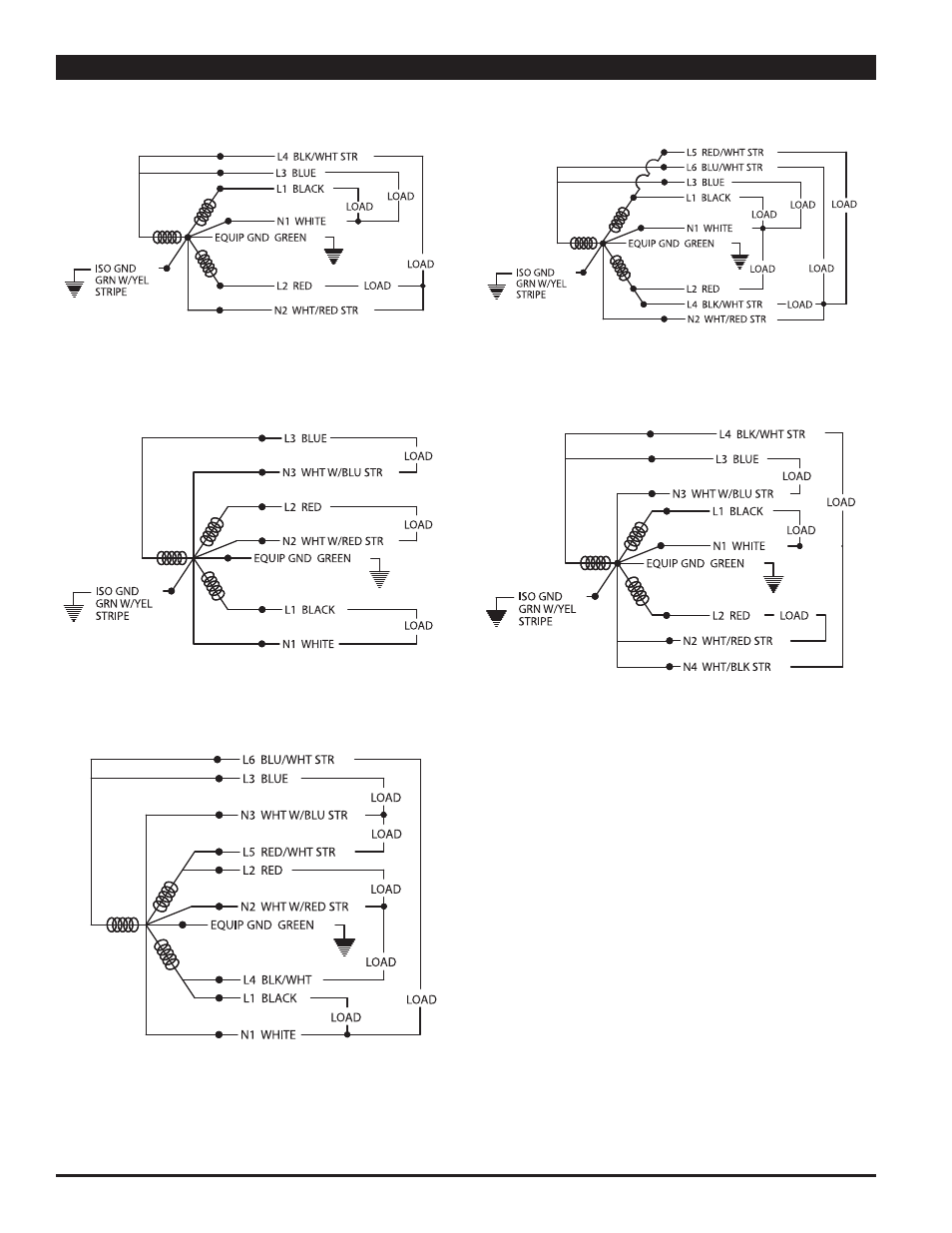

WALKERFLEX SYSTEM WIRING DIAGRAMS
(continued)
120V 20A SYSTEM FOR 4 LINE CONDUCTORS & 2
NEUTRALS CONNECTED TO AN ISOLATED GROUND
THREE-PHASE WYE
120V 20A SYSTEM FOR 6 LINE CONDUCTORS & 2
NEUTRALS CONNECTED TO AN ISOLATED GROUND
THREE-PHASE WYE
120V 20A SYSTEM FOR 3 LINE CONDUCTORS & 3
NEUTRALS CONNECTED TO AN ISOLATED GROUND
THREE-PHASE WYE
120V 20A SYSTEM FOR 4 LINE CONDUCTORS & 4
NEUTRALS CONNECTED TO AN ISOLATED GROUND
THREE-PHASE WYE
120V 20A SYSTEM FOR 6 LINE CONDUCTORS & 3
NEUTRALS CONNECTED TO A THREE-PHASE WYE
