Setting Up the Cabinet

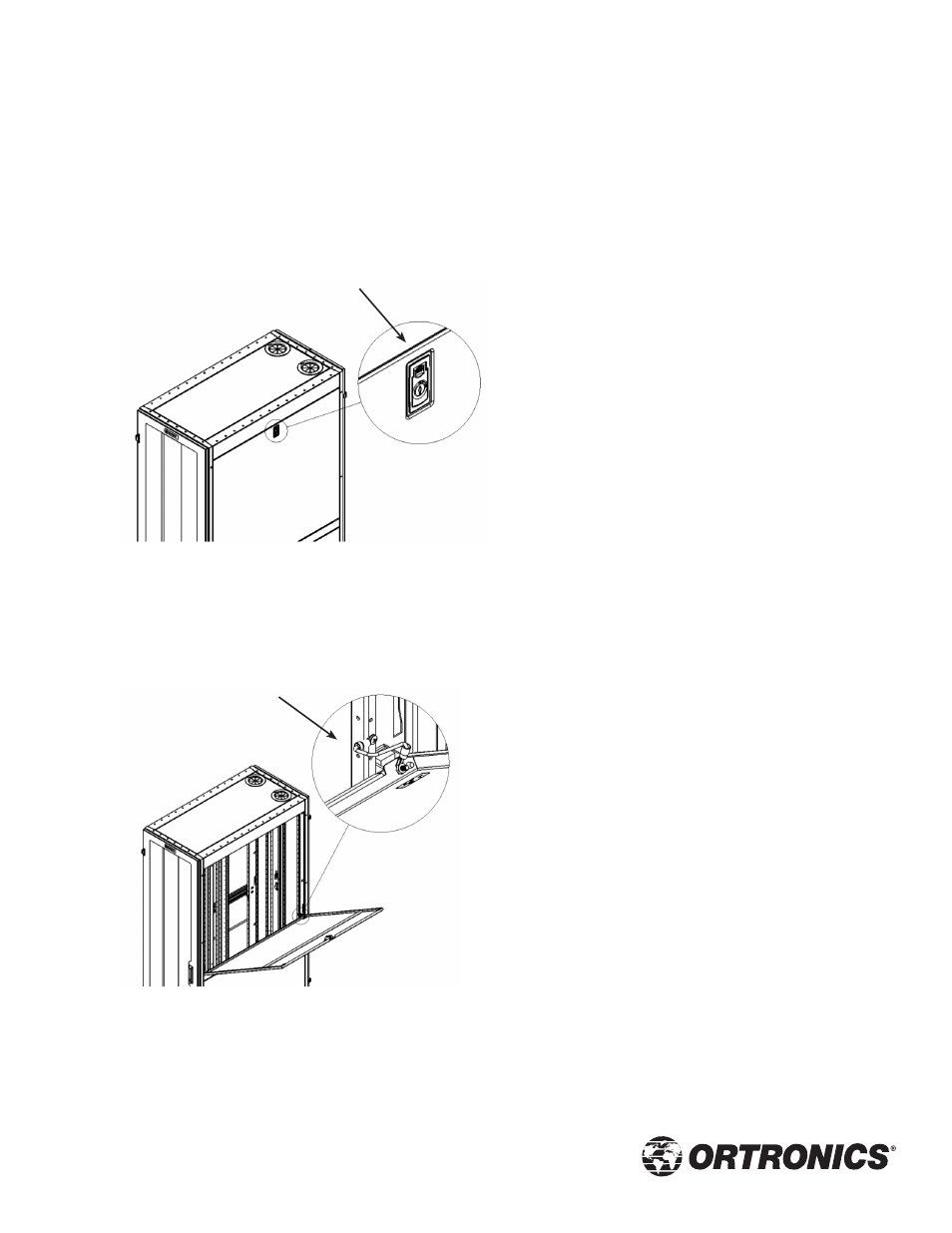

Side Panel: Removing and Installing
The Side Panels are equipped with a slide
latch. Keys are required to unlock the
slide latch.
1. Unlock the slide latch with the
provided keys.
2. Push lever (see illustration at left) to
release the latch.
3. Allow the side panel to tilt away from
the cabinet.
4. Disconnect the bonding conductor
located at the inside bottom corner of
the panel. The quick disconnect is
on the side panel side so no tools
are required.
5. Lift the panel and remove it from
the cabinet.
6. Reverse steps to install the side panel.
Bonding Conductor
Push to
release latch
Slide Latch
