Hypath inputs, Hypath input circuit examples, Hypath inputs -18 – Hypertherm MicroEDGE Pro Shape Cutting Control Rev.2 User Manual

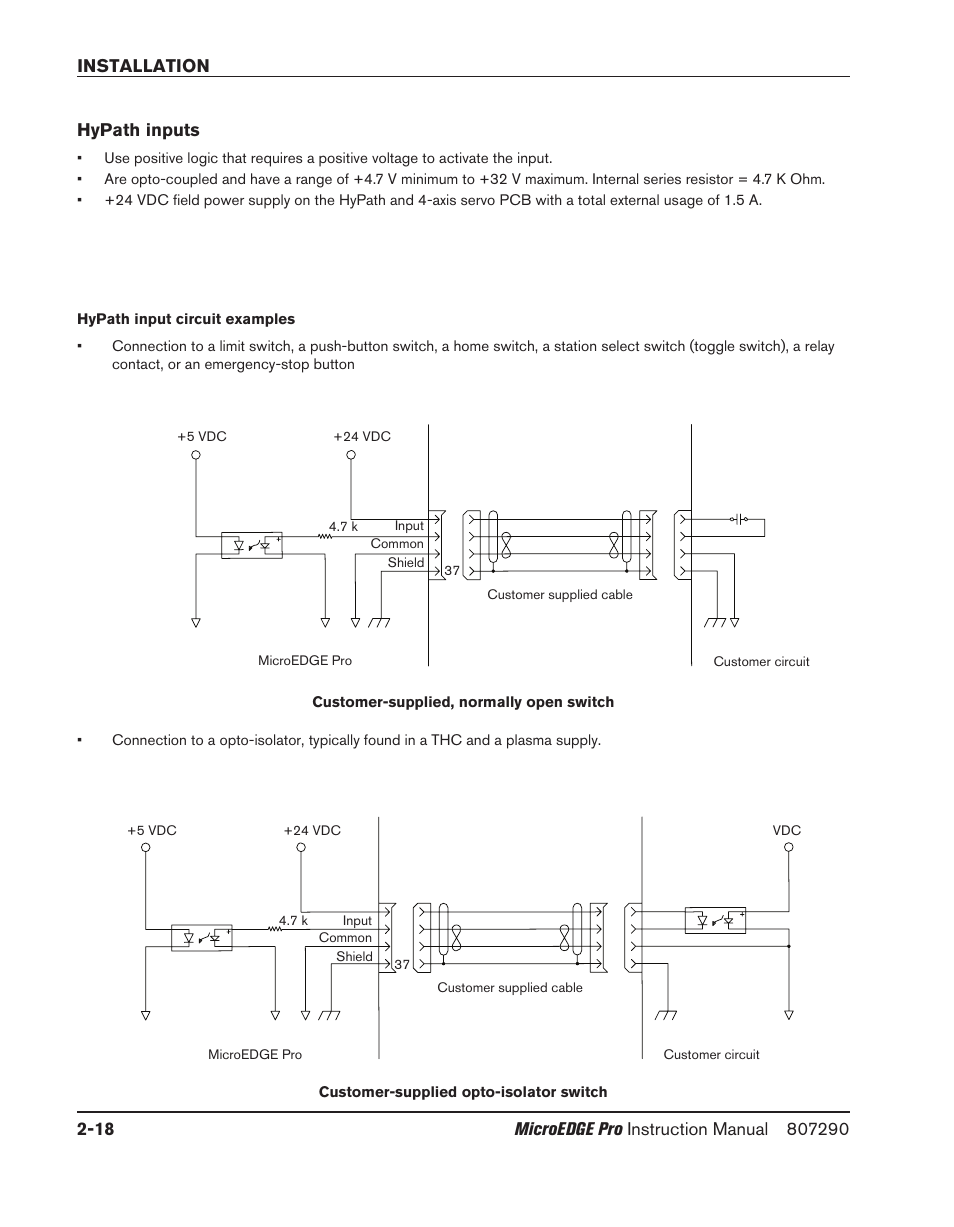

Page 66: Hypath input circuit examples -18, Installation 2-18
