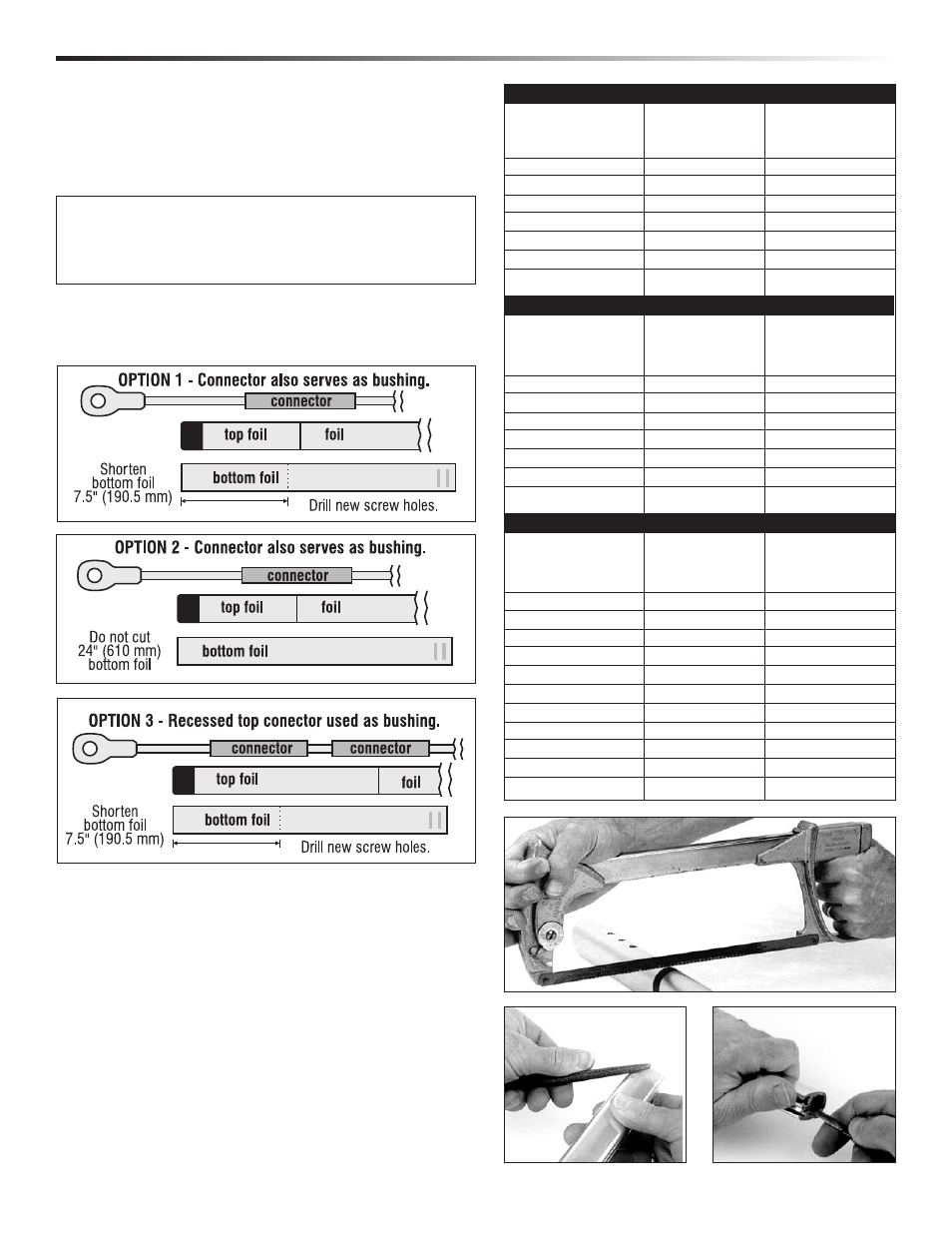

■ IF YOU HAVE A SHORT TOP FOIL
If top foil is:
Less than 15" (381 mm) with Norseman, Sta-Lok or rod eye;
Less than 19" (483 mm) with a swage marine eye.
Refer to Charts below.
Swage Eye: Recess the top connector 3 - 6" (76 - 150 mm)
to allow the top of the foil to ride on the shoulder of the
marine eye.
■ CONNECTOR & FOIL QUANTITY
Refer to the Top Foil Length Worksheet.
Unit 3/3.25 requires the same number of regular connectors
as the number of foils. (Exception: OPTION A/B = Use one
fewer regular connector than foils.) In addition, a trim cap
and long bottom connector are required.
■ CUTTING TOP FOIL
Once you have checked the top foil length, cut the top foil.
Deburr and clean all shavings from the foil.
Important: Failure to deburr or clean the inside of the foil
may cause it to seize to a connector when installing on rod.
Rough up the top 1" (25 mm) of the foil using a file or
sandpaper.
TIP: With longer top foils, a 10" (254 mm) recessed top
connector is used as a bushing for the halyard swivel.
This is a problem with shorter top foils. Do not use this
10" (254 mm) top bushing with short top foil lengths.
LINE C (pg. 8) LINE C (pg. 8) TOP FOIL
Norseman, Sta-lok Swage Eye CUT LENGTH
or Rod Eye
1" (25 mm) 1" (25 mm) 8.5" (220 mm)
2" (51 mm) 2" (51 mm) 9.5" (241 mm)
3" (76 mm) 3" (76 mm) 10.5" (267 mm)
4" (102 mm) 4" (102 mm) 11.5" (292 mm)
5" (127 mm) 12.5" (318 mm)
6" (152 mm) 13.5" (343 mm)
7" (178 mm) 14.5" (368 mm)
LINE C (pg. 8) LINE C (pg. 8) TOP FOIL
Norseman, Sta-lok Swage Eye CUT LENGTH
or Rod Eye
5" (127 mm) 5" (127 mm)
6" (152 mm) 6" (152 mm)
7" (178 mm) 7" (178 mm)
8" (203 mm) 8" (203 mm)
9" (229 mm) 9" (229 mm)
10" (254 mm) 10" (254 mm)
11" (279 mm) 11" (279 mm)
LINE C (pg. 8) LINE C (pg. 8) TOP FOIL
Norseman, Sta-lok Swage Eye CUT LENGTH
or Rod Eye
8" (203 mm) 15.5" (394 mm)
9" (229 mm) 16.5" (419 mm)
10" (254 mm) 17.5" (445 mm)
11" (279 mm) 18.5" (470 mm)
12" (305 mm) 12" (305 mm) 19.5" (495 mm)
13" (330 mm) 13" (330 mm) 20.5" (521 mm)
14" (356 mm) 14" (356 mm) 21.5" (546 mm)
15" (381 mm) 22.5" (572 mm)
16" (406 mm) 23.5" (597 mm)
17" (432 mm) 24.5" (622 mm)
18" (457 mm) 25.5" (648 mm)
TOP FOIL - OPTION 1
TOP FOIL - OPTION 2
TOP FOIL - OPTION 3
Preparation Short Top Foil/Connector and Foil Quantity/Cutting Top Foil
