■ ATTACHING STAY TO LOWER UNIT—ROD UNIT 3

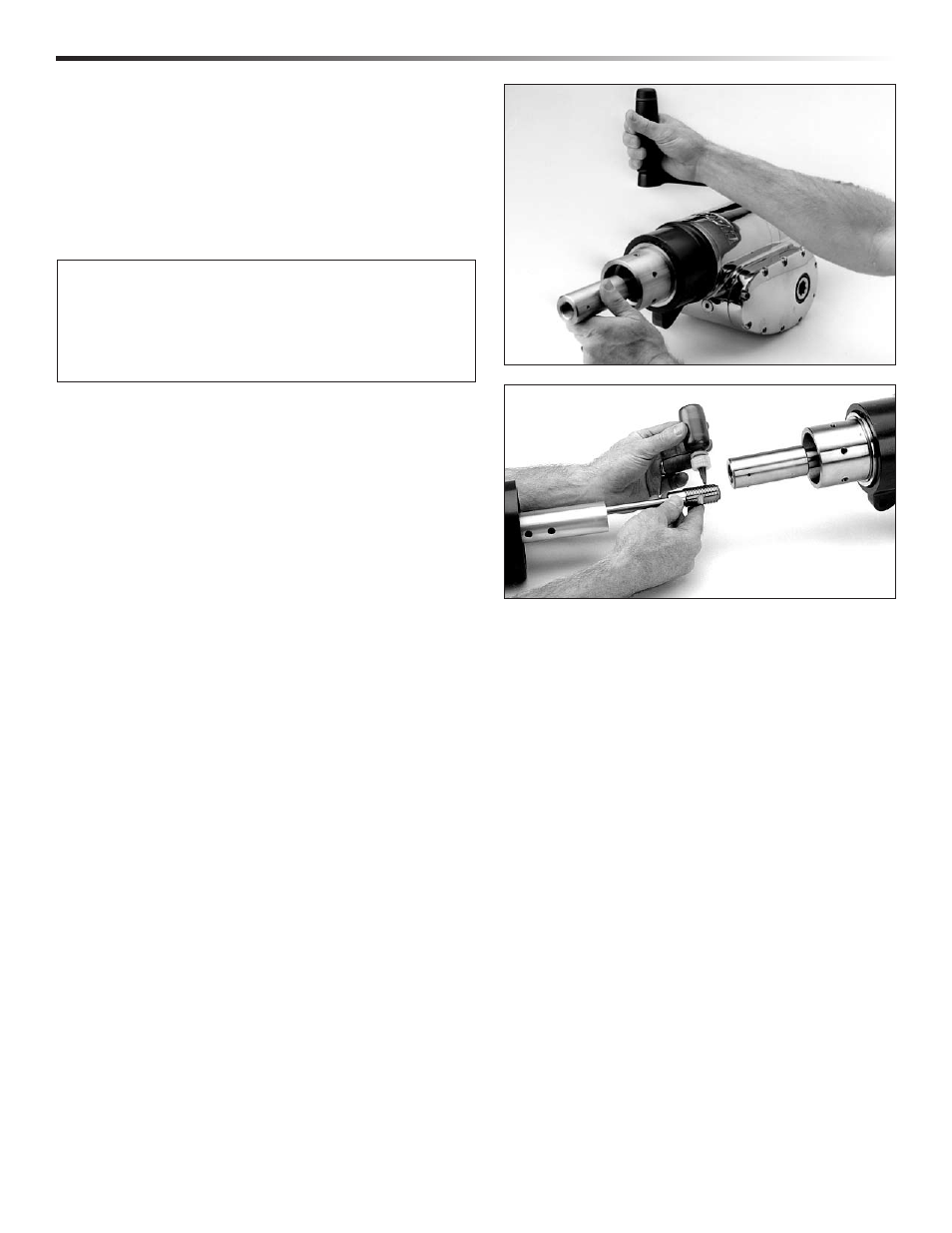

Use a winch handle to crank the terminal completely out
of lower unit.
Make sure halyard swivel and torque tube have been slipped
on foils. Then apply a few drops of red Loctite ® to threads of
nosepiece.
Screw nosepiece onto terminal until flats align with two
cotter pin holes in terminal body.
Clean excess Loctite ® from terminal body using special care
to insure that no red Loctite ® is present on threaded stud.
TIP: The flats will align with the holes when the threads of
the nosepiece are flush with the top of the terminal body.
Slowly turn the nosepiece while easing a cotter pin into
the hole. The cotter pin will slip through the terminal when
the holes align with the flats. Insert the two cotter pins and
spread.
Assembly Attach Stay—Rod Unit 3
