April 2000 Hydraulic 3/3.25 11

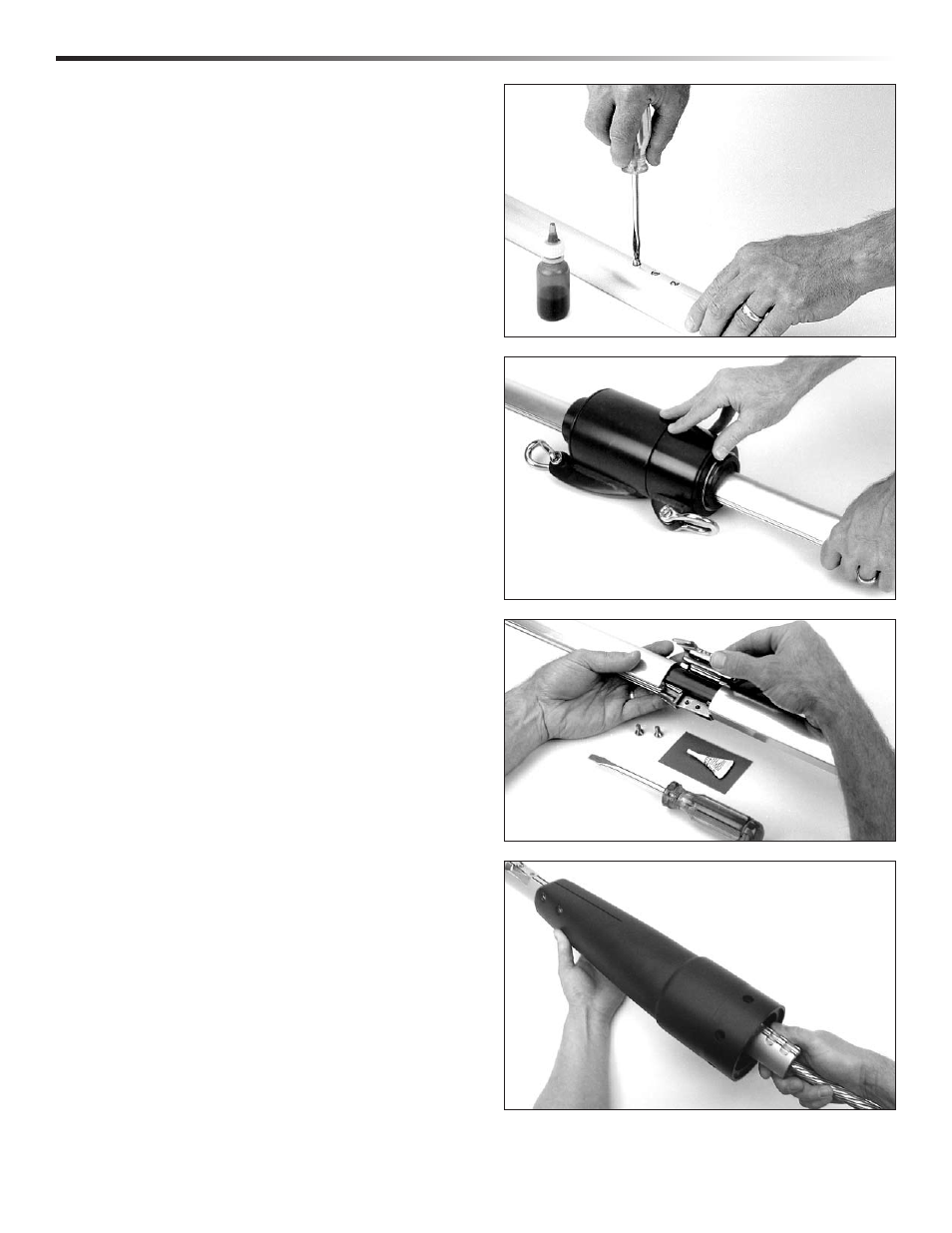

Coat three foil screws with red Loctite ® .
Screw them into connector until tight.
Continue assembly.
Slide halyard swivel onto foil, tall end up.
Install feeder screws toward bottom, using blue Loctite ®
on screws.
Sta-Lok
® : For easier installation, push the bottom foil completely
over the bottom connector to expose as much wire as possible.
Slide torque tube onto foils.
Assembly Foils
