Greenheck Ceiling Radiation Dampers (826252) - Manual (Page 30)

Connection and Operation of Thermostat (RRL2)
RRL2 - Dampers will be supplied with a thermostat-type temperature response device, as a standard. The device is
B33- SFTFUUBCMFMJOLEFWJDF
XIJDIPOMZJODPSQPSBUFTPOFUIFSNPTUBUBOEUIFSFGPSFUIFEBNQFSSFNBJOTDMPTFEBT
TPPOBTJUTTFOTPSUFNQFSBUVSFJTSFBDIFE5IF33-EPFTOPUDPOUBJOCMBEFJOEJDBUJPOTXJUDIFT3FGFSUP'JHGPS
XJSJOHPGUIF33-UIFSNPTUBU

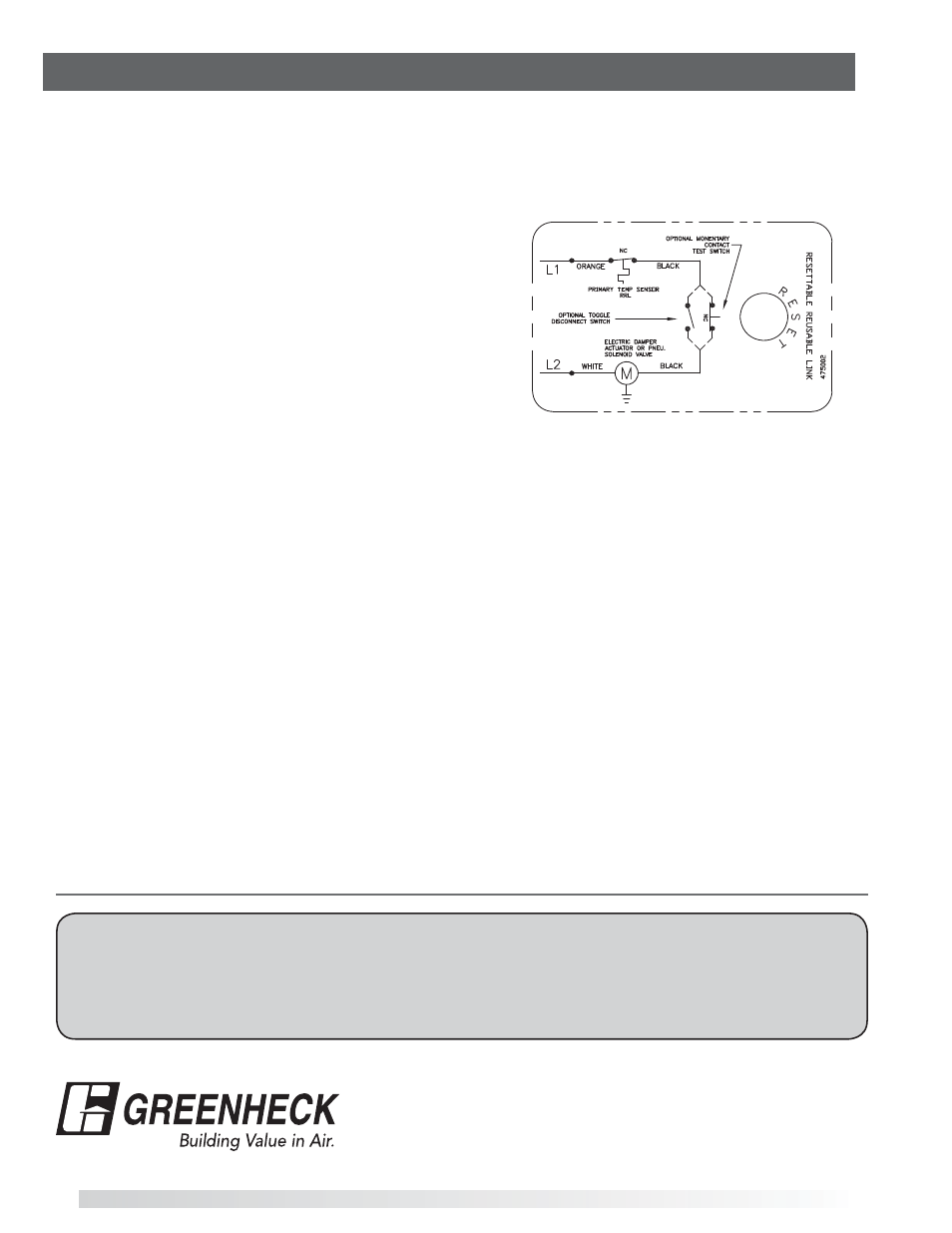

Figure 9
RATINGS
Integral Switch Type: Single Pole, double throw
Electrical Capacity: 10 Amps, 1/3 hp, 120 or 240 Vac
1/2 Amp, 125 Vdc;
1/4 Amp 250 Vdc
5 Amps, 120 Vac “L” ( lamp
load)
1.0 Amps, 24 Vac
1.5 Amps, 24 Vdc
Temperature Limit: 165° F ( standard primary sensor )
212° F ( optional primary sensor)
