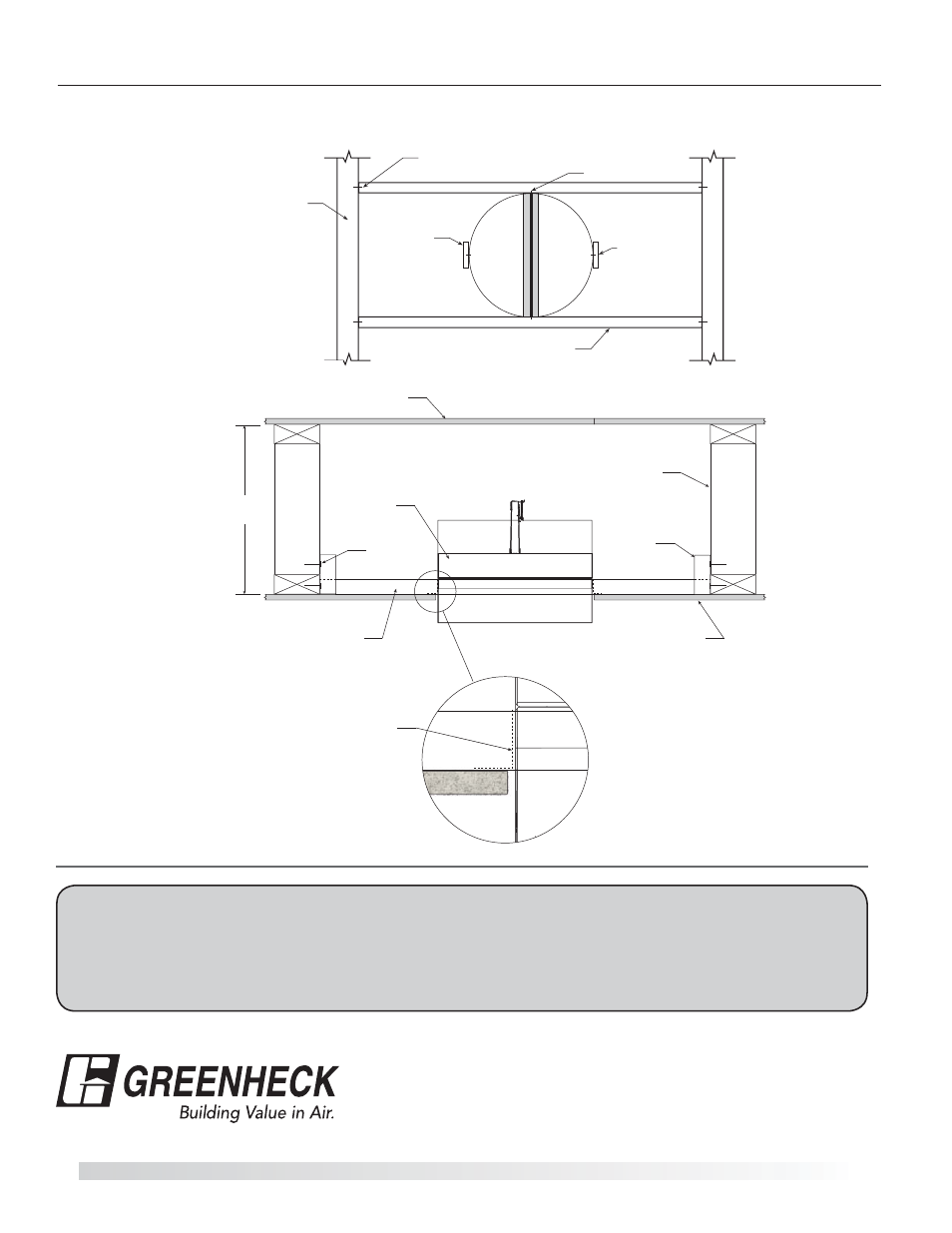

Dampers Installed In Gypboard Ceiling (cont.)
Wood framing
member or joist
#8 Tek Screw
or 3/16 in. Dia.
Steel Rivet
1 in. x 1/2 in. x 20 Ga.
Minimum Galv.
Mounting Angle
(typical)
1 in. x 1/2 in.x 20 Ga.
Minimum Galv.
Mounting Angle (3
in. Long Minimum)
#6 Penny Nail or #8 Screw
#8 Screw
Figure 3
Figure 4
Ceiling
Radiation
Damper 12 in.
Min.
Roof/Floor
Construction
Wood framing
member or joist
#6 Penny Nail
or #8 Screw
(typical)
1 in. x 1/2 in.x 20 Ga.
Minimum Galv.
Mounting Angle
3 in. Leg
(typical)
1 in. x 1/2 in. x 20
Ga. Minimum
Galv. Mounting
Angle (3 in. Long
Minimum)
5/8 in. Gypsum Wallboard
t$3%8)
3FW
4FQUFNCFS $PQZSJHIUª(SFFOIFDL'BO$PSQPSBUJPO
As a result of our commitment to continuous improvement, Greenheck reserves the right to change specifications
without notice.
Specific Greenheck product warranties are located on greenheck.com within the product area tabs and in the
Library under Warranties.
®
